QRUBI Unit Dasar dan Layanan untuk QRQC

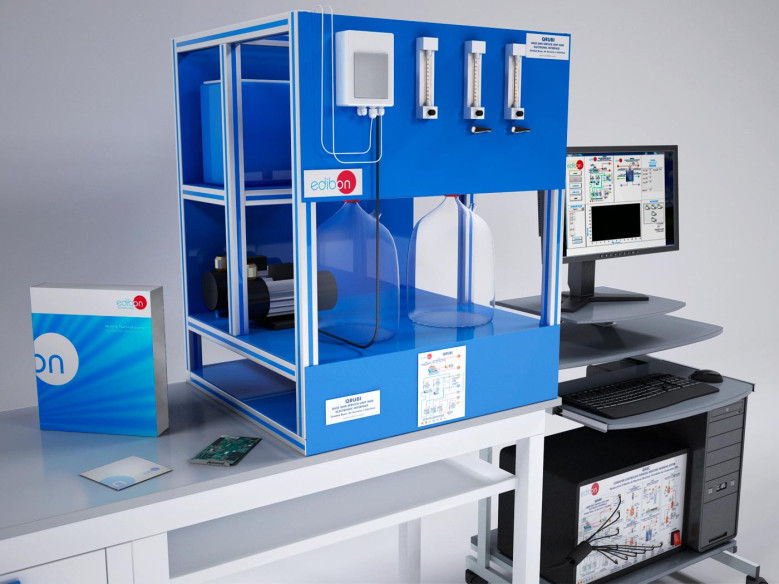

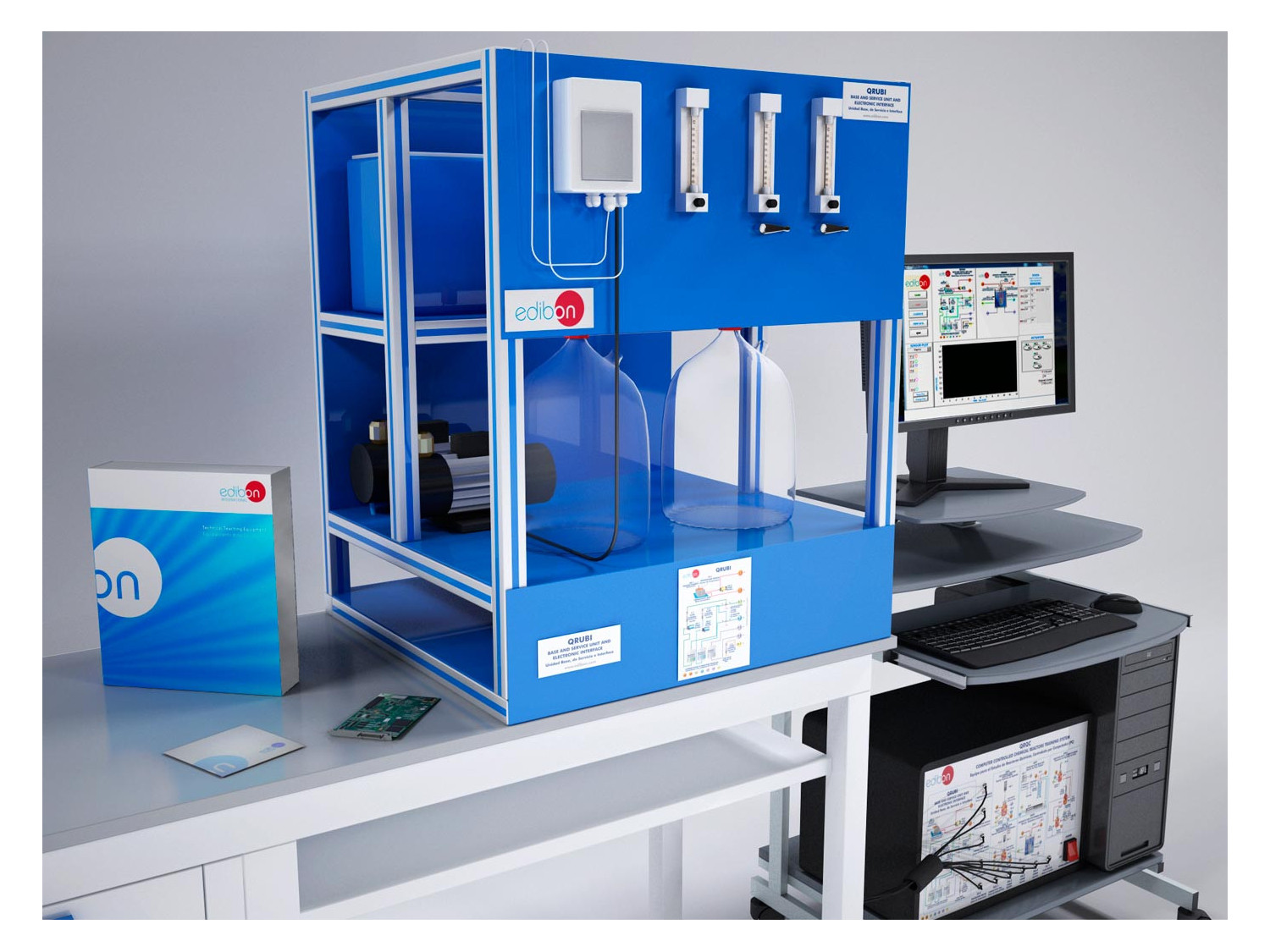

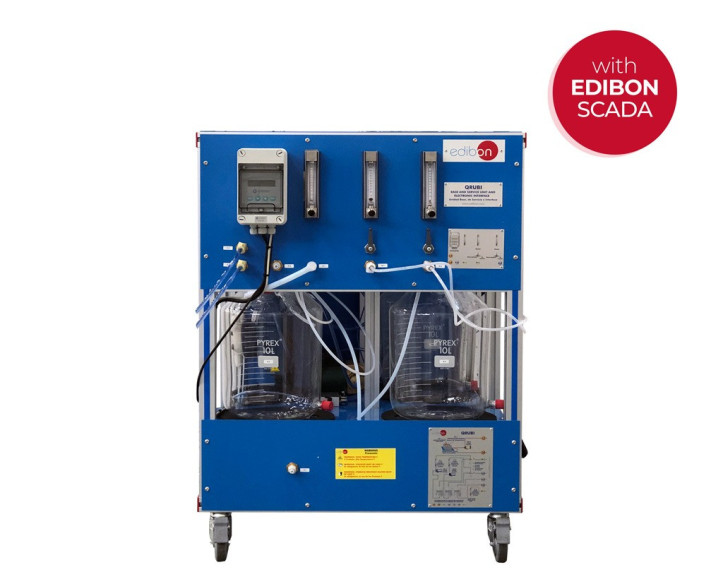

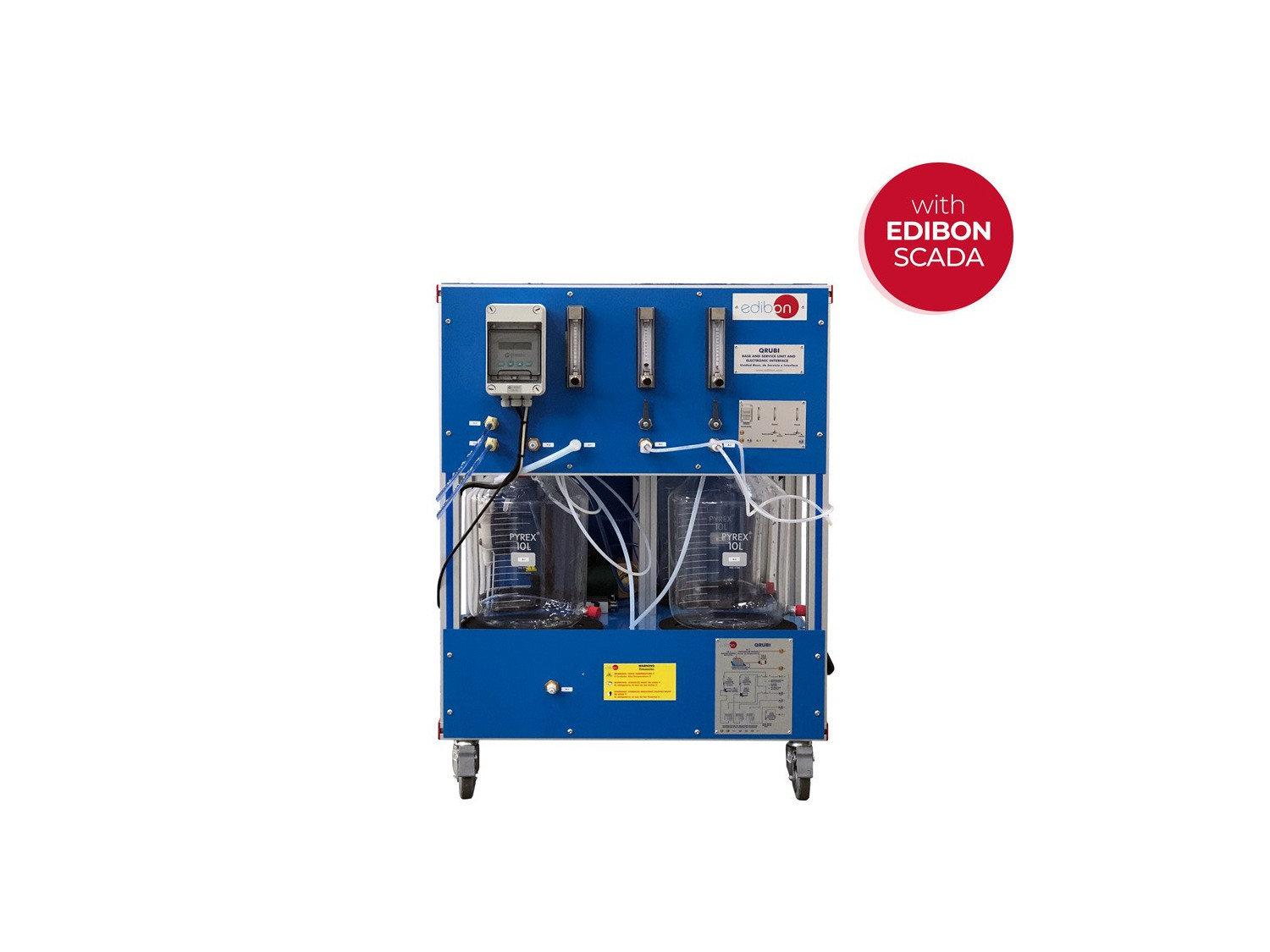

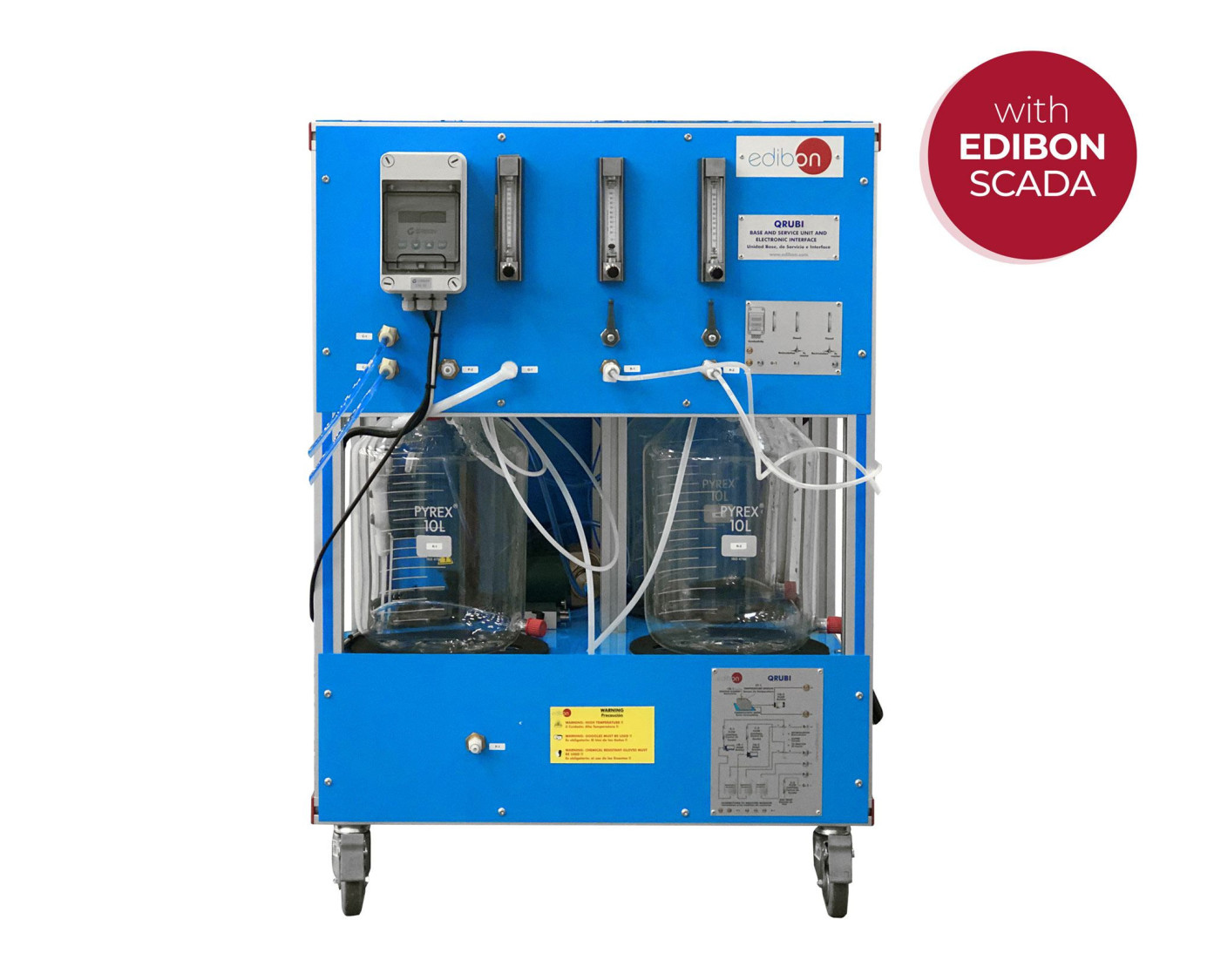

The Base Service Unit, "QRUBI", provides the necessary elements for the operation of the different reactor modules.

It performs the following functions:

• Liquid reagent feeding: comprised of two 10-liter glass tanks, two dosing pumps with a capacity of up to 7 liters per hour, and all necessary connections.
• Gas feeding: consisting of a flow meter, manual regulation valve, and all necessary connections. This allows for the addition of gaseous reagents to the reactor or the introduction of an inert gas.
• Temperature control: comprising a thermostatic bath and a circulation pump.
• Product collection system: Enables the quick and easy transfer of products obtained in the reactors to the base module and their deposition in a 10-liter glass tank.
• Reaction monitoring system: consists of a conductivity cell and a conductivity meter installed on the front panel of the base module.
• This unit allows for reagent feeding, product collection, and temperature control in reactors with a volume of up to 2 liters or more.

These Computer Controlled Units are supplied with EDIBON Computer Control System (SCADA), and includes: The unit itself + a Control Interface Box + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.
