ACCELERATION OF GEARED SYSTEM UNIT - MAE

SISTEM INOVATIF

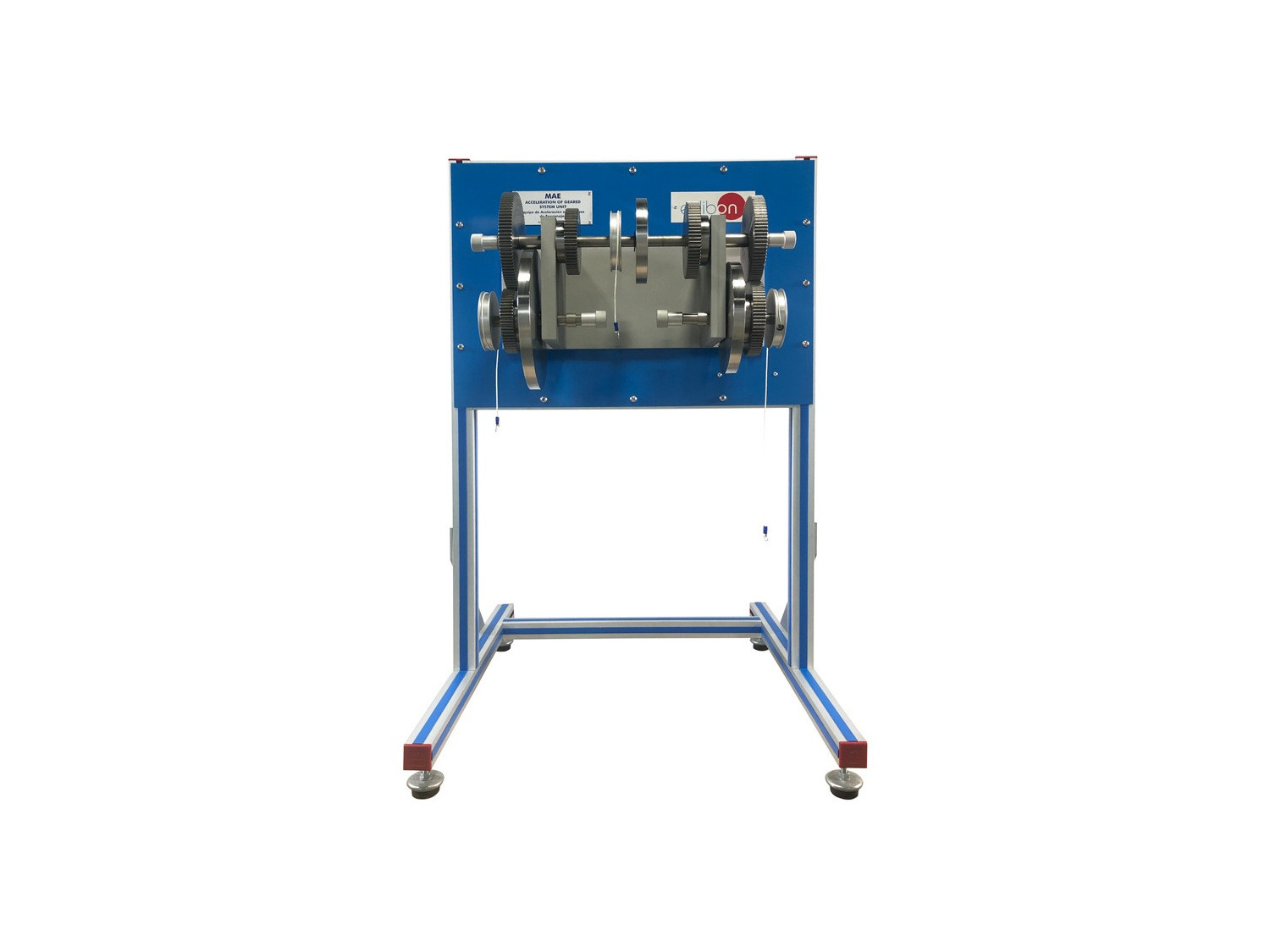

The Acceleration of Geared Systems Unit, "MAE", designed by EDIBON, mainly consists of a gear train with three shafts, which are employed specially to transfer rotating motion in reality.

Lihat uraian umum
Katalog Katalog
Spesifikasi Kontes
Meminta informasi

Ekspansi

ICAI

Perangkat Lunak Pengajaran Berbantu Komputer Interaktif
MSAC

Sistem Pencacahan dan Pengendalian Modular

Laboratorium

7TV
 Laboratorium Mekanika, Otomotif dan Material untuk Pendidikan Teknik dan Vokasi
7HE
 Laboratorium Mekanika, Otomotif dan Material Pendidikan Tinggi

BERITA TERKAIT

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Baca lebih lanjut
NEW Basic Mechanics course
NEW Basic Mechanics course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course Basic Mechanics and learn about #forces and vectors. #DiscoverEdibon #Engineering.
Baca lebih lanjut

GAMBARAN UMUM

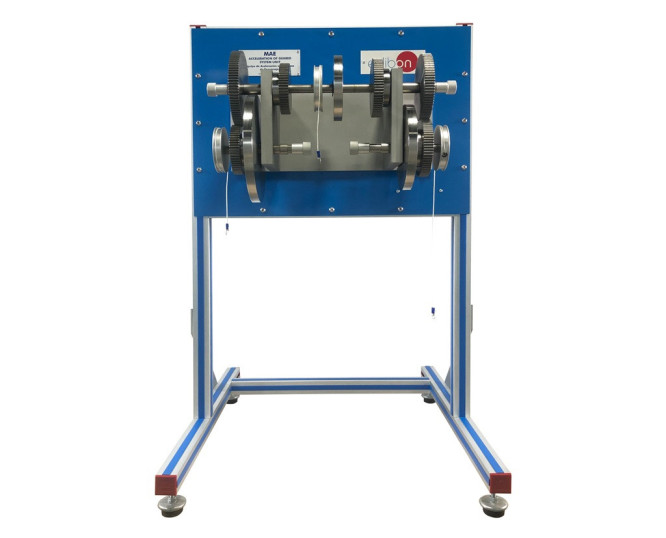

The "MAE" unit includes six gears. Two of them can have another position in the shafts to vary the gear ratio, allowing to obtain a different moment of inertia and, therefore, to accelerate the system.

Additionally, there are three masses of inertia, one per shaft. The position of these discs will modify the total moment of inertia and the acceleration of the system too.

There is one pulley in each shaft. Different masses are hung from these pulleys to observe how the acceleration of the gear system varies. Depending on the position from which the mass is hung, the acceleration of the gears and the moment of inertia, will be modified.

To be able to calculate the total moment of inertia and the acceleration of the system, it is neccessary to know the time required by the mass hung from the pulley to travel a given distance.

The Acceleration of Geared Systems Unit, "MAE", designed by EDIBON, allows to perform tests to calculate the moment of inertia of a gear train system.

LATIHAN DAN PRAKTEK PEDOMAN

LATIHAN PRAKTIS YANG DIANDAL TERMASUK DALAM PANDUAN

  1. Determination of the moment of inertia of a single transmission shaft. Determination of the minimum mass and acceleration required to move the system.
  2. Determination of the moment of inertia of a simple gear train. Determination of the minimum mass and acceleration required to move the system.
  3. Determination of the moment of inertia of a triple gear train. Determination of the minimum mass and acceleration required to move the system.
  4. Determination of the moment of inertia of a triple gear train. Determination of the minimum mass and acceleration required to move the system.
  5. Determination of the moment of inertia of a single transmission shaft. Determination of the minimum mass and acceleration required to move the system.
  6. Determination of the moment of inertia of a triple gear train. Determination of the minimum mass and acceleration required to move the system.
