INVERTED PENDULUM CONTROL MODULE - RYC-PI

SISTEM INOVATIF

The PID Control and Regulation of an Inverted Pendulum Unit, "RYC-PI", de­signed by EDIBON, enables the practical study of automatic control systems through the control of the linear position of a moving cart and the stabilization of a pendulum in the upright position.

Lihat uraian umum
Katalog Katalog
Spesifikasi Kontes
Meminta informasi

Ekspansi

ICAI

Perangkat Lunak Pengajaran Berbantu Komputer Interaktif
EMAK

Kit EDIBON untuk Matlab

Laboratorium

6TV
 Laboratorium Mekatronika dan Otomasi untuk Pendidikan Teknik dan Vokasi
6HE
 Laboratorium Mekatronika dan Otomasi Pendidikan Tinggi
2TV
 Laboratorium Elektronika Pendidikan Teknik dan Kejuruan
2HE
 Laboratorium Elektronika untuk Perguruan Tinggi
11PTC
 Laboratorium Pusat Pelatihan Perminyakan

BERITA TERKAIT

The future of Process Control: Innovation, training, and the industry 4.0 revolution
The future of Process Control: Innovation, training, and the industry 4.0 revolution
Automation and process control have been fundamental pillars in the evolution of both industry and scientific research. With the advent of Industry 4.0, the integration of new technologies has driven an unprecedented transformation in the way industrial and research systems operate, optimize...
Baca lebih lanjut
What is Process Control, and Why is It Essential in Modern Industry?
What is Process Control, and Why is It Essential in Modern Industry?
Today, automation and efficiency are key factors in industrial and scientific development. Process control plays a crucial role in this context by enabling the monitoring, regulation, and optimization of industrial systems and processes, ensuring they operate efficiently, safely, and consistently.
Baca lebih lanjut
EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Baca lebih lanjut
Completion of the Small Laboratory Equipment Repair Course
Completion of the Small Laboratory Equipment Repair Course
On December 1st, the Repair Course for Small Laboratory Equipment, taught by our engineers at the EDIBON facilities, was completed, lasting 4 days. The attendees, (Laboratory technicians and maintenance of the Rey Juan Carlos University of Madrid) had the opportunity to perform multiple...
Baca lebih lanjut
Completion of the Course of Instrumentation, Regulation and Control in Laboratories
Completion of the Course of Instrumentation, Regulation and Control in Laboratories
On October 19th, the Course on Instrumentation, Regulation and Control in Laboratories, taught by our engineers in these facilities, using EDIBON units, was completed and aimed at learning the control of the conditions of a laboratory process. The attendants, (12 laboratory technicians and...
Baca lebih lanjut

GAMBARAN UMUM

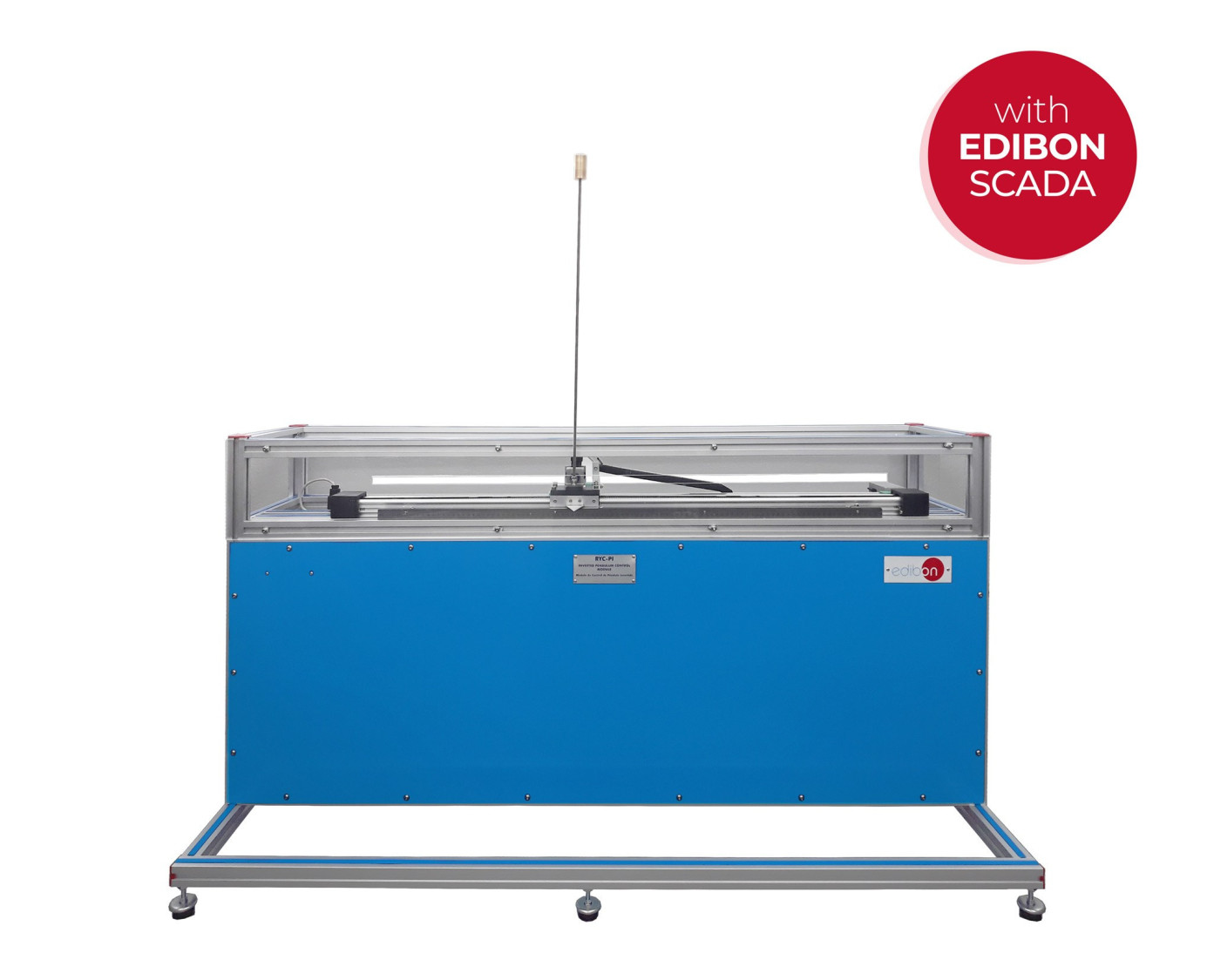

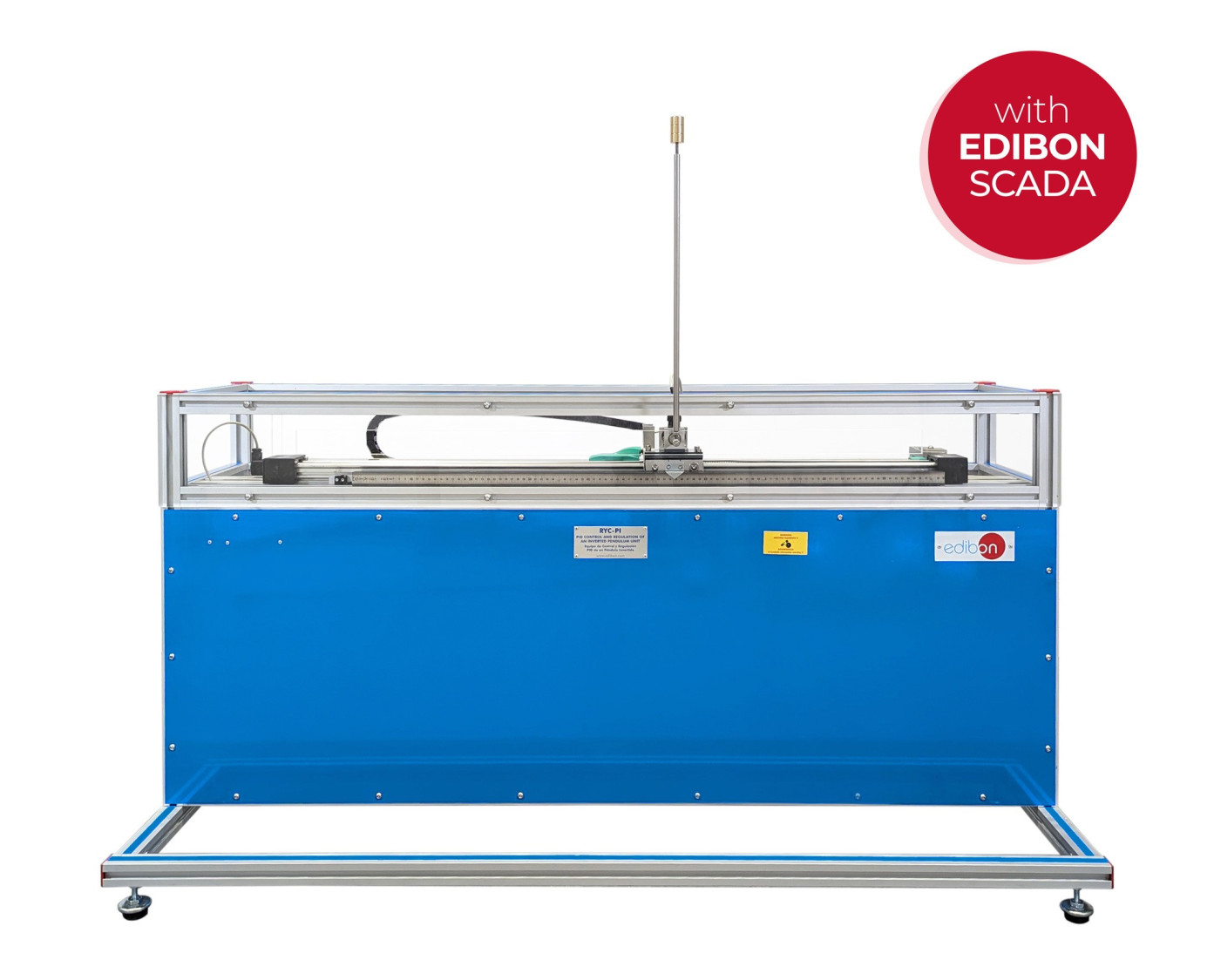

The PID Control and Regulation of an Inverted Pendulum Unit, "RYC-PI", de­signed by EDIBON, enables the practical study of automatic control systems through the control of the linear position of a moving cart and the stabilization of a pendulum in the upright position.
