TAAUC Peralatan AC Mobil, Dikendalikan dari Komputer (PC)

9.2.- PEMANASAN, VENTILASI, AC DAN AIR PANAS
COMPUTER CONTROLLED AUTOMOBILE AIR CONDITIONING UNIT - TAAUC

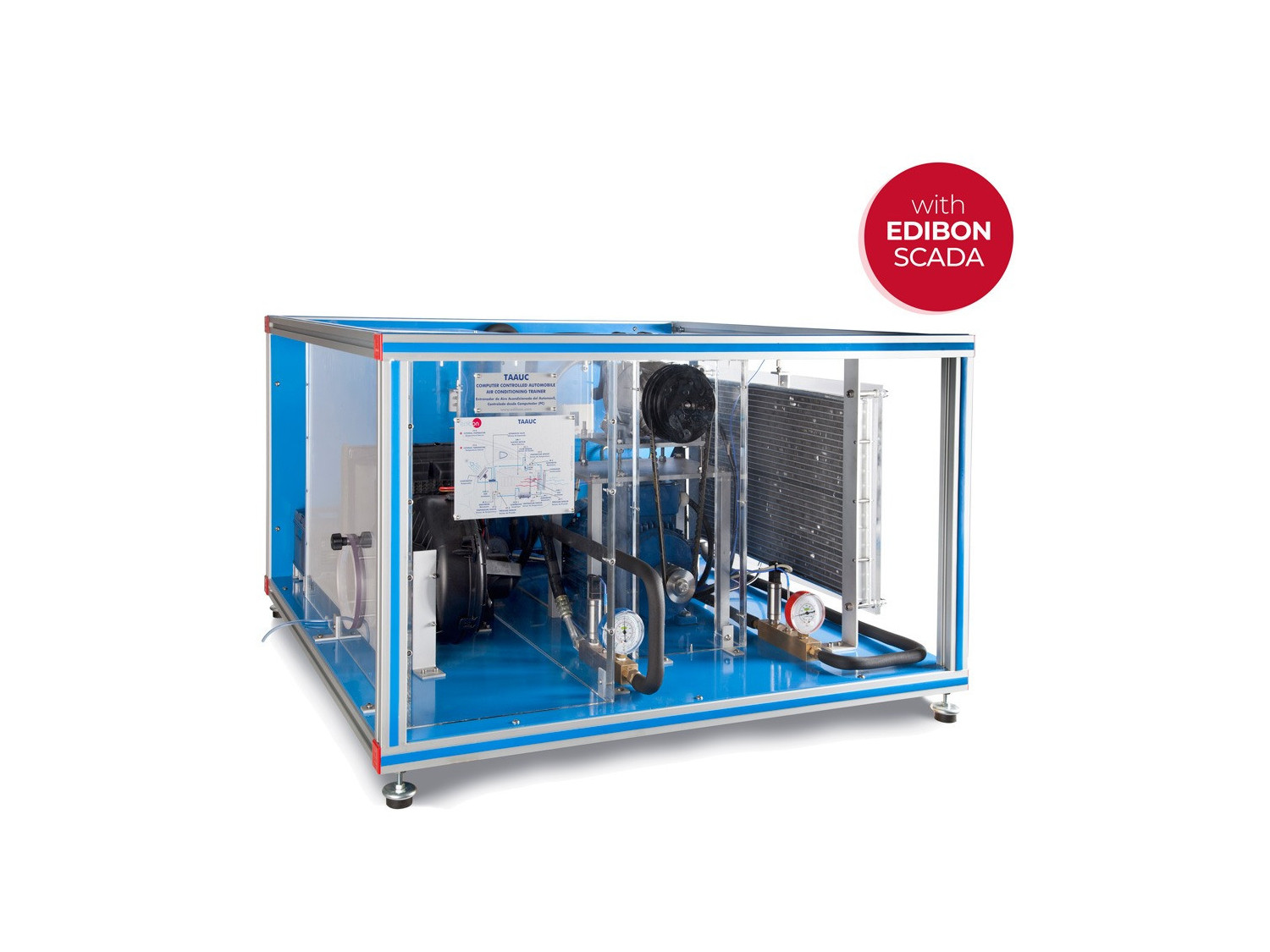

Unit: TAAUC. Computer Controlled Automobile Air Conditioning Unit

COMPUTER CONTROLLED AUTOMOBILE AIR CONDITIONING UNIT - TAAUC

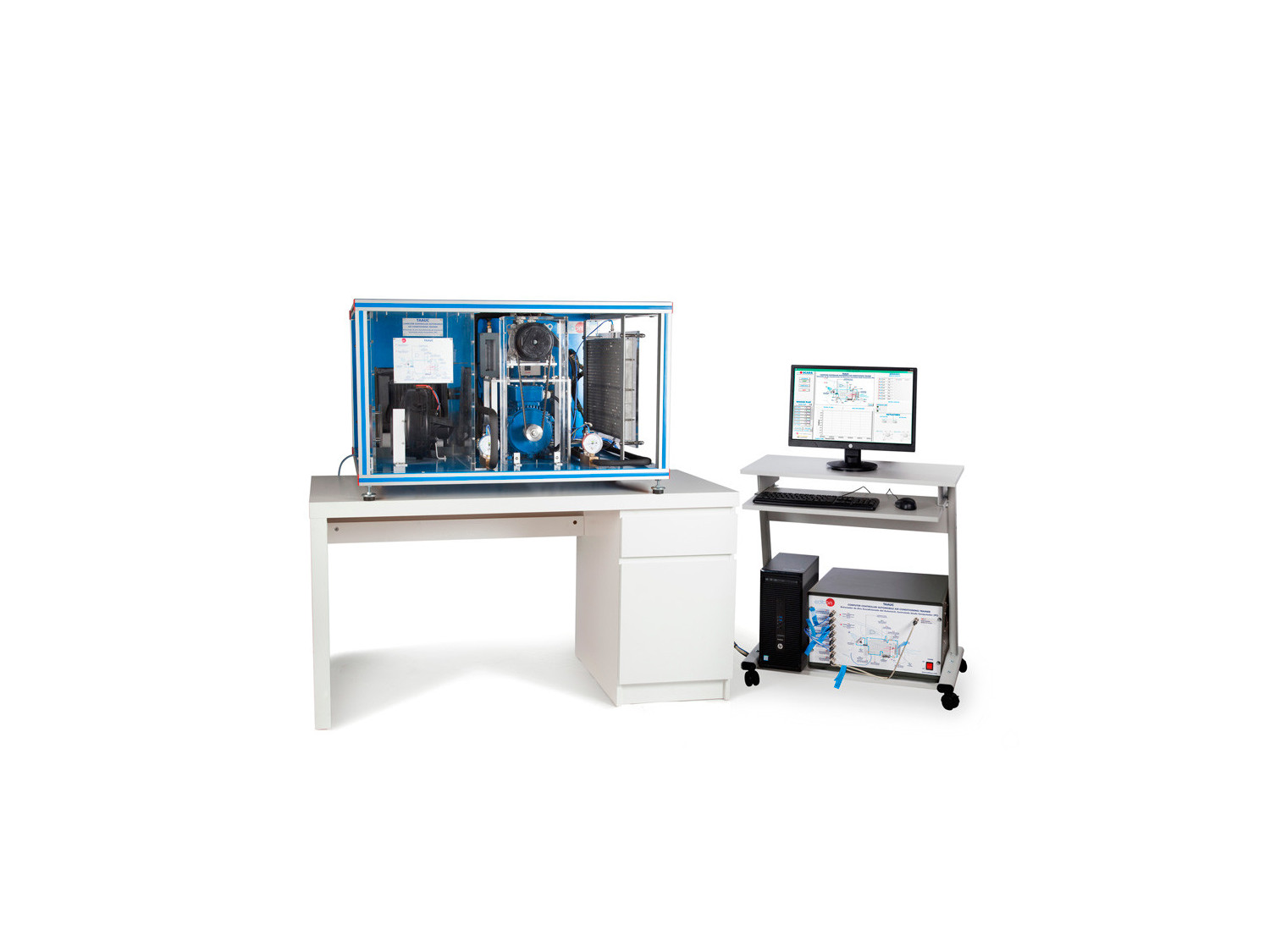

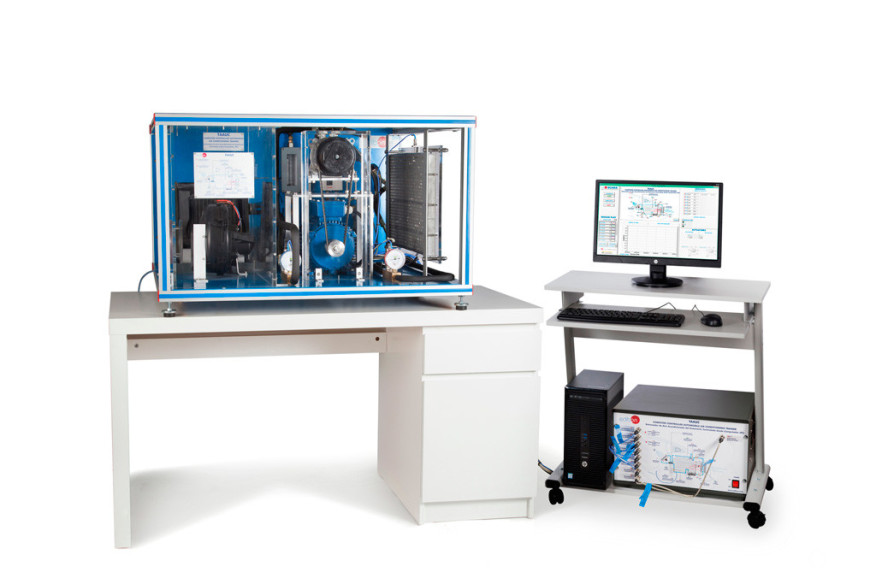

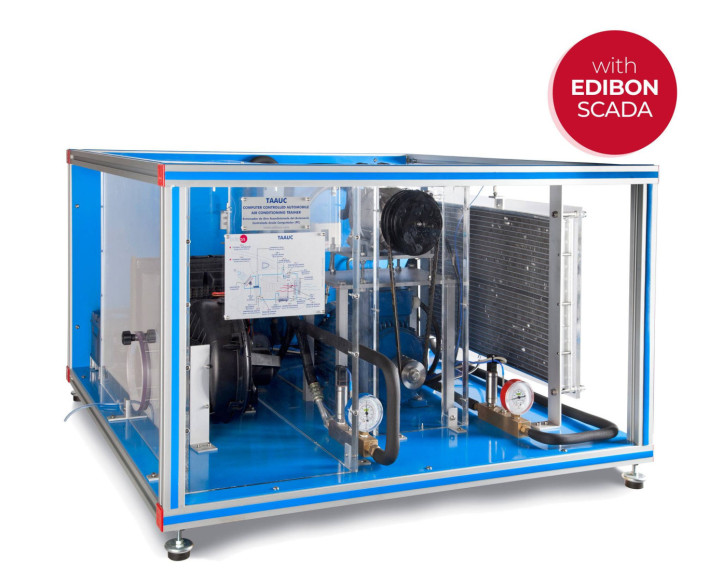

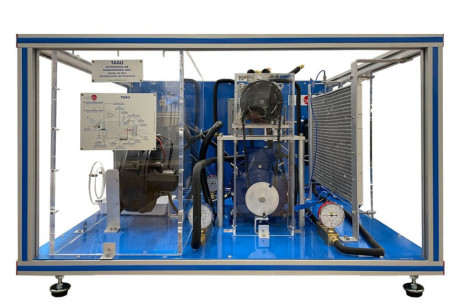

Complete TAAUC unit

COMPUTER CONTROLLED AUTOMOBILE AIR CONDITIONING UNIT - TAAUC

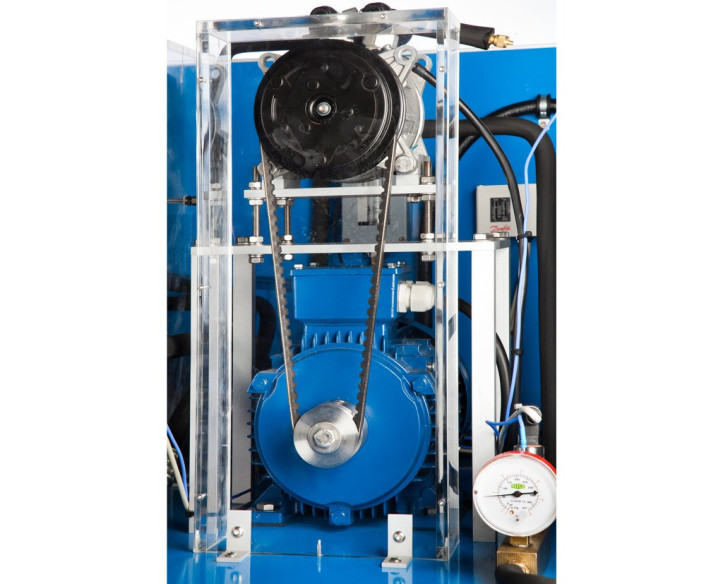

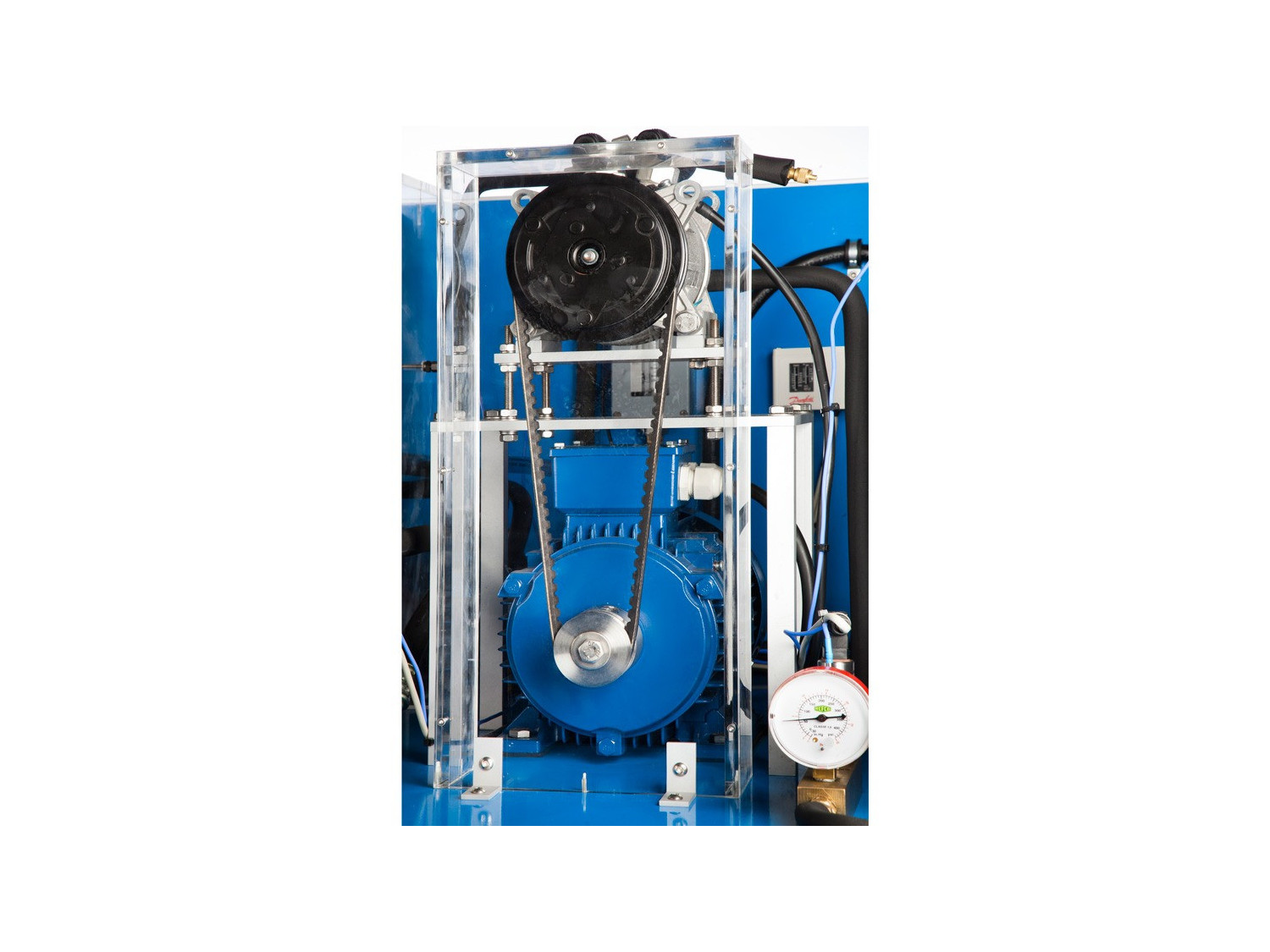

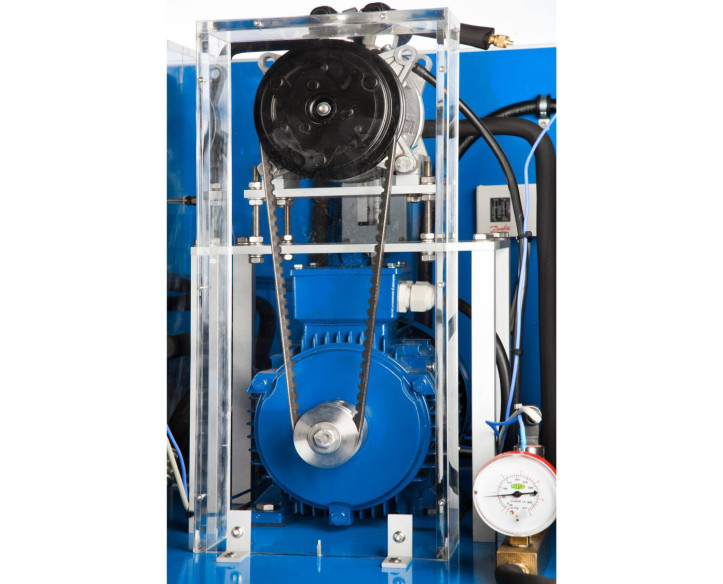

Unit details

COMPUTER CONTROLLED AUTOMOBILE AIR CONDITIONING UNIT - TAAUC

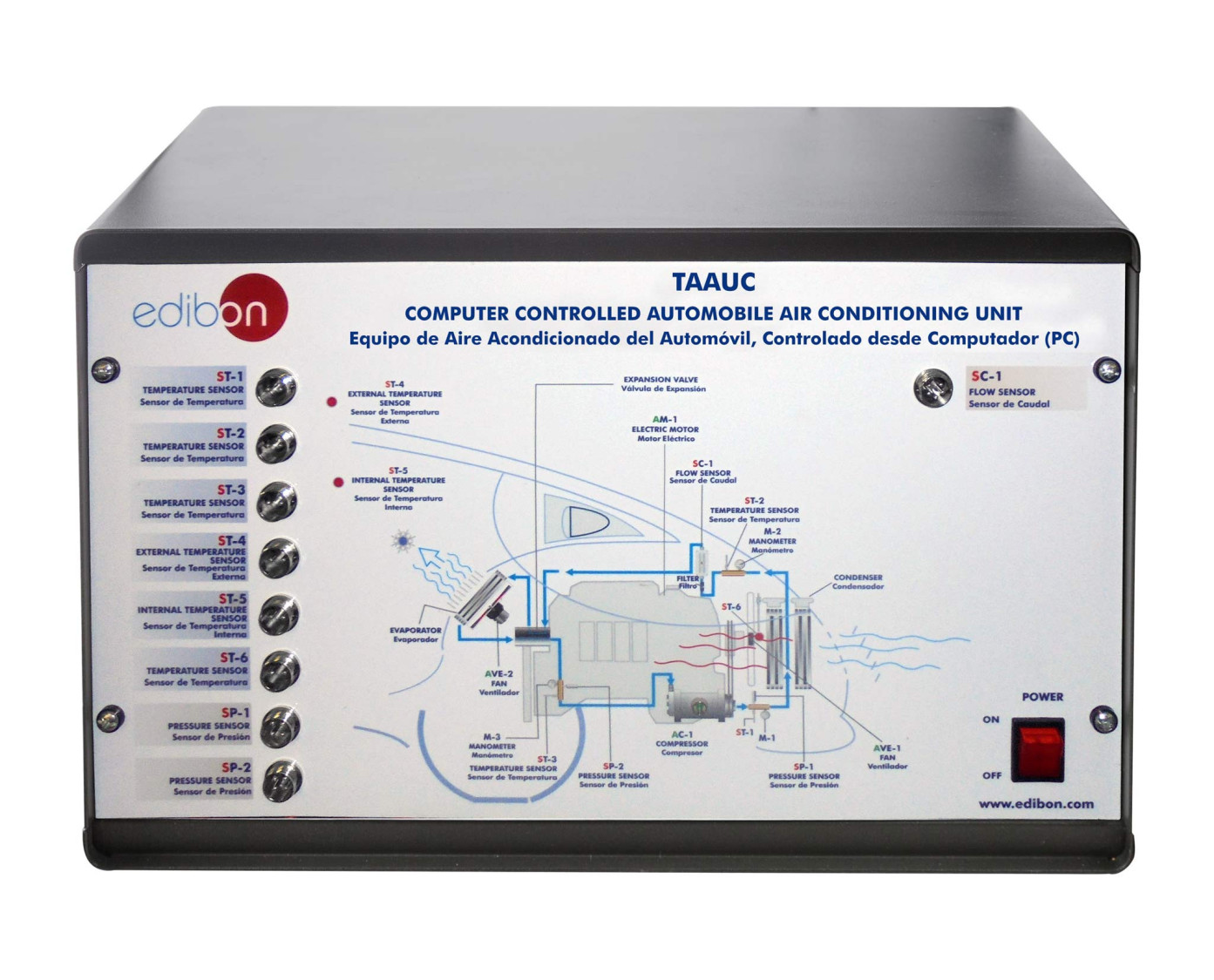

TAAUC/CIB. Control Interface Box: The Control Interface Box is part of the SCADA system

COMPUTER CONTROLLED AUTOMOBILE AIR CONDITIONING UNIT - TAAUC

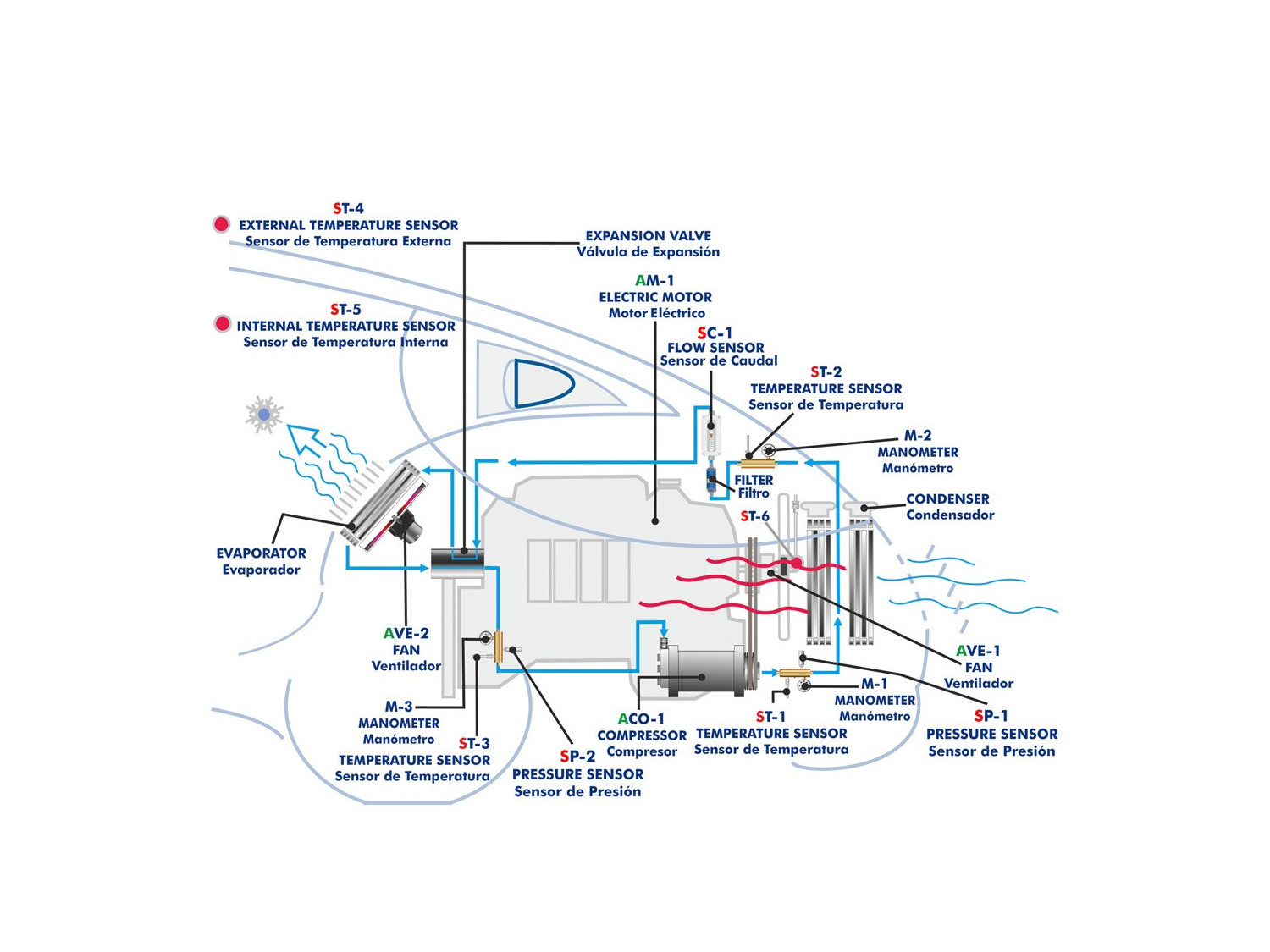

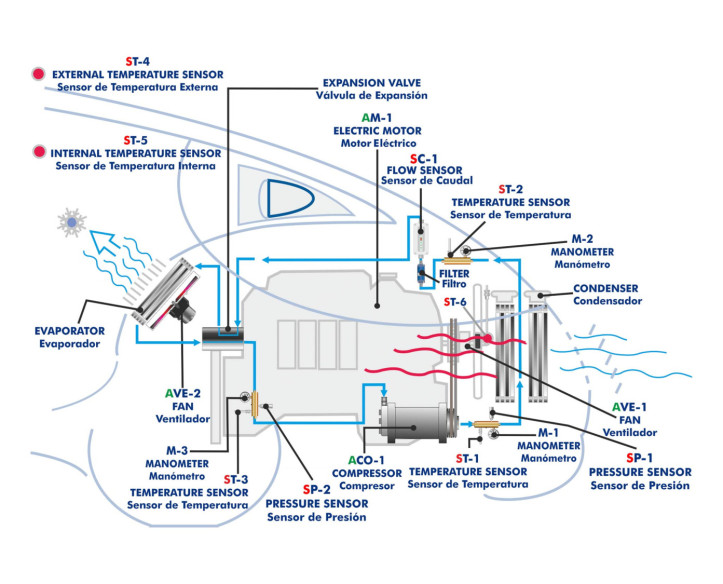

Process diagram and unit elements allocation

COMPUTER CONTROLLED AUTOMOBILE AIR CONDITIONING UNIT - TAAUC

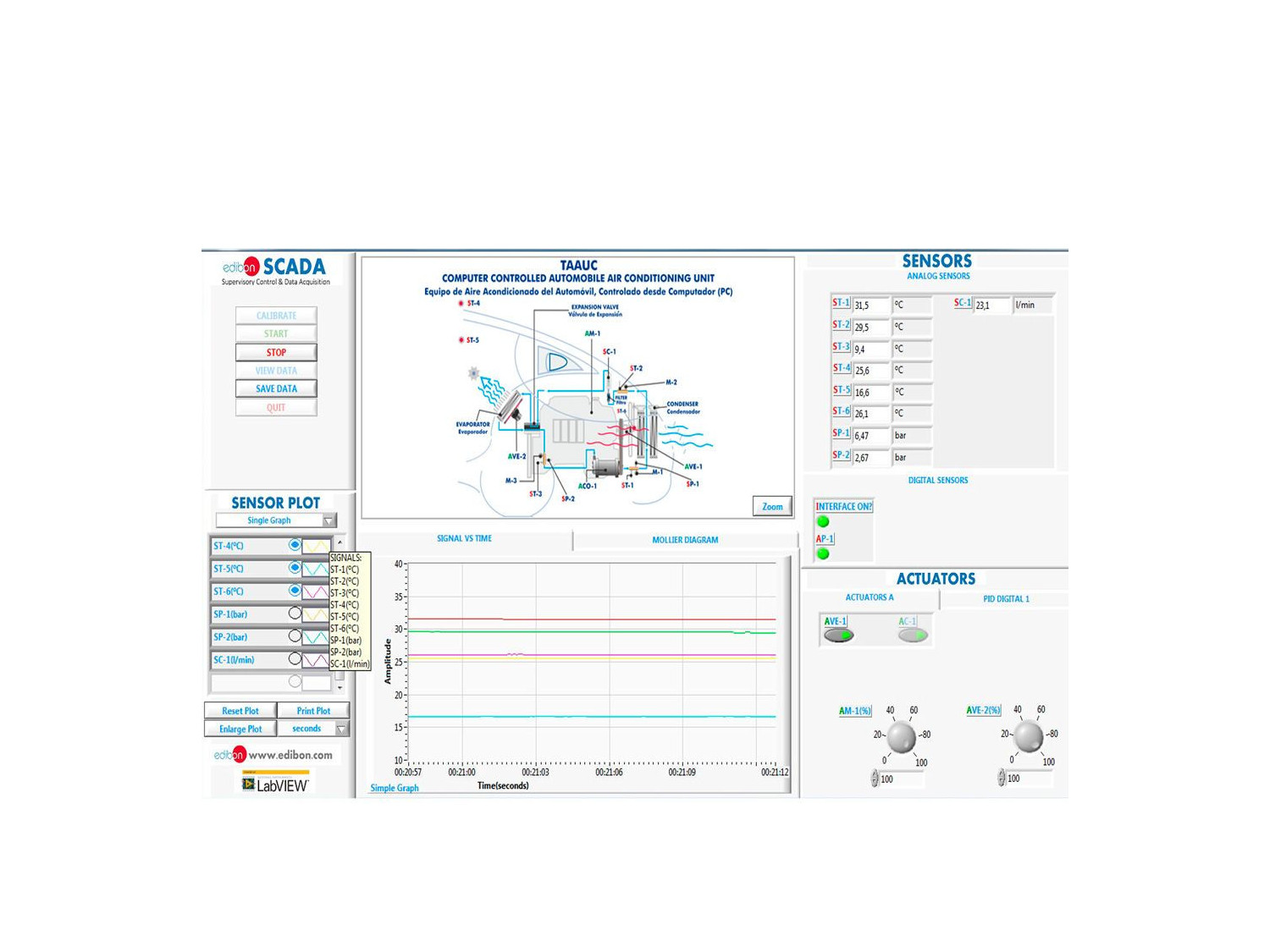

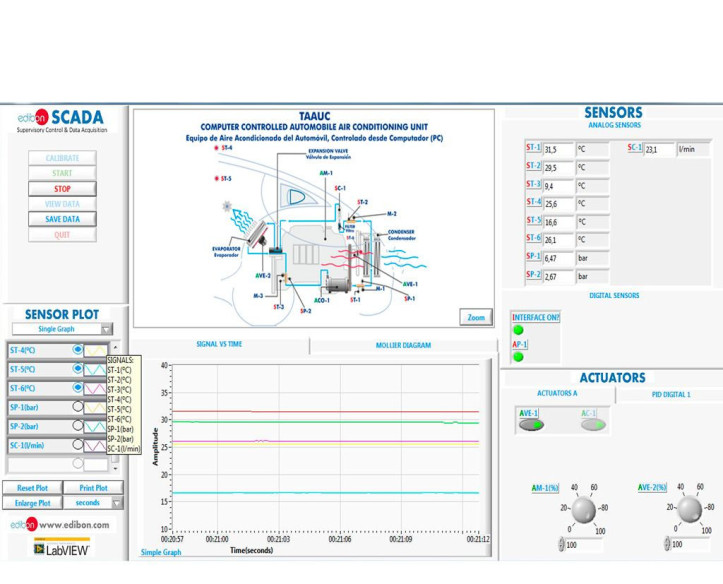

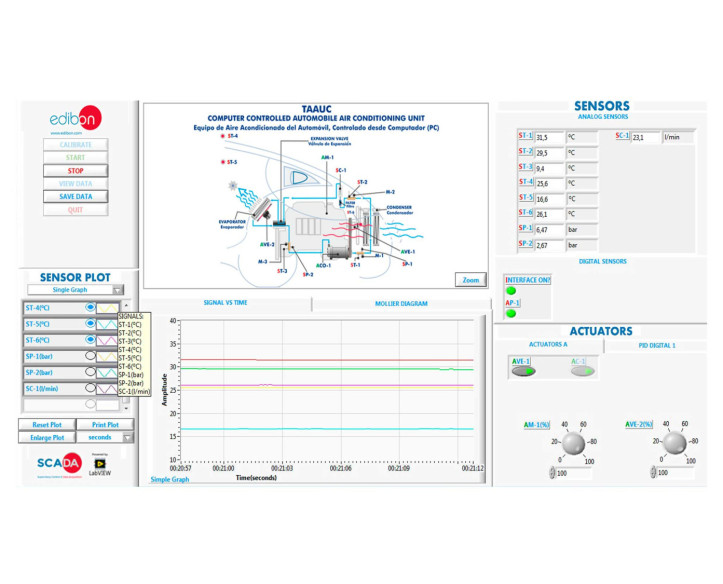

TAAUC/SOF. TAAUC Software. Main Screen

COMPUTER CONTROLLED AUTOMOBILE AIR CONDITIONING UNIT - TAAUC
COMPUTER CONTROLLED AUTOMOBILE AIR CONDITIONING UNIT - TAAUC
COMPUTER CONTROLLED AUTOMOBILE AIR CONDITIONING UNIT - TAAUC
COMPUTER CONTROLLED AUTOMOBILE AIR CONDITIONING UNIT - TAAUC
COMPUTER CONTROLLED AUTOMOBILE AIR CONDITIONING UNIT - TAAUC
COMPUTER CONTROLLED AUTOMOBILE AIR CONDITIONING UNIT - TAAUC

SISTEM INOVATIF

The Computer Controlled Automobile Air Conditioning Unit, "TAAUC", designed by EDIBON, consists, basically, of a compressor driven through a belt by a motor that simulates the engine of a car.

Lihat uraian umum

Ekspansi

ICAI

Perangkat Lunak Pengajaran Berbantu Komputer Interaktif
FSS

Sistem Simulasi Kegagalan
PLC

Pengendalian Proses Industri oleh PLC
PLCHMI

Kontrol dan Pemantauan IIoT Lokal/Jarak Jauh dengan HMI
ELK

Kit Pengembangan Perangkat Lunak EDIBON, Didukung oleh NI LabVIEW™
ECR

Sistem Industri Modular EDIBON dengan NI CompactRIO
ESN

EDIBON SCADA-Net
ECL

Pendidikan Jarak Jauh EDIBON

Laboratorium

9TV
 Laboratorium Termodinamika dan Termoteknik untuk Pendidikan Teknik dan Kejuruan
9HE
 Laboratorium Termodinamika dan Termoteknik untuk Pendidikan Tinggi

BERITA TERKAIT

Thermodynamics and Thermotechnology: Key concepts and EDIBON's contribution
Thermodynamics and Thermotechnology: Key concepts and EDIBON's contribution
Thermodynamics and thermotechnology are fundamental fields of engineering that play a critical role across various industries, from energy generation to climate control. Understanding these foundational concepts is essential not only for engineers but also for fostering technological innovations...
Baca lebih lanjut
EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Baca lebih lanjut
We are excited to celebrate the publication of the article by Prof. Dr. Nina Penkova titled "Performance of Diffusion Absorption Refrigerators with Variable Input Power" The study explores how absorption refrigerators, which utilize waste or solar energy for heating and cooling, can operate...
Baca lebih lanjut
Setting up at Centre de Formation des Metiers de l´Industrie (CFMI) in Togo
Setting up at Centre de Formation des Metiers de l´Industrie (CFMI) in Togo
We have returned to the Cfmi_togo to install some of our equipment. These units belong mainly to the areas of Environment, Chemical Engineering, Thermodynamics & Thermotechnics, Energy and Mechanics.
Baca lebih lanjut
Setting up at the Centre de formation et des métiers (CFMI) in Togo (Africa)
Setting up at the Centre de formation et des métiers (CFMI) in Togo (Africa)
We recently had the honor of installing a complete laboratory at the Centre de formation et des métiers (CFMI) in Togo (Africa).This complete laboratory now has the following EDIBON units
Baca lebih lanjut

GAMBARAN UMUM

The Computer Controlled Automobile Air Conditioning Unit, "TAAUC", designed by EDIBON, consists, basically, of a compressor driven through a belt by a motor that simulates the engine of a car.

The number of revolutions of the engine and, therefore, the compressor, can be adjusted with a variable frequency drive.

The air supplied by the fans enters the cooling system through the condenser to undergo a refrigeration cycle through that system.

There is also an evaporator with fan, expansion valve, filter and storage tank.

Apart from the air conditions change, the unit has been designed to study the refrigeration circuit too by strategically locating temperature, pressure and flow sensors, which enable the user to study the refrigeration cycle.

All the components of the system are typical elements employed in the car industry and are directed to the practice.

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + a Control Interface Box + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.

LATIHAN DAN PRAKTEK PEDOMAN

LATIHAN PRAKTIS YANG DIANDAL TERMASUK DALAM PANDUAN

  1. Simulation of the speed variation of a car.
  2. Cooling in function of the condenser’s fan.
  3. Cooling in function of the compartment inlet.
  4. Calibration of sensors.

LEBIH BANYAK LATIHAN PRAKTIS YANG AKAN DILAKUKAN DENGAN UNIT

  1. Study of the typical elements of a refrigeration system.
  2. Energy balance in the evaporator and condenser.
  3. Determination of the performance of the system.
  4. Experimental determination of the air specific heat capacity.
  5. Optimum determination of the parameters that take part in an air conditioning process.
  6. Properties of the refrigerant R-513a.
  7. Enthalpy-pressure diagram for the refrigerant R-513a.

Other possibilities to be done with this unit:

  1. Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
  2. Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivative parameters, etc, in real time.
  3. The Computer Control System with SCADA allows a real industrial simulation.
  4. This unit is totally safe as uses mechanical, electrical/electronic, and software safety devices.
  5. This unit can be used for doing applied research.
  6. This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
  7. Control of the TAAUC unit process through the control interface box without the computer.
  8. Visualization of all the sensors values used in the TAAUC unit process.
  9. By using PLC-PI additional 19 more exercises can be done.
  10. Several other exercises can be done and designed by the user.
