FME11 Demonstrasi Ketinggian Metasentris

8.1.3.- HIDROSTATIS
METACENTRIC HEIGHT DEMONSTRATION - FME11

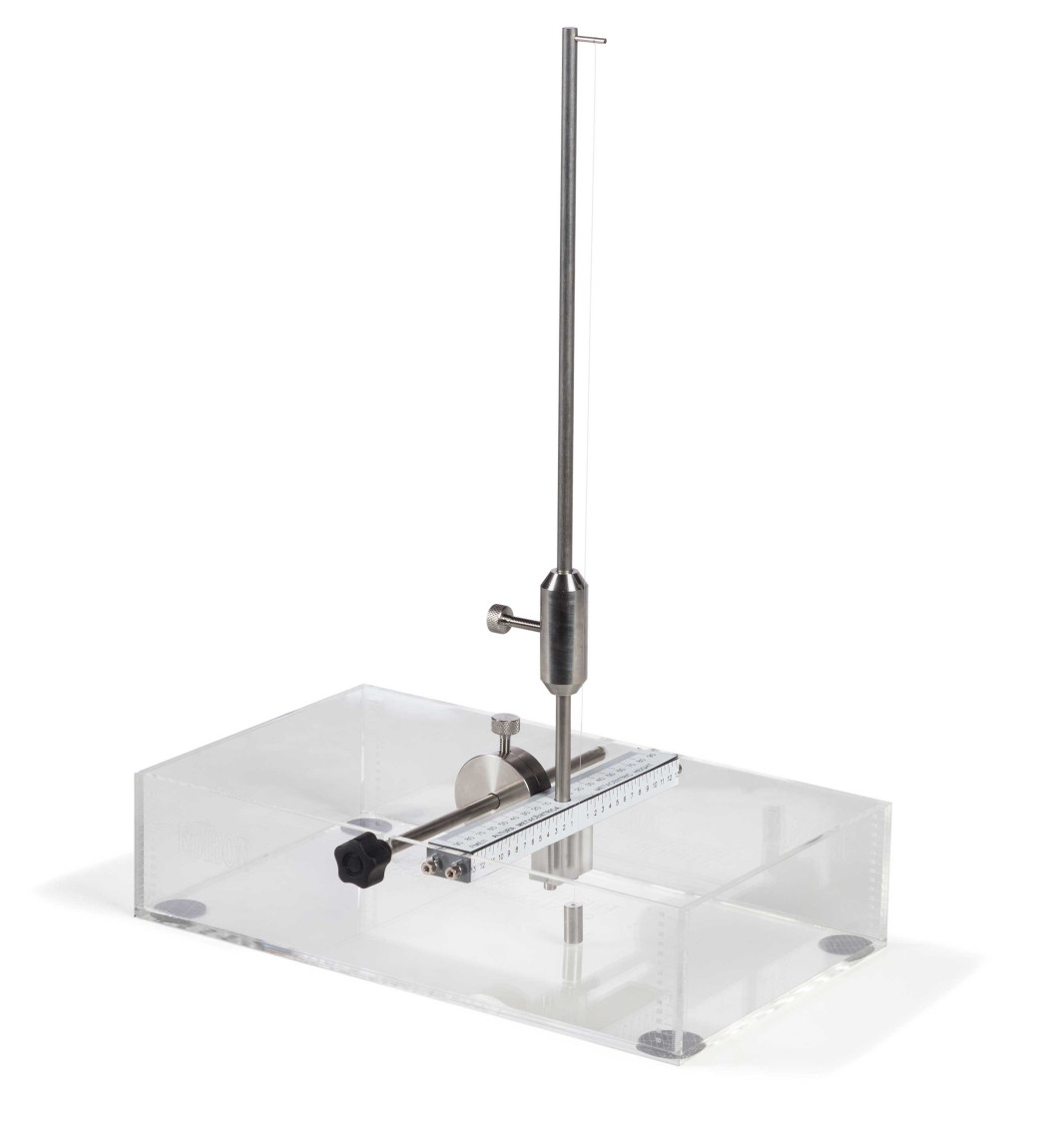

Complete FME11 Unit

METACENTRIC HEIGHT DEMONSTRATION - FME11

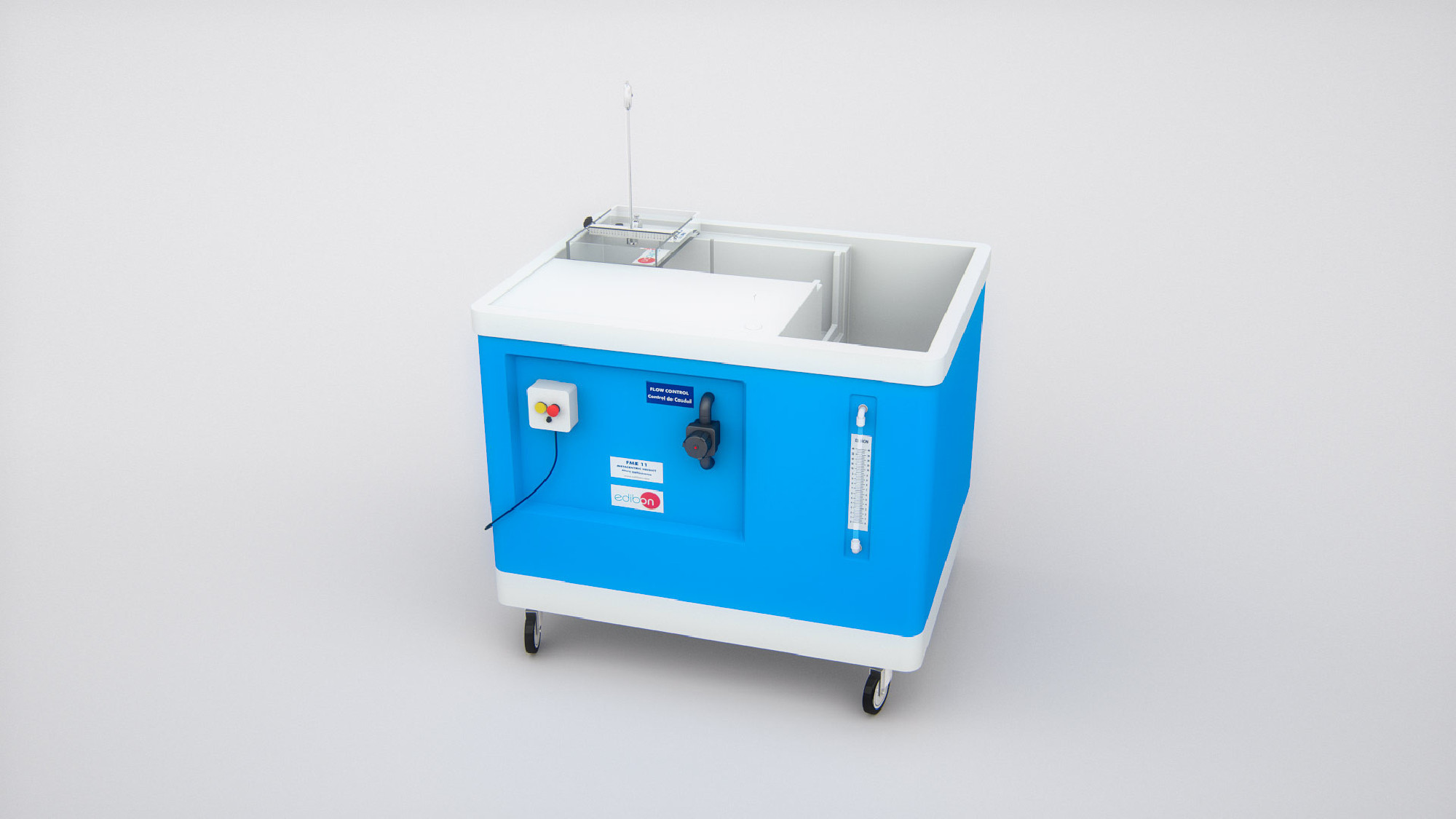

FME11 Unit with service unit FME00

METACENTRIC HEIGHT DEMONSTRATION - FME11
METACENTRIC HEIGHT DEMONSTRATION - FME11

SISTEM INOVATIF

The Metacentric Height Demonstration Unit, "FME11", designed by EDIBON, allows the study of the stability of a floating object by calculating its metacentric height.

Lihat uraian umum

Ekspansi

ICAI

Perangkat Lunak Pengajaran Berbantu Komputer Interaktif
MSAC

Sistem Pencacahan dan Pengendalian Modular

Laboratorium

8TV
 Laboratorium Mekanika Fluida untuk Pendidikan Teknik dan Kejuruan
8HE
 Laboratorium Mekanika Fluida untuk Perguruan Tinggi

BERITA TERKAIT

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Baca lebih lanjut
Setting up at the University of Trinidad and Tobago
Setting up at the University of Trinidad and Tobago
Recently, we have had the pleasure of making an installation at the University of Trinidad and Tobago
Baca lebih lanjut
NEW Fluid Mechanics Course
NEW Fluid Mechanics Course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of Fluid Mechanics and learn about #fluids properties. #DiscoverEdibon #Engineering.
Baca lebih lanjut

GAMBARAN UMUM

The Metacentric Height Demonstration Unit, "FME11", designed by EDIBON, allows the study of the stability of a floating object by calculating its metacentric height.

The unit consists of a floating methacrylate prismatic base, on which a vertical mast is supported, to which an adjustable movable mass has been added to change the gravity center.

A weight that can be horizontally and vertically displaced allows for modification of the floating base heel.

A plumb bob, attached to the upper part of the mast, is used to measure the angle of heel of the floating base with the aid of a graduated scale.

LATIHAN DAN PRAKTEK PEDOMAN

LATIHAN PRAKTIS YANG DIANDAL TERMASUK DALAM PANDUAN

  1. Analytical location of the center of gravity.
  2. Experimental location of the center of gravity (FME11).
  3. Location of the center of buoyancy.
  4. Location of the metacentric center with no list on the boat.
  5. Location of the metacentric center with list on the boat with the instability method.
  6. Location of the metacenter center with list on the boat with the variation of the center of gravity method.
