CAG Колонна абсорбции газов

GAS ABSORPTION COLUMN - CAG

ИННОВАЦИОННЫЕ СИСТЕМЫ

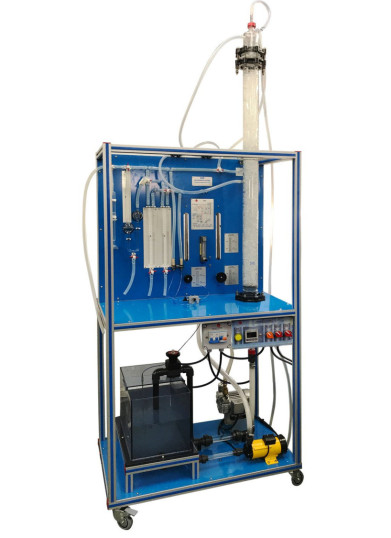

The Gas Absorption Column, "CAG", has been designed by EDIBON to experimentally study the absorption of CO₂ or ammonia from a gas stream into an aqueous solution using a packed column. It enables gas and liquid flow rates, CO₂ concentrations, temperatures, pressure drop, hydrodynamic characteristics, mass balances, mass transfer coefficients, and the variables affecting absorption efficiency to be analyzed.

Посмотреть общее описание

НОВОСТИ ПО ТЕМЕ

ОБЩЕЕ ОПИСАНИЕ

The Gas Absorption Column, "CAG", has been designed by EDIBON to experimentally study the mass transfer and hydrodynamic phenomena associated with continuous gas-liquid contact in a packed column. The unit enables CO₂ or ammonia to be absorbed from an air mixture into a downward-flowing aqueous stream flowing downward through the packing, the gas and liquid streams to be analyzed, and the operating conditions to be related to absorption efficiency. This configuration enables mass balances to be performed, mass transfer coefficients to be determined, and pressure drop, entrainment, flooding, and quantitative gas and liquid analysis methods to be studied.

Contact between the two phases takes place in a cylindrical glass column packed with Raschig rings. The liquid phase is fed from the top through a glass spray distributor, while the gas mixture is introduced at the base of the column, below the packing level, promoting its distribution before it passes through the packing. This arrangement establishes continuous contact between the upward-flowing gas and downward-flowing liquid and enables the behavior of both streams along the column to be observed.

The liquid circuit uses water stored in a tank, from which a centrifugal pump delivers it to the top of the column. The water flow rate is measured by a flowmeter and can be regulated before entering the contact section. After passing through the packing, the liquid returns to the storage tank. The circuit also incorporates a sampling point and a sensor for measuring the water temperature at the column inlet. Simple CO₂ desorption of the previously loaded liquid can also be carried out in the storage tank by aeration, enabling the release of the absorbed component from the liquid phase to be studied.

The gas circuit consists of an air stream supplied by a blower and a CO₂ or ammonia stream supplied from an external gas cylinder. Both streams are mixed before entering the column, and their flow rates are independently measured by flowmeters and adjusted using their corresponding control valves. A temperature sensor measures the temperature of the gas mixture at the column inlet. Independent variation of the gas and liquid flow rates enables the influence of operating conditions on hydrodynamic behavior and absorption efficiency to be analyzed.

These variations make it possible to study the hydrodynamic characteristics of the packed column, determine the flow rates associated with entrainment and flooding, and analyze the pressure drop through the column. The measurements obtained also enable mass balances to be verified and mass transfer coefficients to be determined, relating the flow conditions of both phases to process performance.

For CO₂ analysis, the unit incorporates specific instrumentation that enables its concentration to be determined in streams from the upper and central sections of the column. A gas sample of known volume is extracted using a glass syringe and introduced into a set of vessels containing an aqueous KOH solution, where the CO₂ present in the sample is absorbed. Three-way valves direct the gas streams during the analysis procedure, while transparent components facilitate observation of the process. This configuration enables quantitative gas analysis methods to be experimentally demonstrated.

Additionally, in order to expand the experimental possibilities, different recommended additional elements can be incorporated:

  • Manual CO₂ Concentration Meter for Gas Streams, "CAG/M": enables the CO₂ concentration in gas streams to be measured.
  • Cooling Water Recirculation Unit, "TERA": enables the influence of temperature on absorption efficiency to be studied.

УПРАЖНЕНИЯ И ПРИМЕРЫ С ИНСТРУКЦИЯМИ

РУКОВОДСТВО ПО ПРАКТИЧЕСКИМ УПРАЖНЕНИЯМ ВКЛЮЧЕНО В РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ

  1. Determination of entrainment and flooding flow rates.
  2. Gas stream analysis.
  3. Analysis of water samples.
  4. Determination of the mass transfer coefficient.
  5. Checking of the mass balances.

БОЛЬШЕ ПРАКТИЧЕСКИХ УПРАЖНЕНИЙ ДЛЯ РАБОТЫ С УСТРОЙСТВОМ

  1. Study of the basic principles of the absorption of a gas into a liquid using a packed column.
  2. Study of the hydrodynamic characteristics of a packed column.
  3. Demonstration of methods of gas and liquid quantitative analysis.
  4. Investigations of the variables influencing the efficiency of the absorption.
  5. Determination of the water, CO₂ and air flow.
  6. Pressure drop across the column.
  7. Study of the simple desorption process.
  8. Measurement of the CO₂ concentration in gaseous currents using a CO₂ meter (It requires the additional recommended element CAG/M).
  9. Influence of temperature on the adsorption efficiency. (It requires the additional recommended element TERA).
  10. Several other exercises can be done and designed by the user.
