ОБЩЕЕ ОПИСАНИЕ

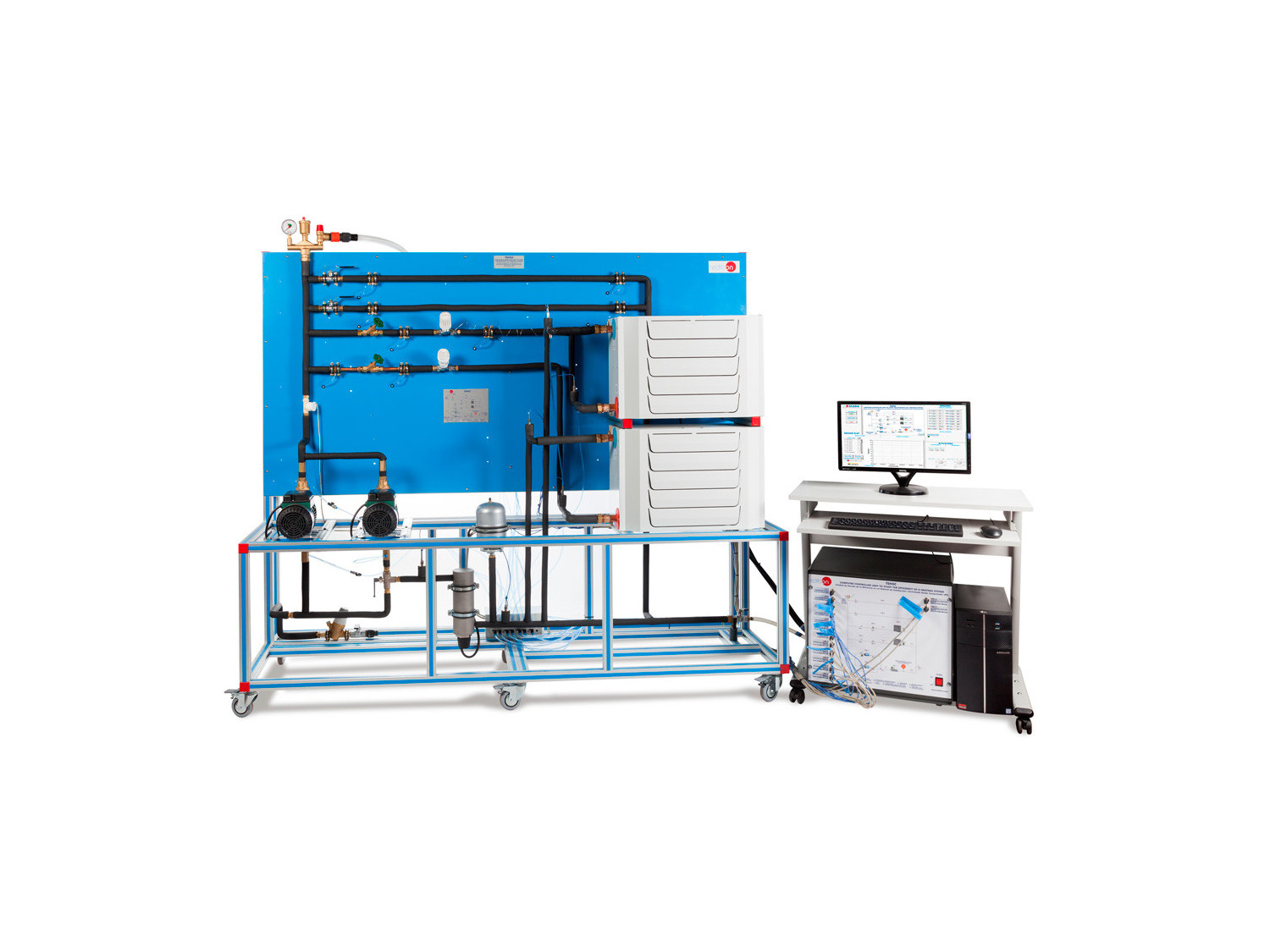

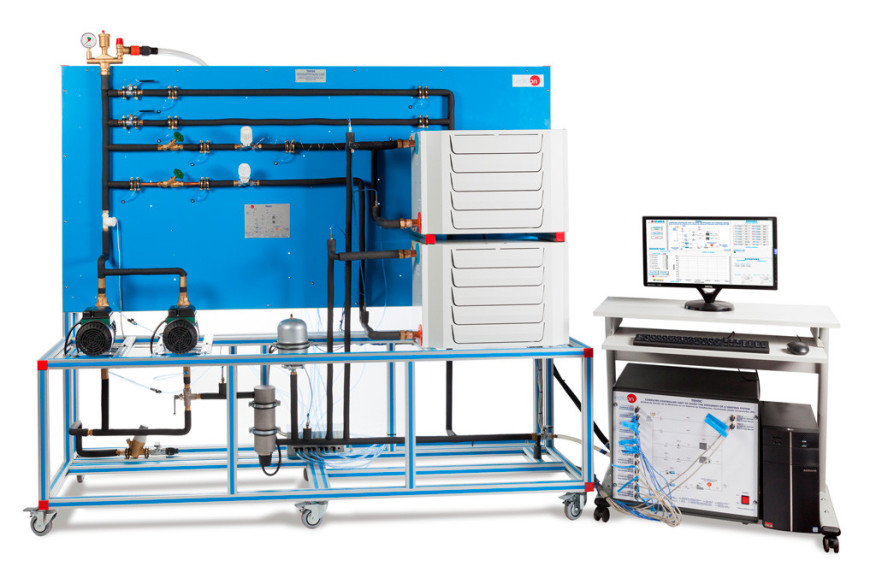

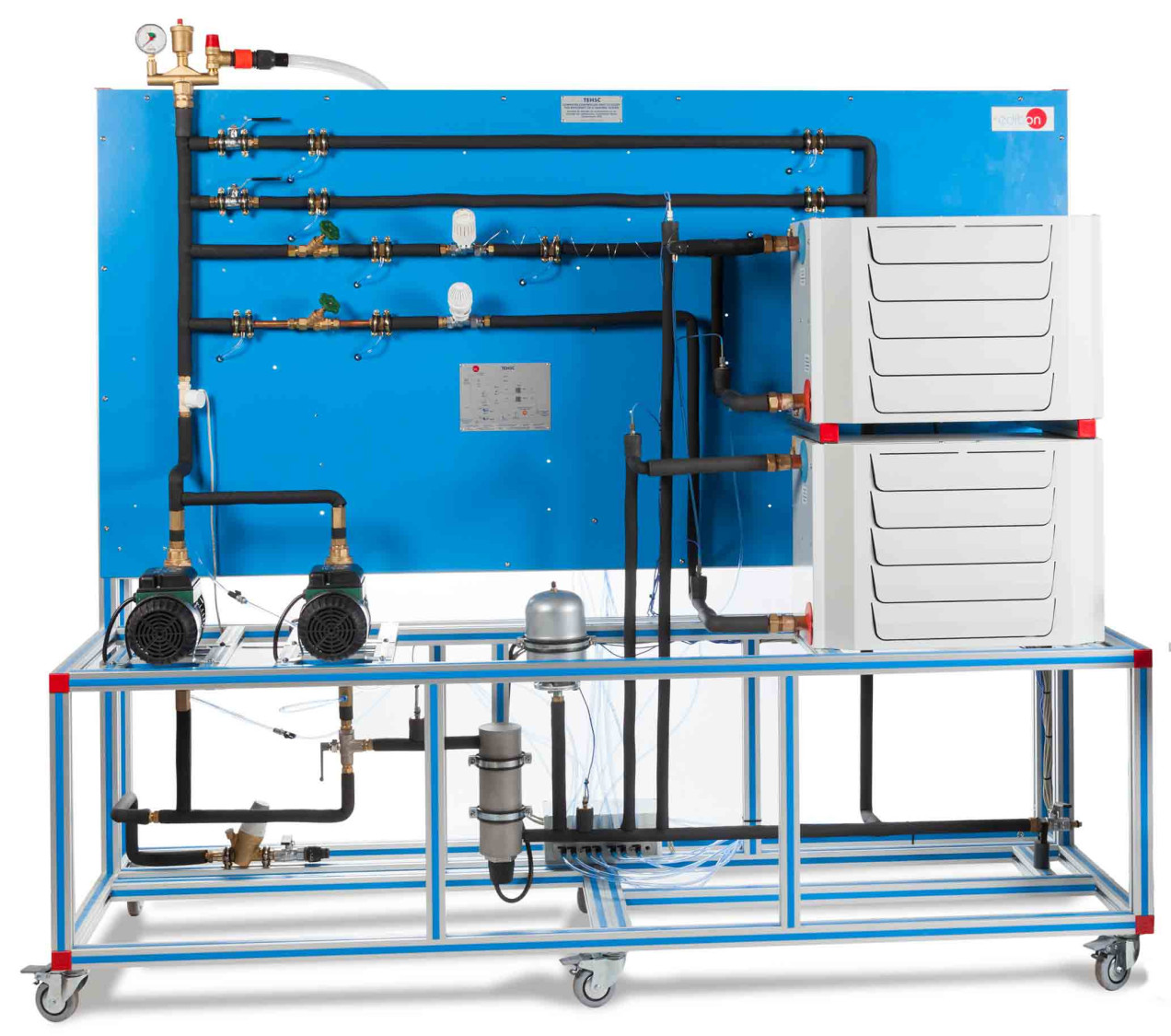

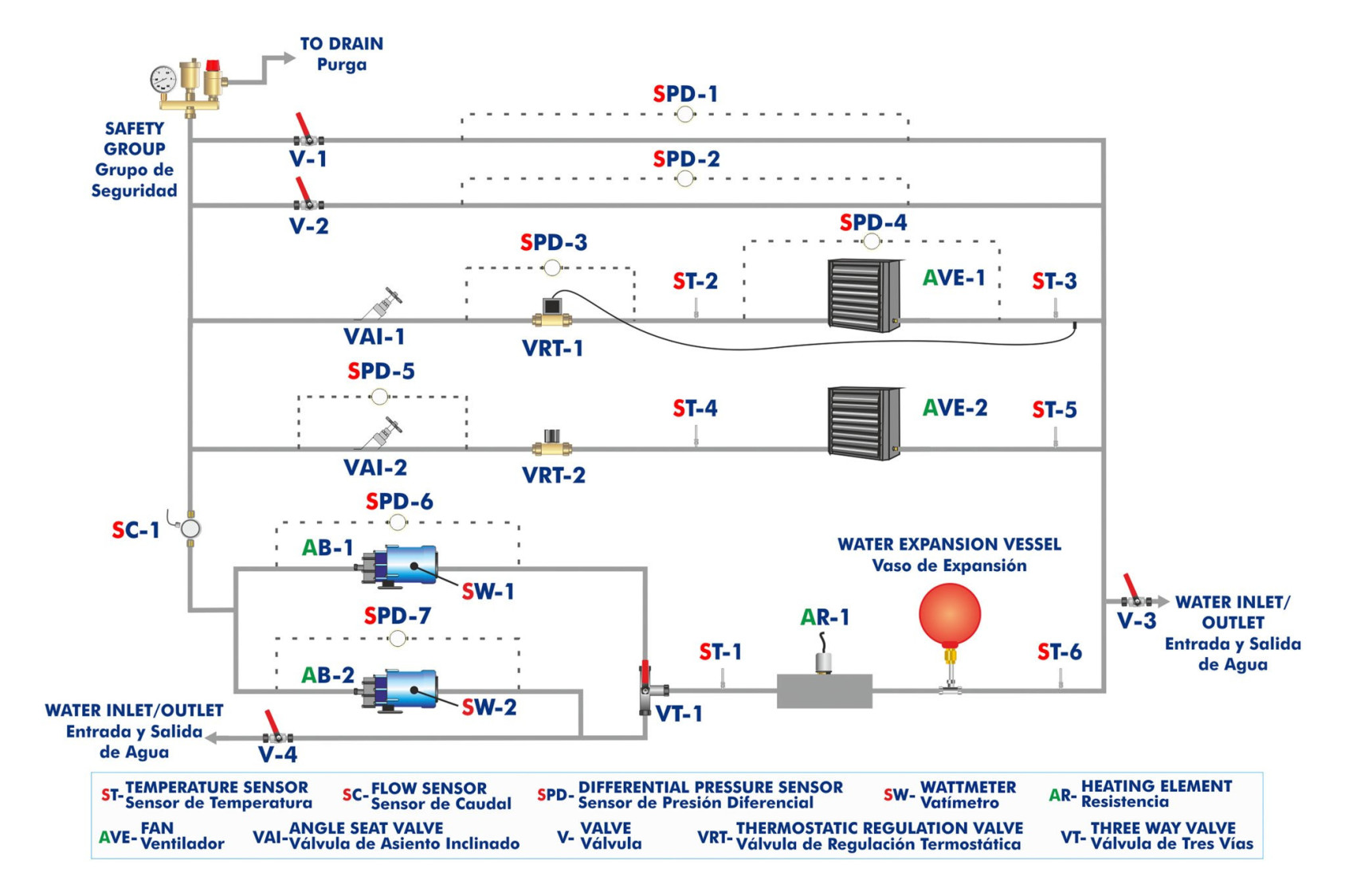

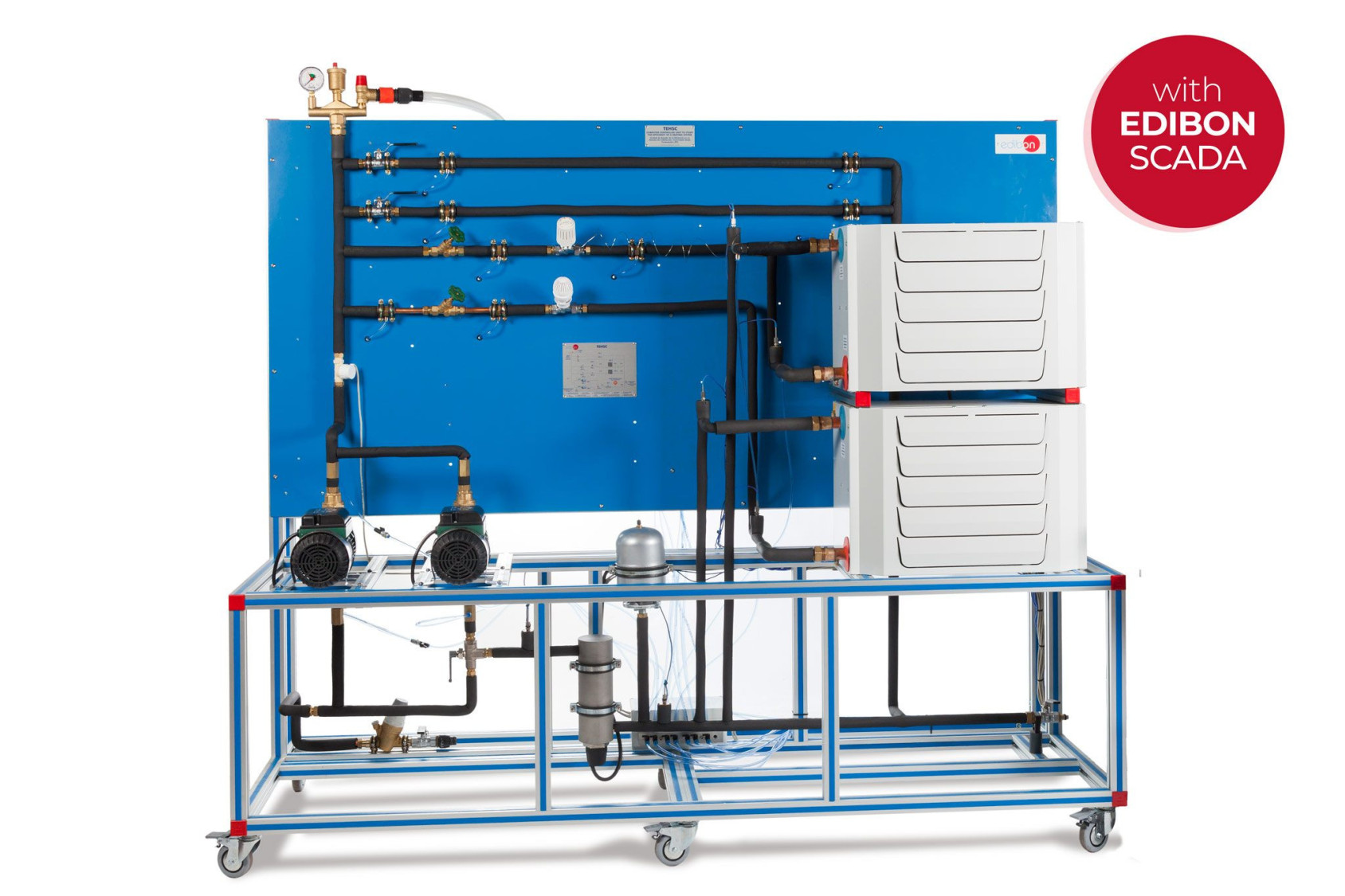

The Computer Controlled Unit to Study the Efficiency of a Heating System, "TEHSC",designed by EDIBON allows for studying and analyzing a closed heating system made upof pipes with different diameter and fittings normally used in real heating systems, with realsafety group (according to DIN 4751 standard). Allows to analyze its efficiency, includingthe operation, arrangement and understanding of its elements.

There are two computer controlled conventional circulation pumps to impel water alongthe system. The speed of one of them is adjustable, allowing a comparative study of bothpumps. There are two differential pressure sensors to study the pressure drops caused byeach pump.

The system includes a computer controlled heating element controlled by computer. It ischaracterized by step response, and by a two-point temperature control with referencevariables adjustment and hysteresis. Alternatively, it can be controlled by PID with set pointtemperature and adjustable parameters.

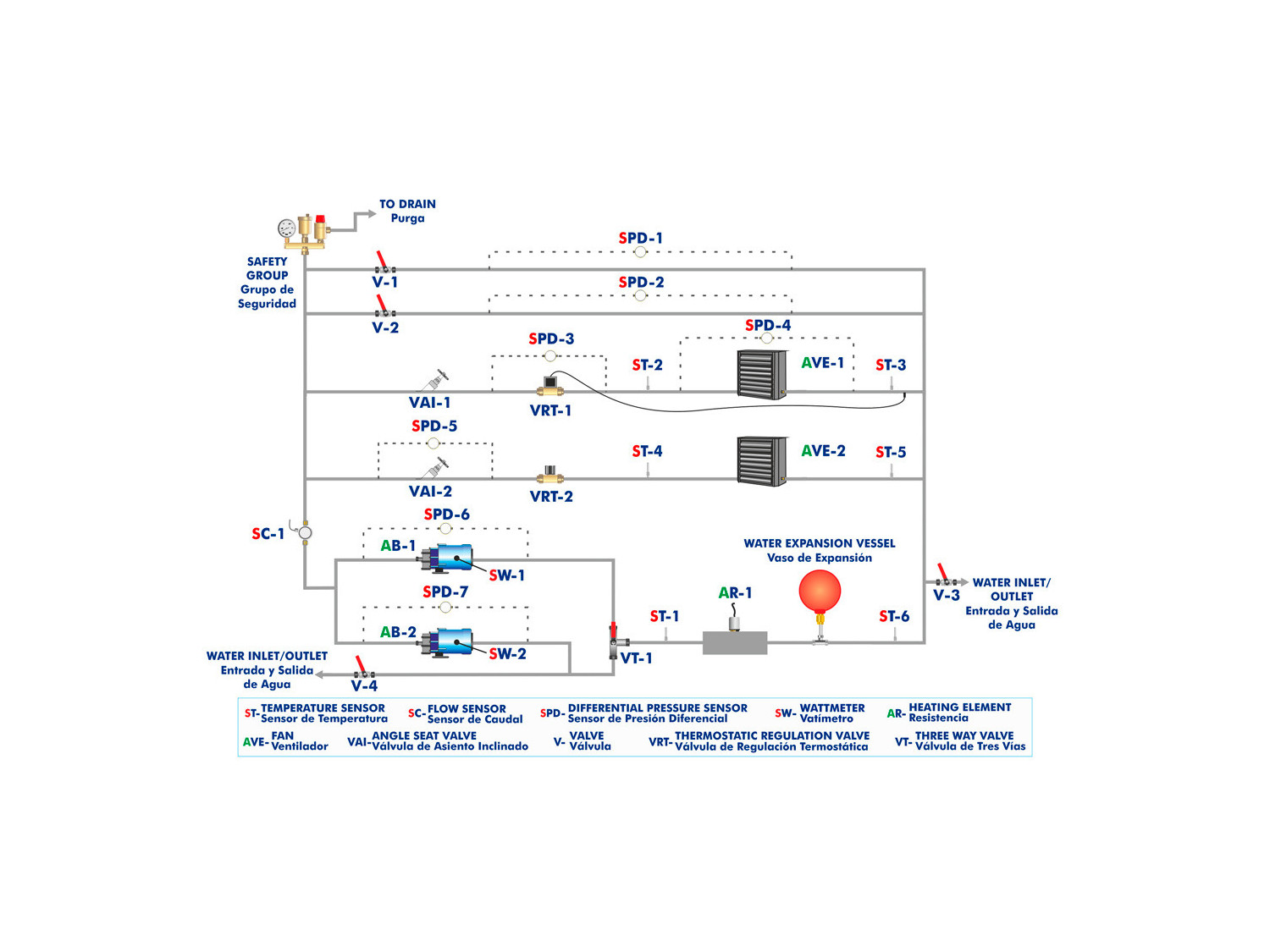

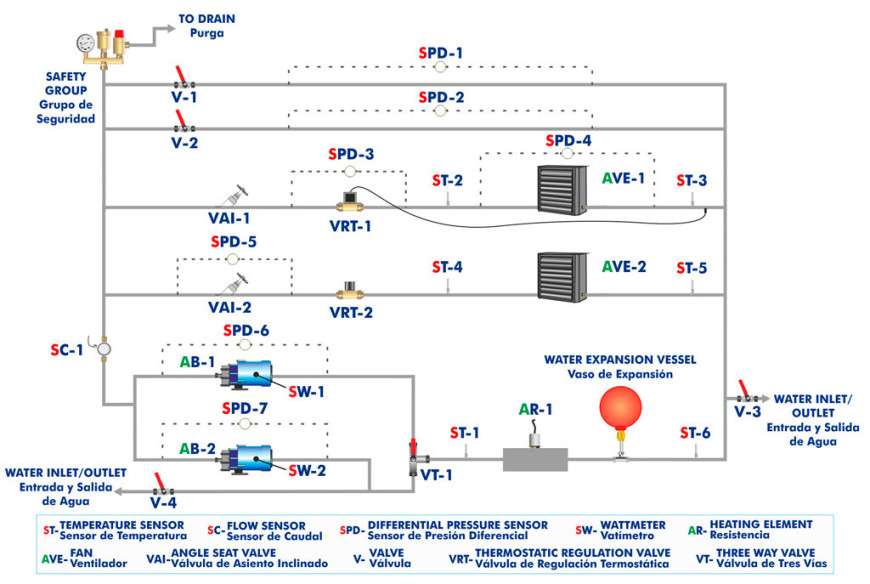

The unit distributes the hot water in several heating lines. In the lower lines, the unit includes two differential pressure sensors to studypressure drops in heating pipes of different diameter.

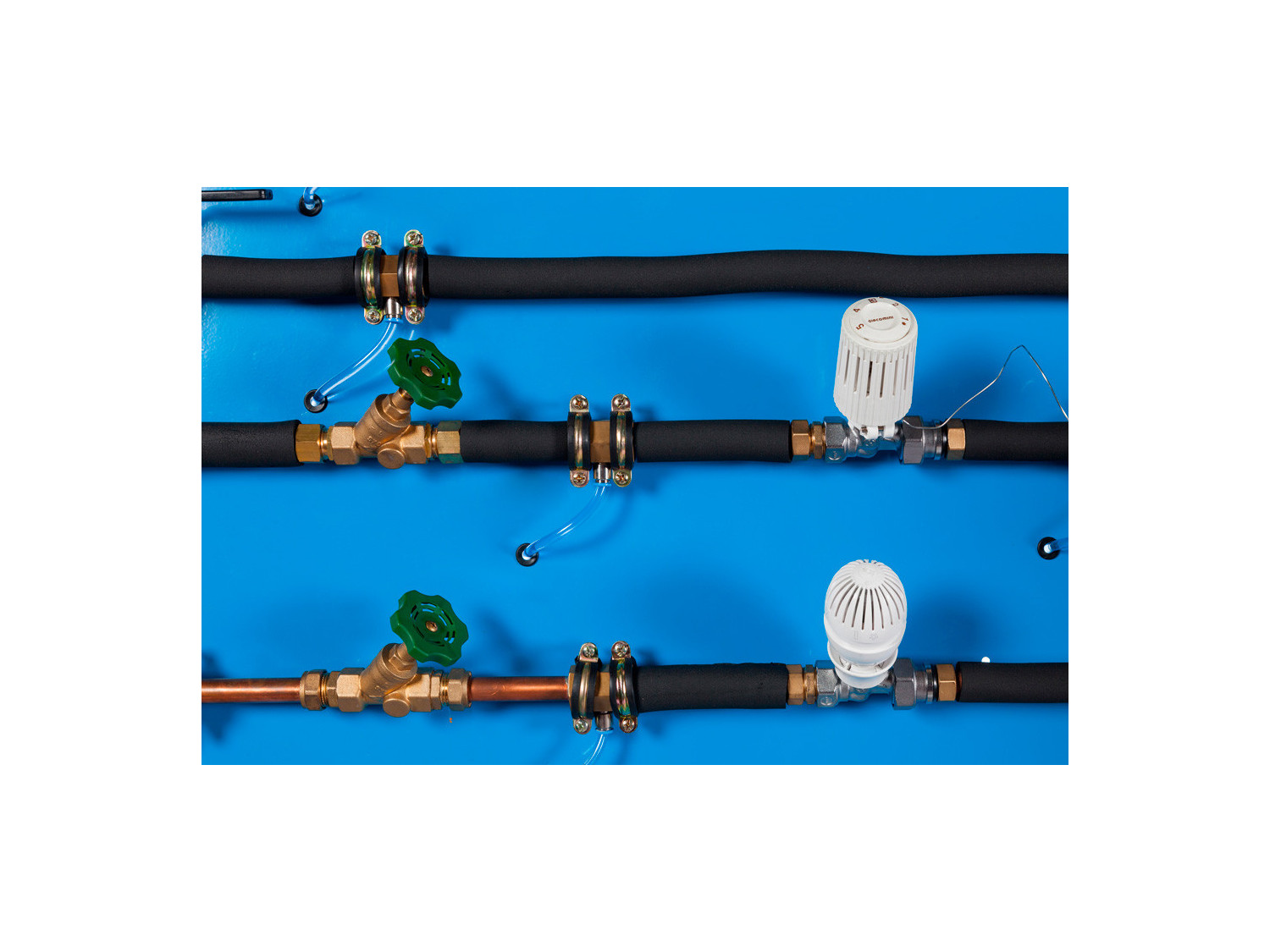

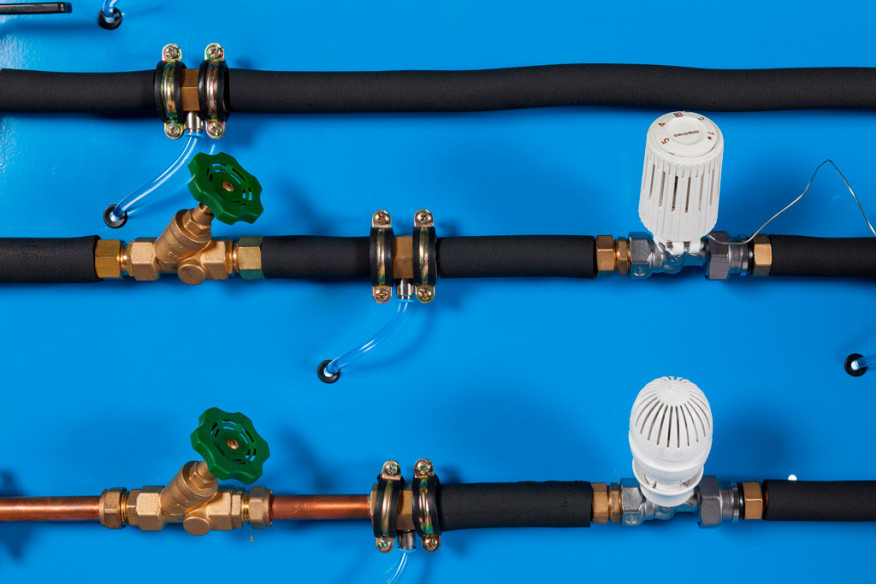

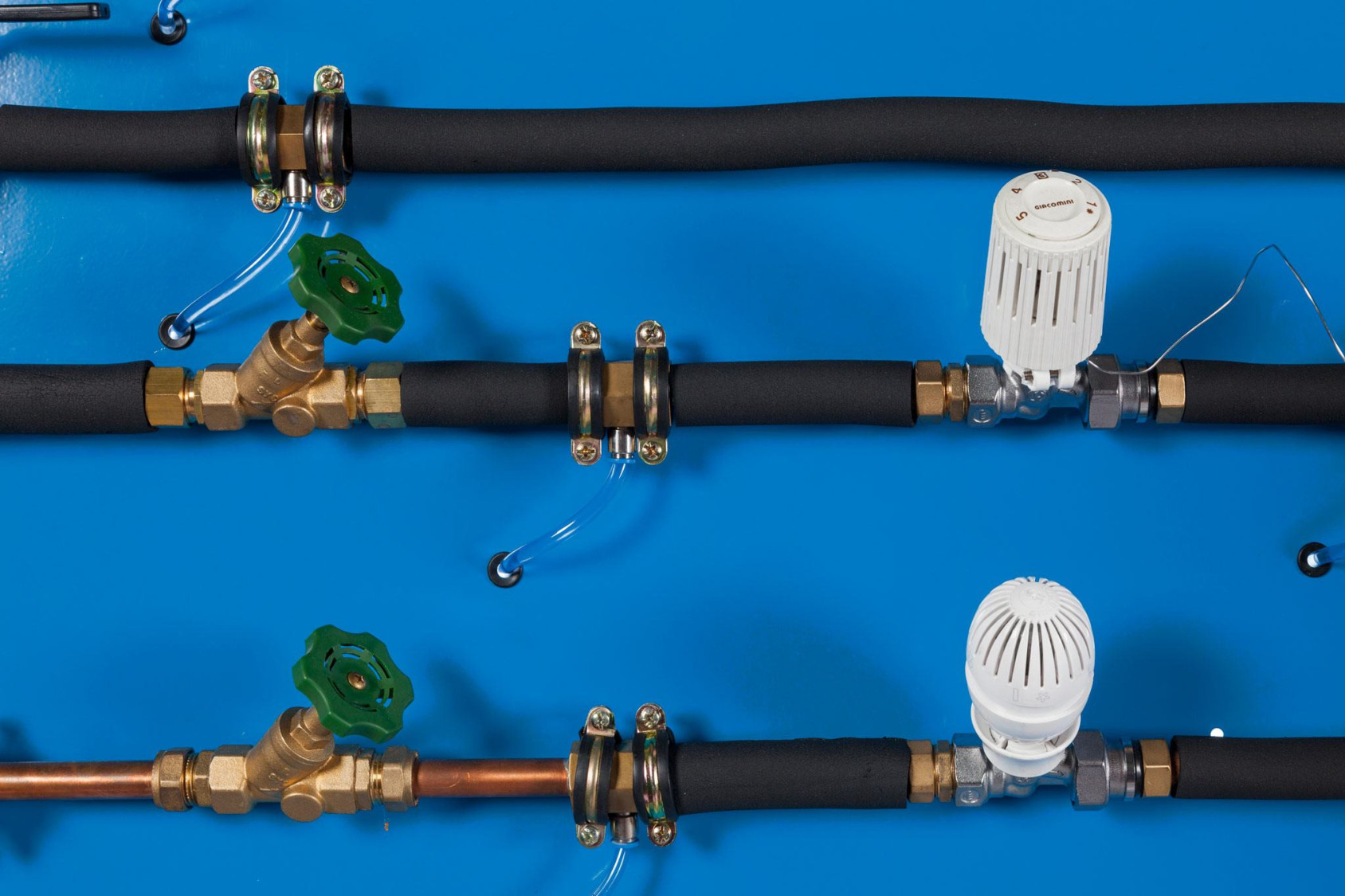

There are several valves in the upper lines of the unit for a comparative study and to determine pressure drops with two differential pressuresensors. These valves are two thermostatic valves with different thermostatic heads, which regulate in function of the room temperature andthe inner water temperature, and an angle seat valve.

In the upper lines there are also two convectors with computer controlled fan. The speed of one of them is adjustable, thus, apart fromemitting hot air, both devices can be compared. A differential pressure sensor allows the study of the pressure drops generated in aconventional convector.

Apart from studying the pressure drop generated in the components of the heating system, the unit includes a water flow sensor, two powersensors for the pumps and six temperature sensors distributed in key points of the system, allowing power flows calculation and efficiencyanalysis.

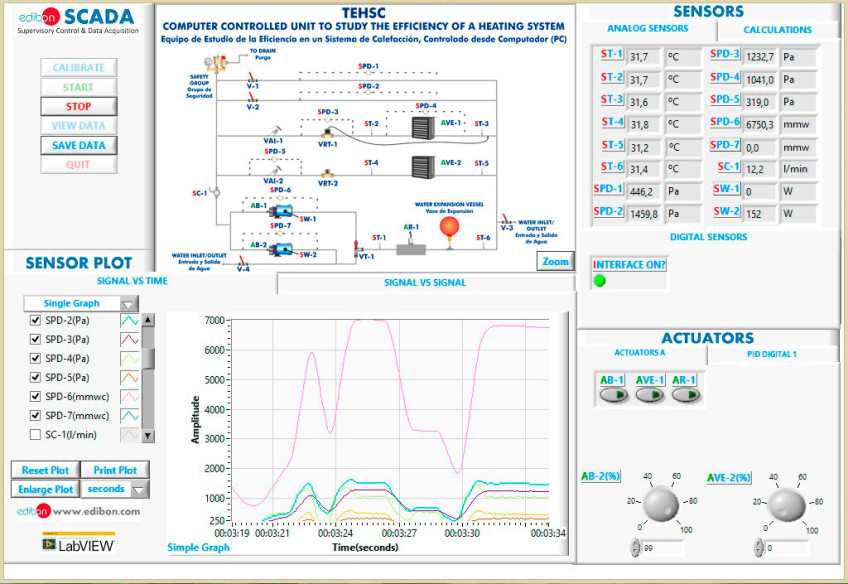

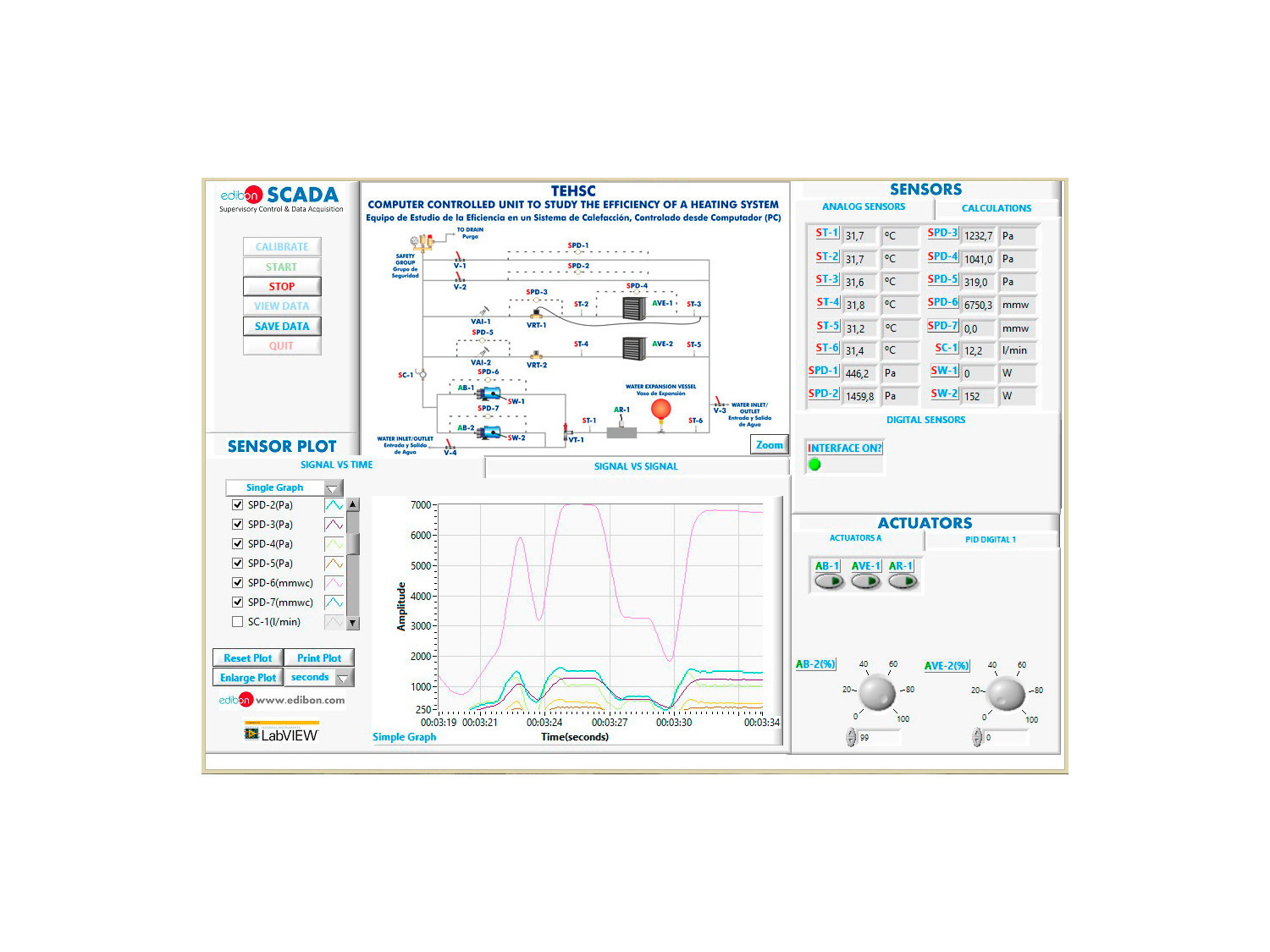

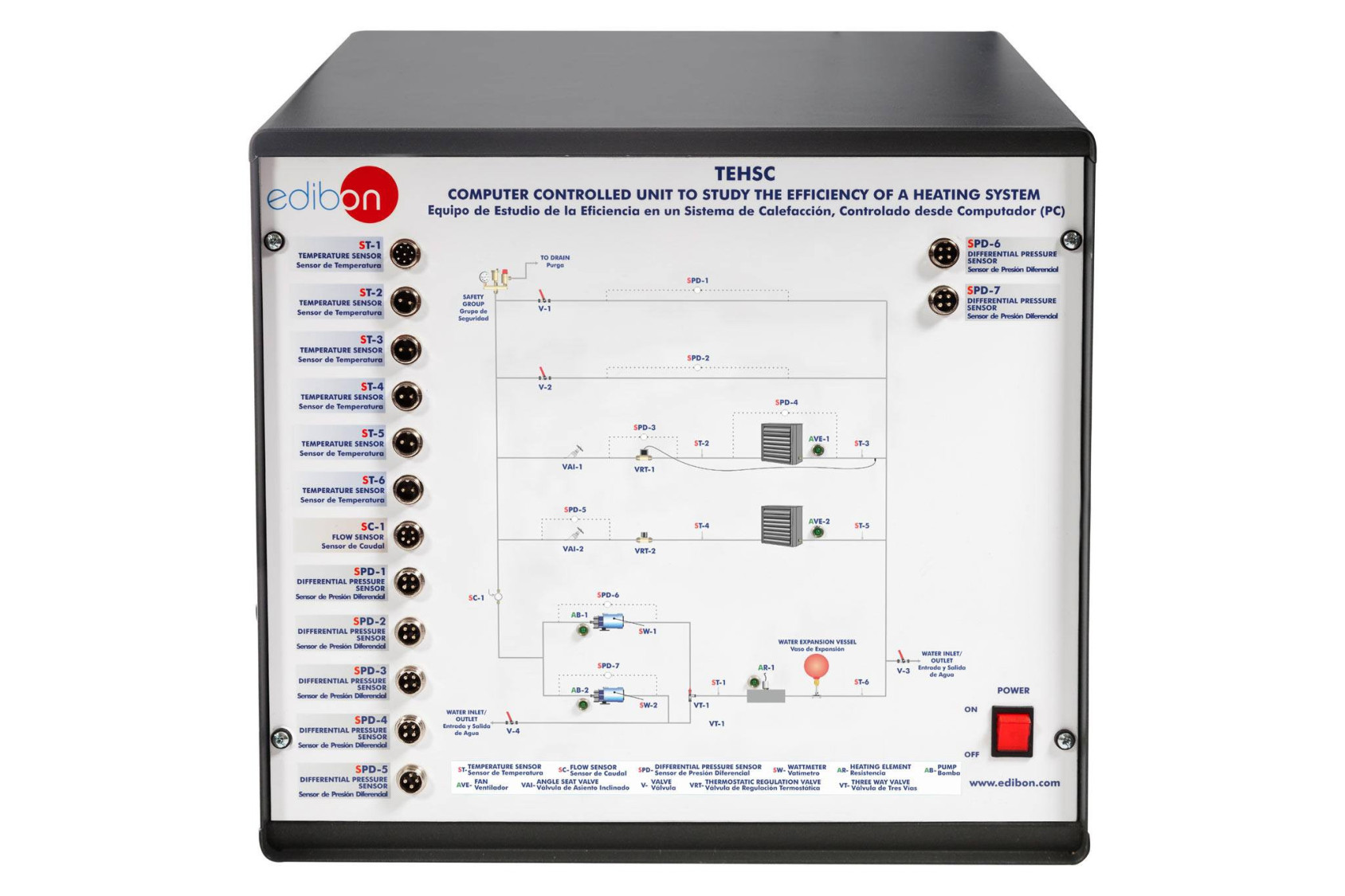

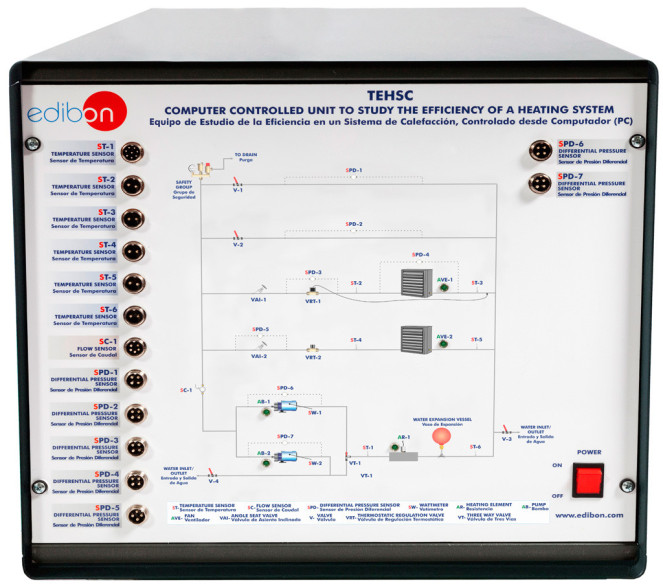

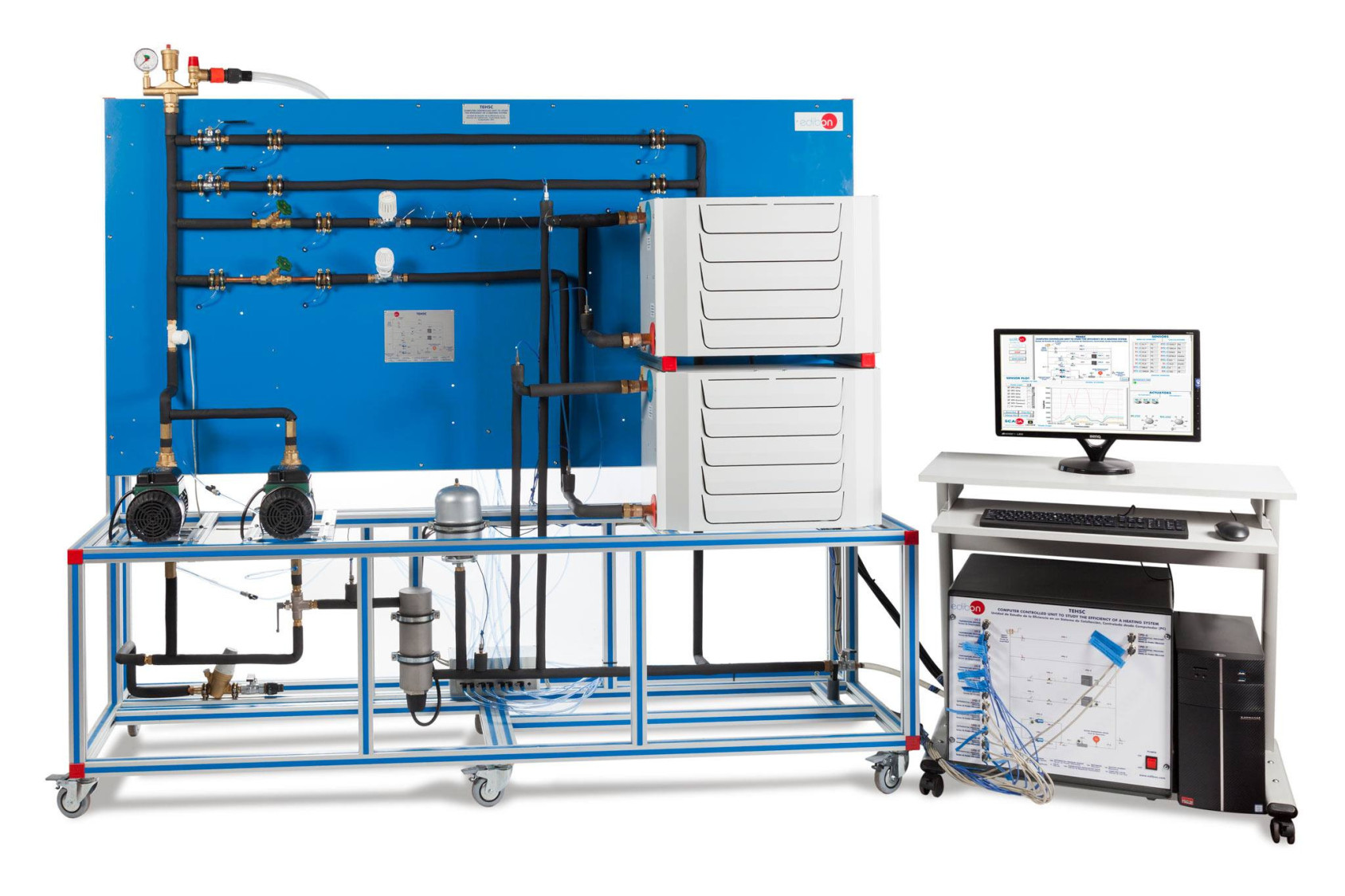

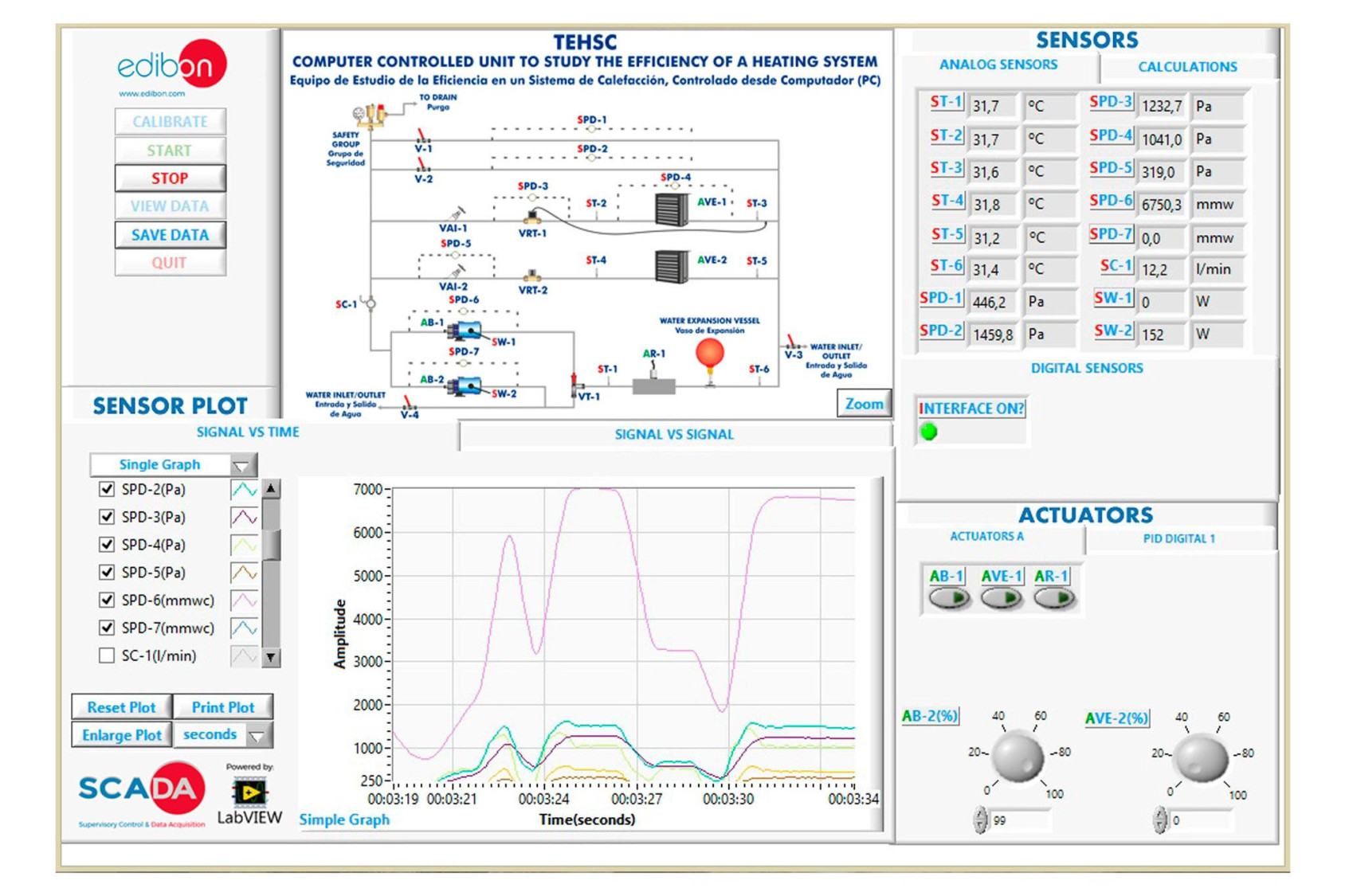

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + aControl Interface Box + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, forcontrolling the process and all parameters involved in the process.

УПРАЖНЕНИЯ И ПРИМЕРЫ С ИНСТРУКЦИЯМИ

РУКОВОДСТВО ПО ПРАКТИЧЕСКИМ УПРАЖНЕНИЯМ ВКЛЮЧЕНО В РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ

  1. Study of the principles and fundamental elements of efficient heating systems.
  2. Determination and analysis of the load losses in heating pipes of different diameter.
  3. Determination and analysis of the load losses in the fittings and elements of a heating system.
  4. Study and comparison of the hydraulic power efficiency of circulatory heating pumps.
  5. Operation and compression of thermostatic valves. Comparison between different types of regulation.
  6. Sensors calibration.

БОЛЬШЕ ПРАКТИЧЕСКИХ УПРАЖНЕНИЙ ДЛЯ РАБОТЫ С УСТРОЙСТВОМ

  1. Two point temperature control systems, programmable PID and step response.
  2. Study and comparison of the hydraulic power efficiency of circulatory heating pumps.
  3. Study and comparison of the electric consumption of circulatory heating pumps.
  4. Energy balances in different elements of an installation.
  5. Study of heat transfer in convectors.
  6. Operation and compression of an inclined seat valve.

Other possibilities to be done with this Unit:

  1. Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
  2. Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivative parameters, etc, in real time.
  3. The Computer Control System with SCADA and PID Control allow a real industrial simulation.
  4. This unit is totally safe as uses mechanical, electrical and electronic, and software safety devices.
  5. This unit can be used for doing applied research.
  6. This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
  7. Control of the TEHSC unit process through the control interface box without the computer.
  8. Visualization of all the sensors values used in the TEHSC unit process.
  9. By using PLC-PI additional 19 more exercises can be done.
  10. Several other exercises can be done and designed by the user.
