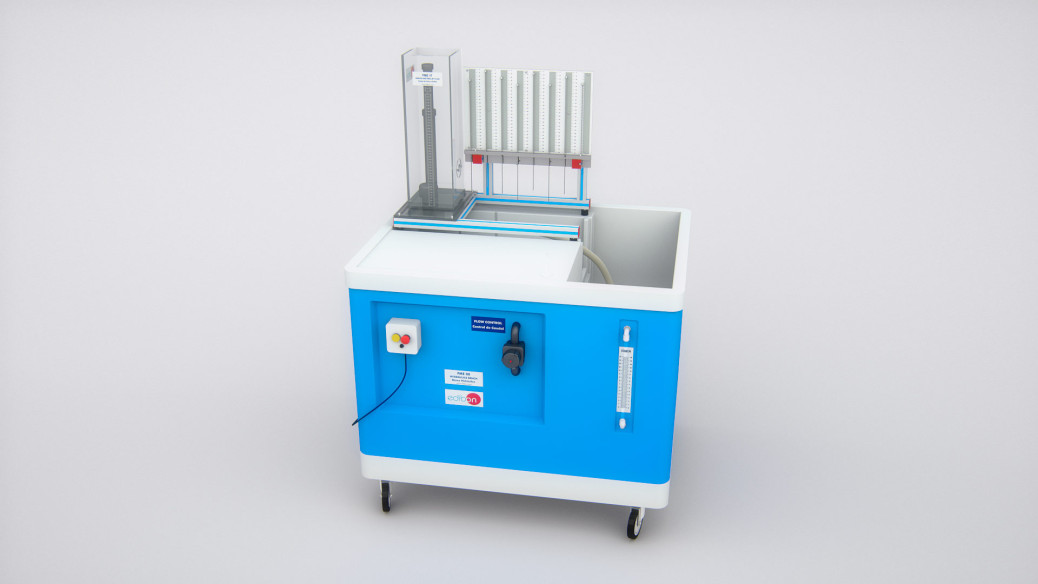

The module consists of a cylindrical methacrylate tank that enables to maintain a constant level and that is fed by the Hydraulics Bench (FME00) or by the Basic Hydraulic Feed System (FME00/B).

일반적인 설명보기

관련 뉴스

일반적인 설명

The module consists of a cylindrical methacrylate tank that enables to maintain a constant level and that is fed by the Hydraulics Bench (FME00) or by the Basic Hydraulic Feed System (FME00/B).

Two nozzles with orifices of different diameters are provided.

They are placed in the base of the tank, and can easily be interchanged.

The trajectory of the jet can be drawn by following the position of some vertical needles placed in the annexed panel. These are adjusted by means of some command screws.

This panel includes a silk-screen scale that enables to measure the profile of the jet.

Adjustable feet permit levelling.

연습 및 가이드

매뉴얼에 포함 된 가이드 실기 연습

  1. Determination of the orifice velocity coefficient.
  2. Obtaining of the orifice discharge coefficient in permanent regime.
  3. Obtaining of the orifice discharge coefficient in variable regime.
  4. Obtaining of the tank discharge time.
