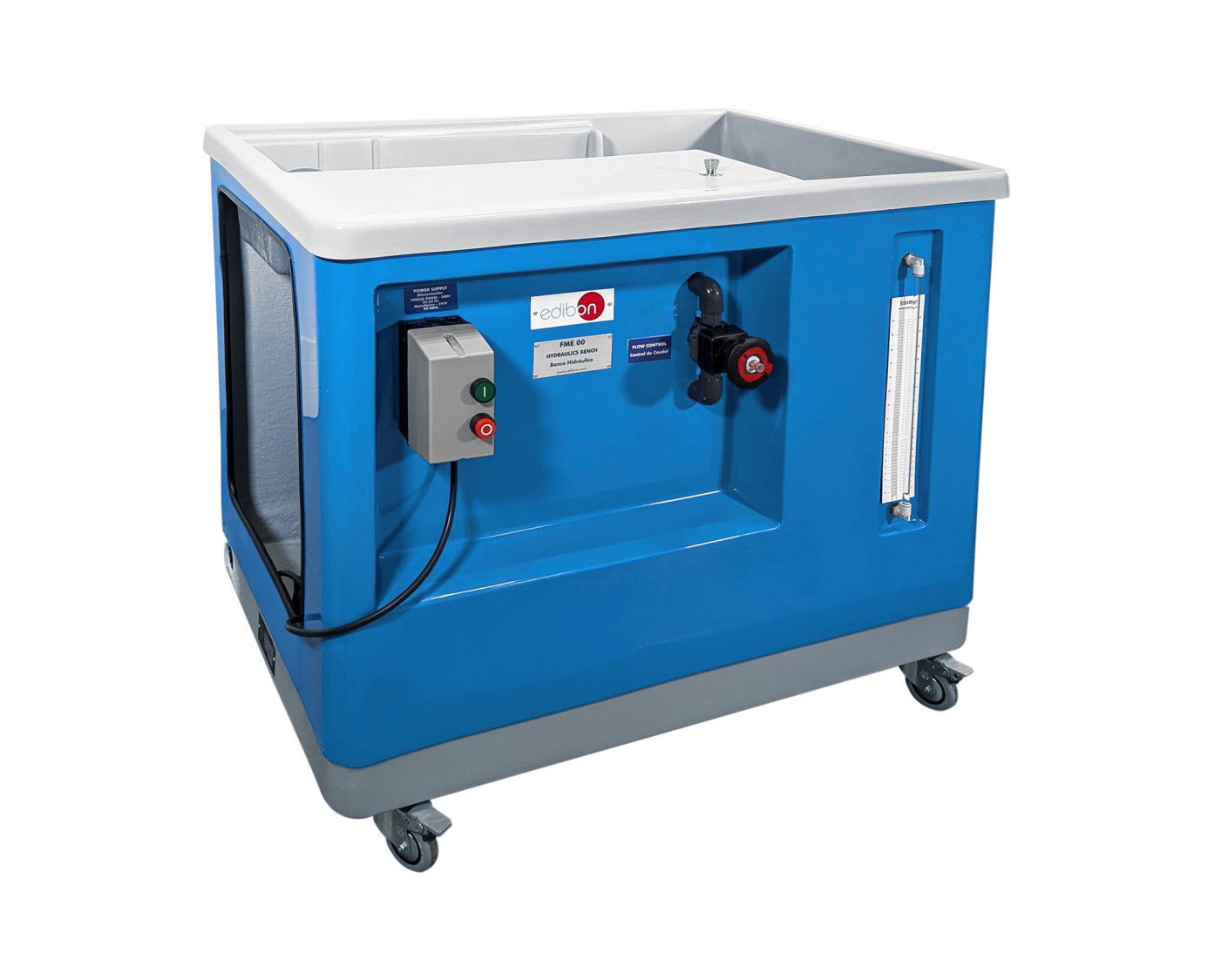

FME00 Hydraulics Bench
The Hydraulics Bench, "FME00", provides the facilities to support a wide range of hydraulic models, each of which has been designed to demonstrate a particular aspect of hydraulic theory.
The Hydraulics Bench, "FME00", is formed by a movable hydraulics bench used to hold a wide variety of modules, which allow the student to experiment with the problems presented by fluid mechanics.
It is an autonomous unit with tank and pump.
Innovative water saving system consisting of a high capacity sump tank and spillway that sends the excess of water back to the tank.
Easy access drain valve.
The volumetric measuring tank is stepped to accommodate for low or high flow rates. A measuring cylinder (1 l – capacity) is included in the supply for the measurement of very small flow rates.
Level tube with scale that shows the water level in the upper tank.
Flow adjusted by means of a membrane valve.
Flow stilling baffle for reducing the turbulence rate.
Specially designed channel, in the upper part, to support the modules on test.
The modules are easily mounted on its top without the use of tools. This ensures its simplicity.
Manufactured with corrosion resistant materials, ensuring a long and useful life of the unit.
Pump breaker starting, safety and contact light.
To be used with the different units of Fluid Mechanics Area: "FME" type modules, Fluid Friction in Pipes Equipment "AFT", etc.
연습 및 가이드
매뉴얼에 포함 된 가이드 실기 연습
- Flow measurement.
