FME02 Flow over Weirs

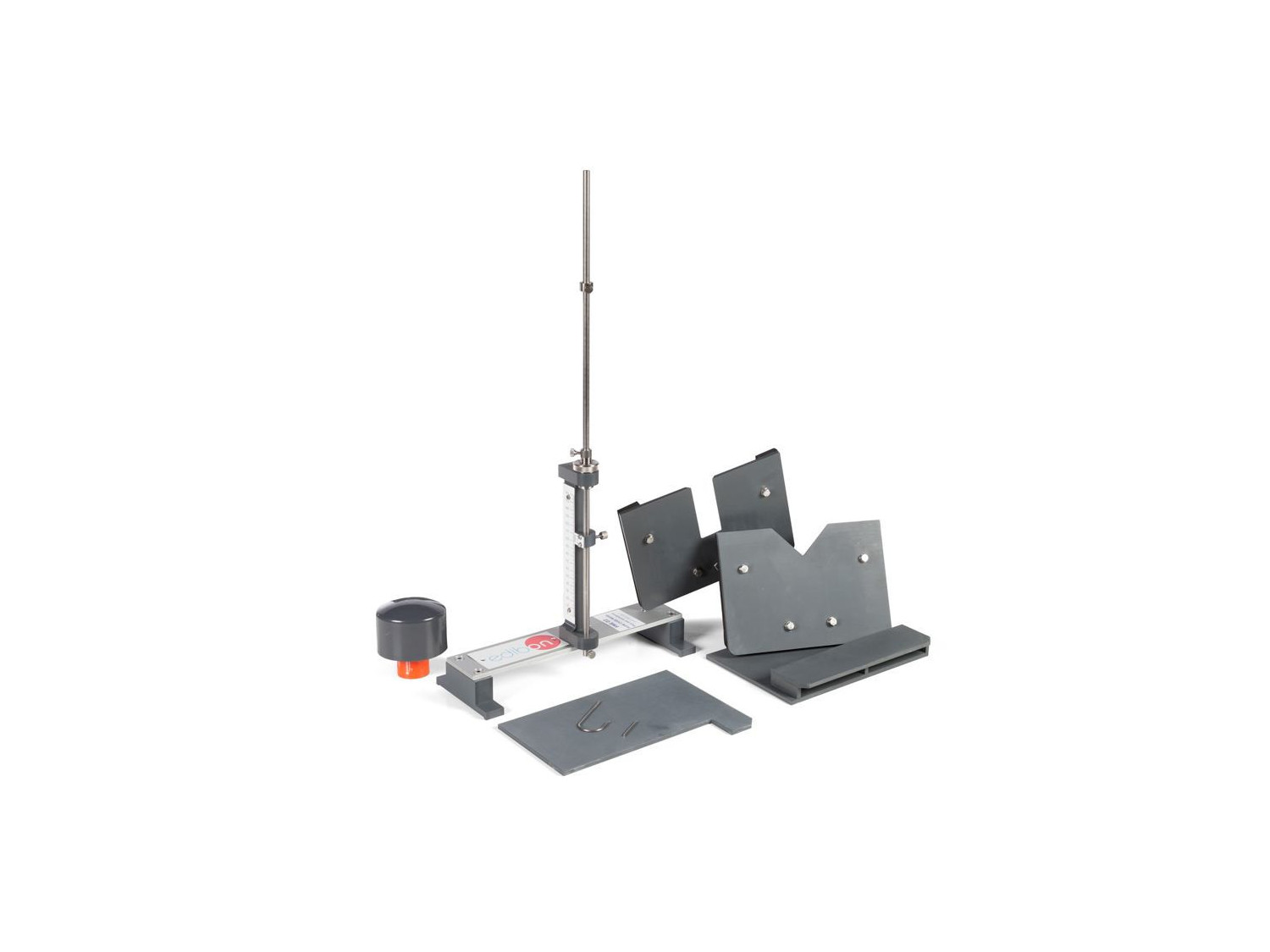

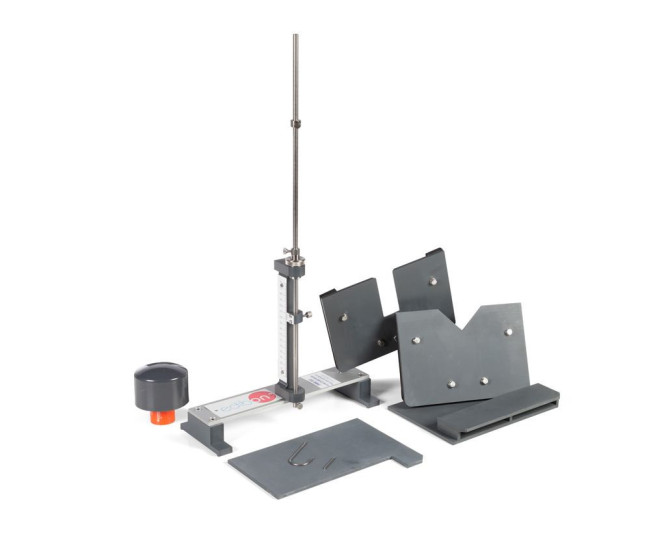

This module has many elements that are used in combination with the Hydraulics Bench (FME00):
A special mouthpiece is coupled to the outlet mouthpiece for water in the Hydraulics Bench (FME00).
Two soothing screens that, together with the previous element, provide a slow current in the channel.
A level meter consisting of a "nonius" adjusted to a mast, where the heights are pointed out on a caliber coupled to it.
A small hook or point is attached to the bottom of the mast to carry out the measures.
Two drains (a rectangular neckline and a V-shape) are attached to the final part of the channel of the Hydraulics Bench (FME00).
연습 및 가이드
매뉴얼에 포함 된 가이드 실기 연습
- Study of the flow characteristics through a weir with a rectangular neckline, made on a thin wall.
- Study of the flow characteristics through a weir with a V-shape neckline, made on a thin wall.
