The Wind Power Application with Permanent Magnets Synchronous Generator, "AEL-WPT", is an application designed by EDIBON to train the students in the main operations of wind turbines.

Посмотреть общее описание

НОВОСТИ ПО ТЕМЕ

ОБЩЕЕ ОПИСАНИЕ

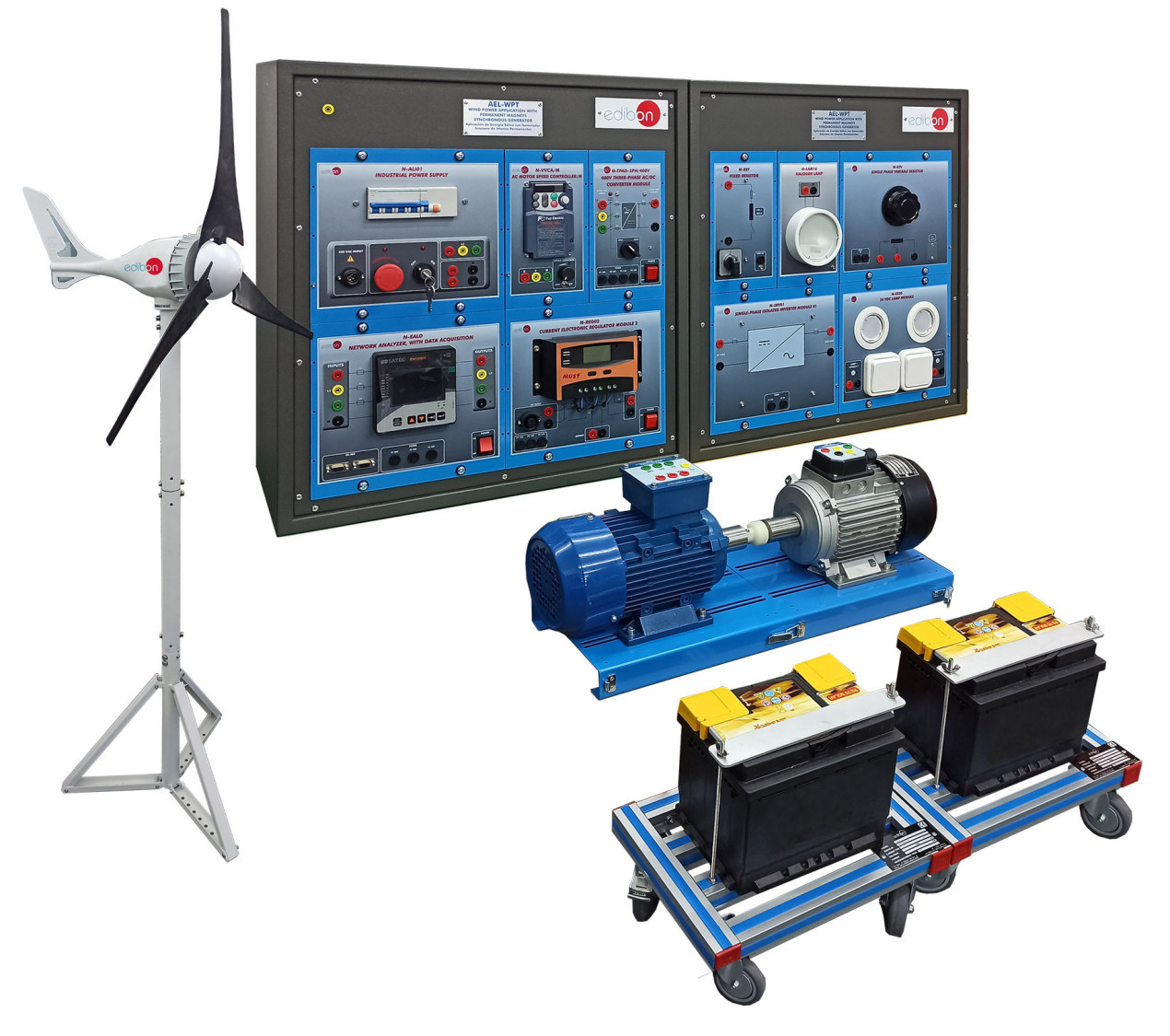

Considering the above, this application allows experimental investigation on the conversion of wind energy into electricity by means of a wind power generator. The system configuration is stand-alone (isolated from the grid). The equipment is manufactured using real components available on the market.

The Wind Power Application with Permanent Magnets Synchronous Generator, "AEL-WPT", is an application designed by EDIBON to train the students in the main operations of wind turbines.

Using a driver motor that controls on AC Permanent Magnets Synchronous Generator, the student can simulate an actual medium wind turbine with a voltage regulator, AC inverter (not included) and batteries.

The application also includes a series of resistive loads in order to be able to carry out different energy consumption and study the behaviour of the different devices. For example, the regulator manages the energy from the wind turbine while the battery is being charged and provides energy to the load. The equipment also has an AC/DC rectifier to rectify the output current of the wind turbine and take it to the charge regulator, which allows the batteries to be charged and provides DC energy to the LED lamp module included in the application.

On the other hand, it is recommended to acquire a series of modules such as the single-phase inverter, the electric grid analyzer or a real wind turbine to study AC circuits, the connection of loads and consumptions in depth. The recommended wind turbine can be located outside to observe its response to the presence of wind.

УПРАЖНЕНИЯ И ПРИМЕРЫ С ИНСТРУКЦИЯМИ

РУКОВОДСТВО ПО ПРАКТИЧЕСКИМ УПРАЖНЕНИЯМ ВКЛЮЧЕНО В РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ

  1. Voltage-speed characteristics of a wind turbine generator.
  2. Connection of energy-saving lamps to the DC circuit.
  3. Power vs wind turbine speed.
  4. Storage energy from a wind turbine into batteries.
  5. Battery charging fundamentals.
  6. Drop voltage in the wind generator.
  7. Wind turbine power supply circuit.
  8. Battery power supply circuit.

БОЛЬШЕ ПРАКТИЧЕСКИХ УПРАЖНЕНИЙ ДЛЯ РАБОТЫ С УСТРОЙСТВОМ

Some possible practices with the recommended modules N-INV01, N-LAM16 and N-EALD:

  1. Analysis of the operation of the single-phase inverter for island networks.
  2. Connection of resistive loads to the single-phase inverter and reading of currents and voltages in the different parts of the circuit.
  3. Study of the lighting circuit in AC with halogen lamp.
  4. Advanced analysis of AC circuits with the network analyser.

Some possible practices with the PMWT01 wind turbine:

  1. Connection of a real turbine.
  2. Power generation with real wind.
  3. Installation and commissioning of a real wind turbine.

Several other exercises can be done and designed by the user.
