METACENTRIC HEIGHT DEMONSTRATION - FME11

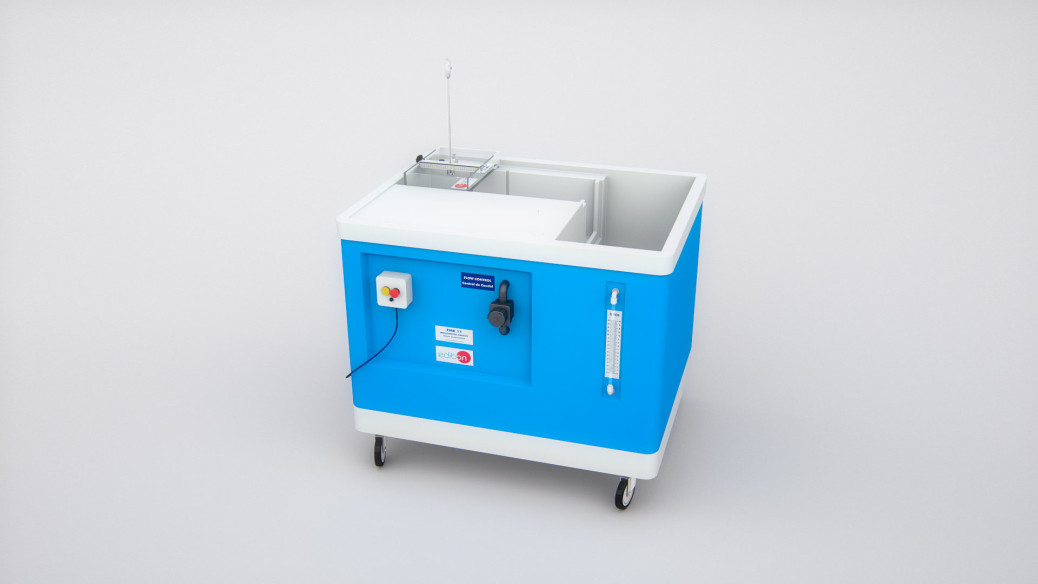

Complete FME11 Unit

FME11 Unit with service unit FME00

ИННОВАЦИОННЫЕ СИСТЕМЫ

The Metacentric Height Demonstration Unit, "FME11", designed by EDIBON, allows the study of the stability of a floating object by calculating its metacentric height.

Посмотреть общее описание

Каталог

Спецификации конкурса

Расширения

ICAI

Программное Обеспечение для Интерактивного Компьютерного Обучения

MSAC

Модульная Система Сбора и Управления

ЛАБОРАТОРИИ

8TV

Лаборатория механики жидкости для технического и профессионального образования

8HE

Лаборатория механики жидкости для высшего образования

НОВОСТИ ПО ТЕМЕ

EDIBON and its commitment to European Skills

At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.

Setting up at the University of Trinidad and Tobago

Recently, we have had the pleasure of making an installation at the University of Trinidad and Tobago

NEW Fluid Mechanics Course

Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of Fluid Mechanics and learn about #fluids properties. #DiscoverEdibon #Engineering.

ОБЩЕЕ ОПИСАНИЕ

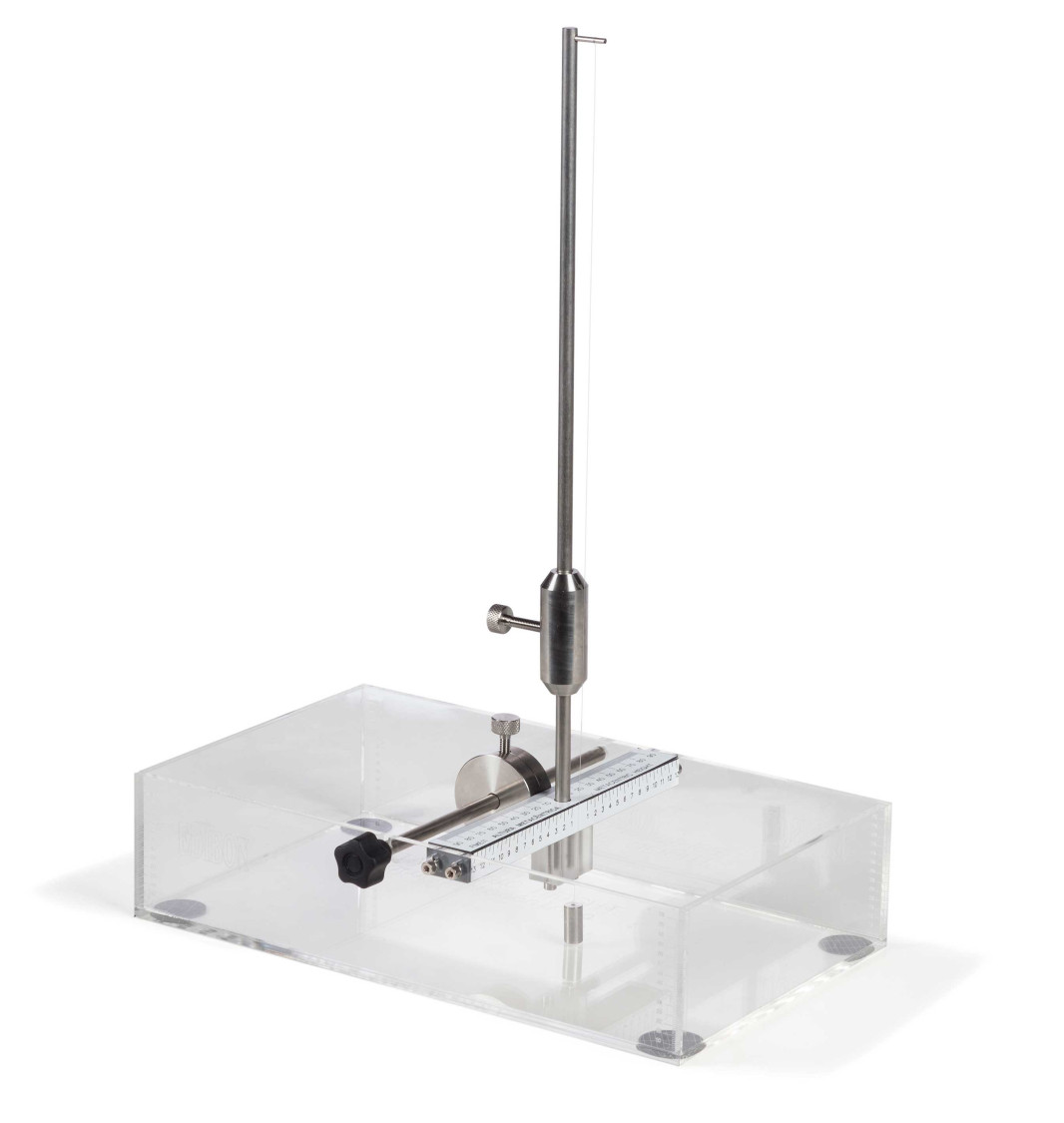

The Metacentric Height Demonstration Unit, "FME11", designed by EDIBON, allows the study of the stability of a floating object by calculating its metacentric height.

The unit consists of a floating methacrylate prismatic base, on which a vertical mast is supported, to which an adjustable movable mass has been added to change the gravity center.

A weight that can be horizontally and vertically displaced allows for modification of the floating base heel.

A plumb bob, attached to the upper part of the mast, is used to measure the angle of heel of the floating base with the aid of a graduated scale.

УПРАЖНЕНИЯ И ПРИМЕРЫ С ИНСТРУКЦИЯМИ

РУКОВОДСТВО ПО ПРАКТИЧЕСКИМ УПРАЖНЕНИЯМ ВКЛЮЧЕНО В РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ

Analytical location of the center of gravity.
Experimental location of the center of gravity (FME11).
Location of the center of buoyancy.
Location of the metacentric center with no list on the boat.
Location of the metacentric center with list on the boat with the instability method.
Location of the metacenter center with list on the boat with the variation of the center of gravity method.

НЕОБХОДИМЫЕ ЭЛЕМЕНТЫ

АНАЛОГИ ОБОРУДОВАНИЯ В НАЛИЧИИ

METACENTRIC HEIGHT DEMOSTRATION OF A "V" SHAPED FLOATING BODY - FME11-A

FME11-A

Available

8.1.3.- ГИДРОСТАТИКА

FME11-A

Демонстрация Метацентрической высоты плавающего тела в форме "V"

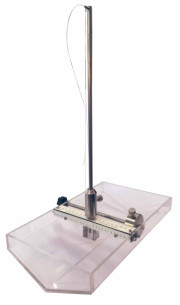

The Metacentric Height Demostration of a "V" Shaped Floating Object, "FME11-A", designed by EDIBON, allows the study of the stability of a floating object by calculating the metacentric height of a floating object starting from a V-shaped floating...

METACENTRIC HEIGHT DEMOSTRATION OF A "U" SHAPED FLOATING BODY - FME11-B

FME11-B

Available

8.1.3.- ГИДРОСТАТИКА

FME11-B

Демонстрация Метацентрической высоты плавающего тела в форме "U"

The Metacentric Height Demostration of a "U" Shaped Floating Object, "FME11-B", designed by EDIBON, allows the study of the stability of a floating object by calculating its metacentric height starting from a U-shaped floating body.The unit...

ДОПОЛНИТЕЛЬНОЕ ОБОРУДОВАНИЕ

BASIC FLUIDS MECHANICS INTEGRATED LABORATORY - LIFLUBA

LIFLUBA

Available

8.1.7.- ГИДРАВЛИЧЕСКИЕ МАШИНЫ: ТУРБИНЫ

LIFLUBA

Интегрированная лаборатория по основам механики жидкостей

Hydraulics is the branch of science that deals with the mechanical properties of fluids, and Fluid Mechanics provides the foundation for hydraulics.With LIFLUBA (Basic Fluids Mechanics Integrated Laboratory), EDIBON tries to give answer to the...

FME08

Available

8.1.3.- ГИДРОСТАТИКА

FME08

Гидростатическое давление

The Surface Pressure Unit, "FME08", designed by EDIBON, allows to study the center of pressures with a partially or totally submerged quadrant.This unit consists of a quadrant mounted on the arm of a balance that pivots around an axis.When the...

FME11-A

Available

8.1.3.- ГИДРОСТАТИКА

FME11-A

Демонстрация Метацентрической высоты плавающего тела в форме "V"

FME11-B

Available

8.1.3.- ГИДРОСТАТИКА

FME11-B

Демонстрация Метацентрической высоты плавающего тела в форме "U"

PASCAL'S PRINCIPLE DEMONSTRATION - FME33

FME33

Available

8.1.3.- ГИДРОСТАТИКА

FME33

Демонстрация принципа Паскаля

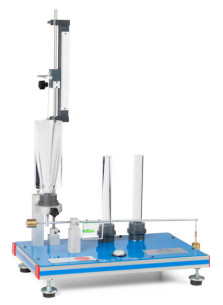

The Pascal's Principle Demonstration Unit, "FME33", designed by EDIBON, allows to demonstrate Pascal's principle, i.e. that the pressure in an incompressible fluid is independent of the column size section but depends only on its height (liquid...

FME35

Available

8.1.3.- ГИДРОСТАТИКА

FME35

Модуль свойств жидкости

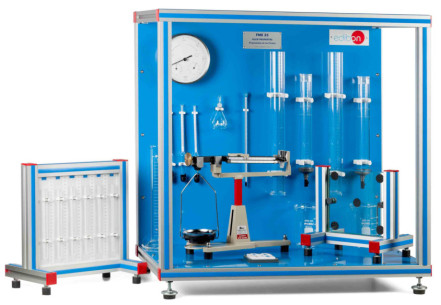

The Fluid Properties Unit, "FME35", designed by EDIBON, allows the study of the fluids fundamental properties that affect their behavior in practical applications.We can study capillarity, density and relative density (specific gravity), buoyancy...
