EDAS/VIS-1.25 Система Сбора Данных и Виртуальной Инструментации EDIBON (1 250 000 отсчётов/с)

The EDIBON Data Acquisition and Virtual Instrumentation System (speed: 1,250,000 samples/s), "EDAS/VIS-1.25", designed by EDIBON, enables the acquisition, visualization, recording, and analysis of high-frequency electrical signals from different experimental processes. The unit serves as a link between the physical phenomenon and its digital representation, facilitating understanding of high-speed sampling principles, time-domain analysis, and frequency-domain analysis in electronic and communications systems.

This system is particularly suitable for advanced training and research, as it allows work with fast signals and transient phenomena that require high sampling rates. Users can observe the real-time evolution of measured variables, analyze their dynamic behavior with high temporal resolution, and store acquired data for subsequent processing, comparison, and experimental validation.

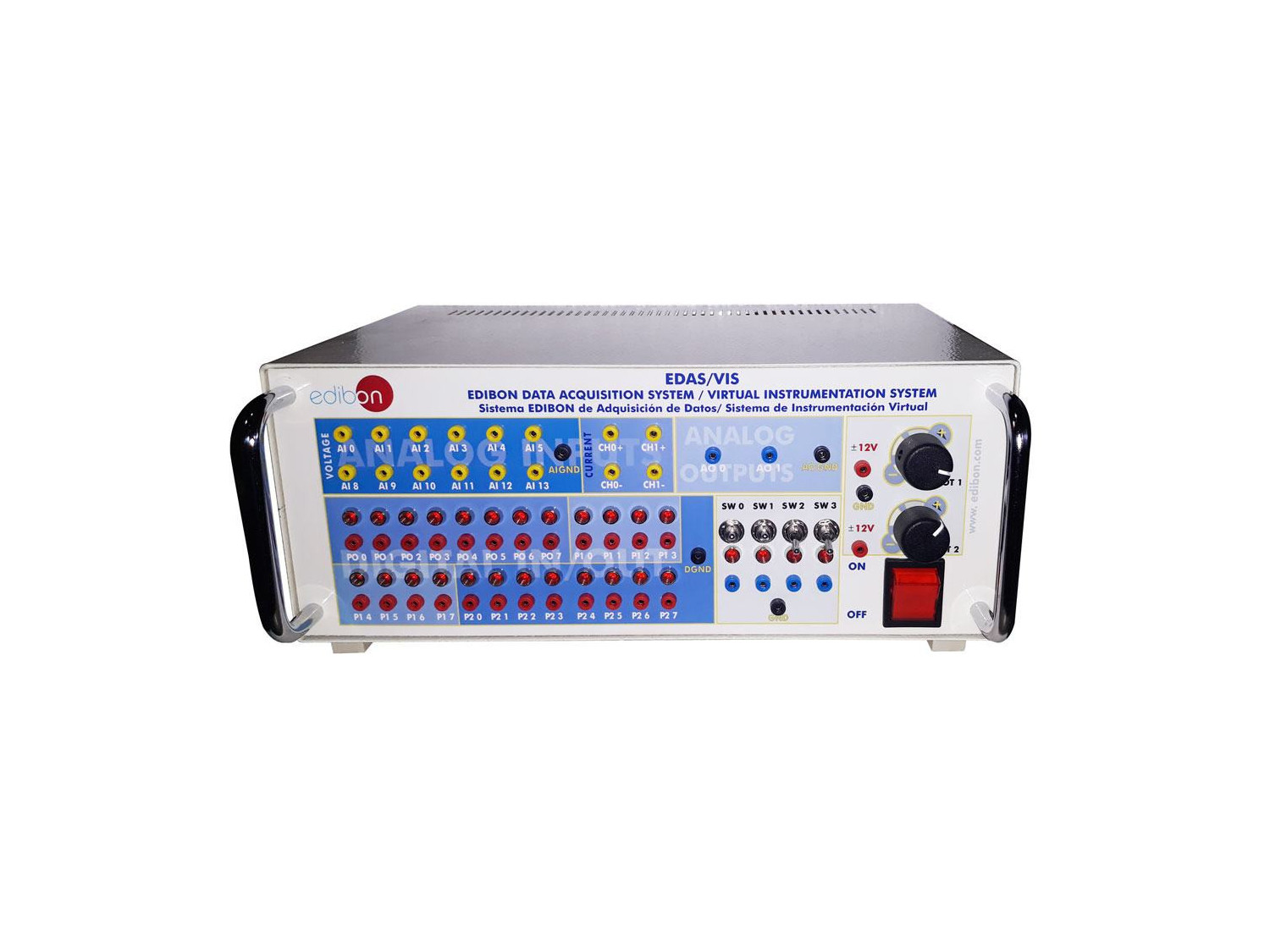

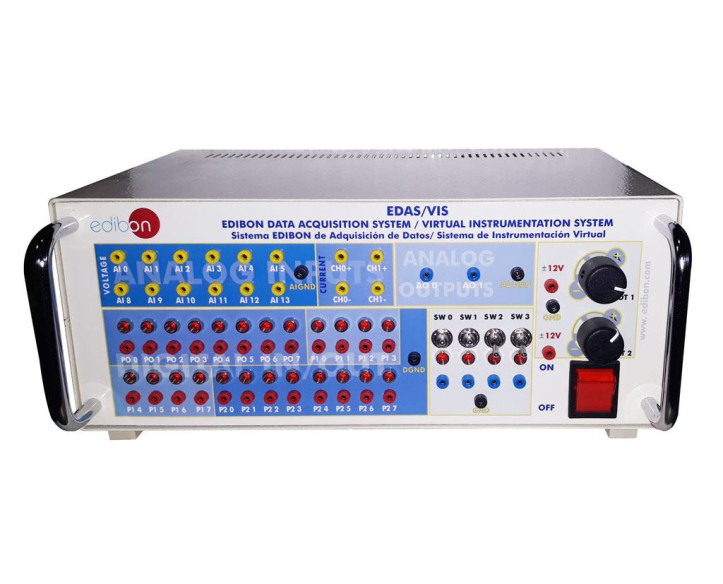

The unit consists of a data acquisition device connected to a computer and integrates analog inputs, analog outputs, digital inputs/outputs, potentiometers, and switches. This architecture provides flexible configuration and adaptation to a wide range of experimental exercises. Analog inputs enable accurate measurement of high-speed signals, while analog and digital outputs allow signal generation and control. Manual elements facilitate controlled variations during experimental tests.

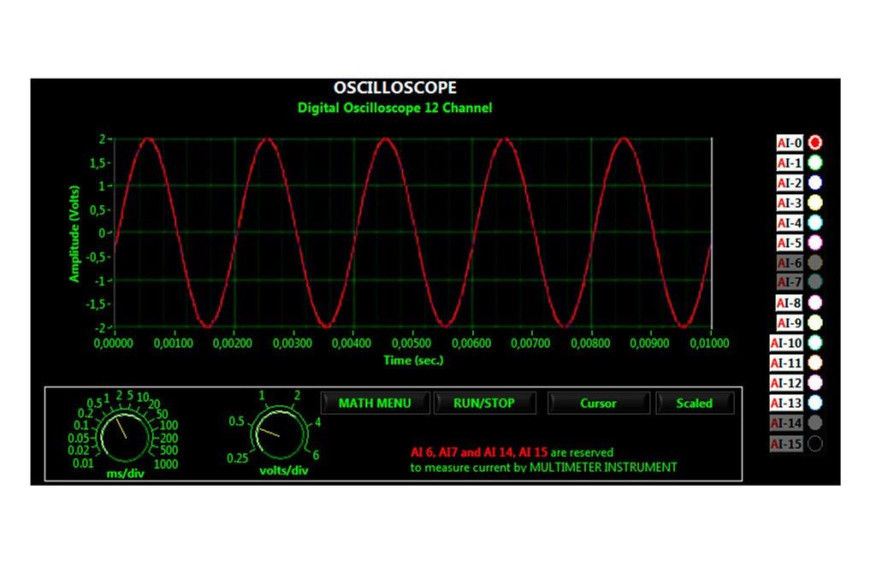

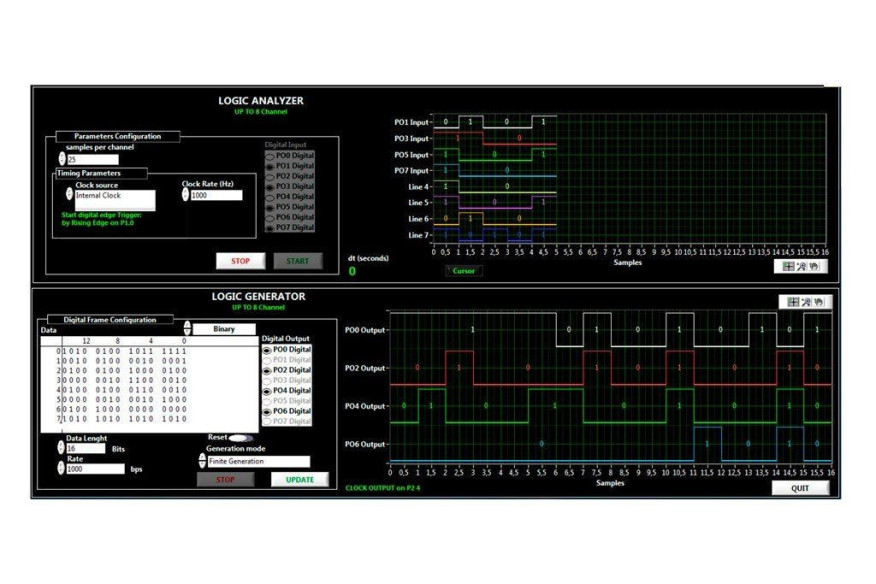

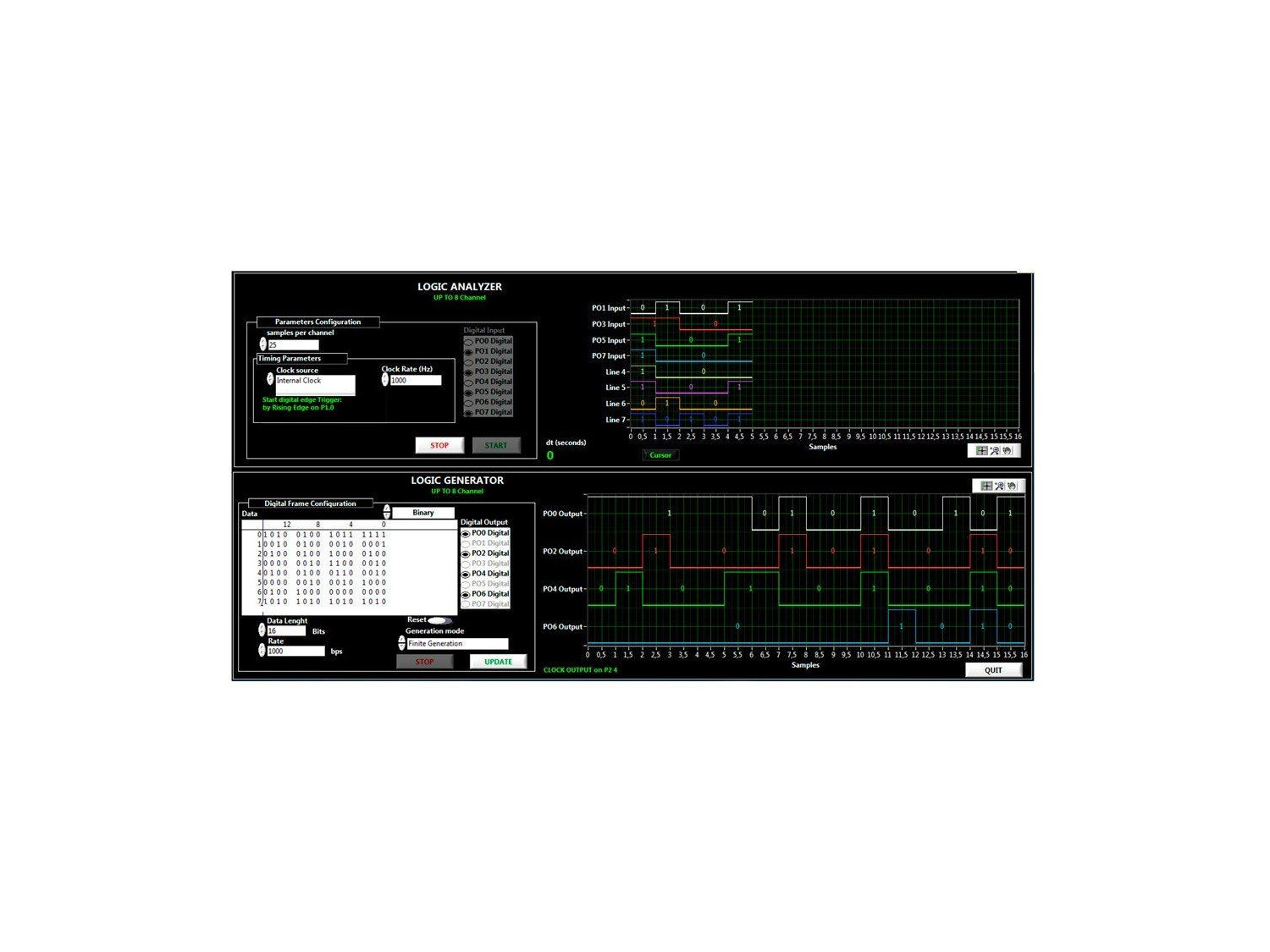

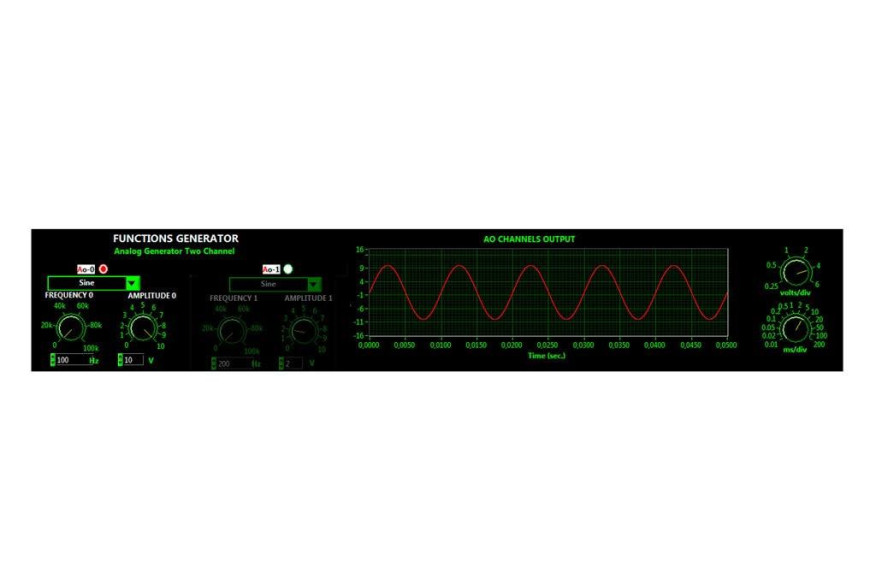

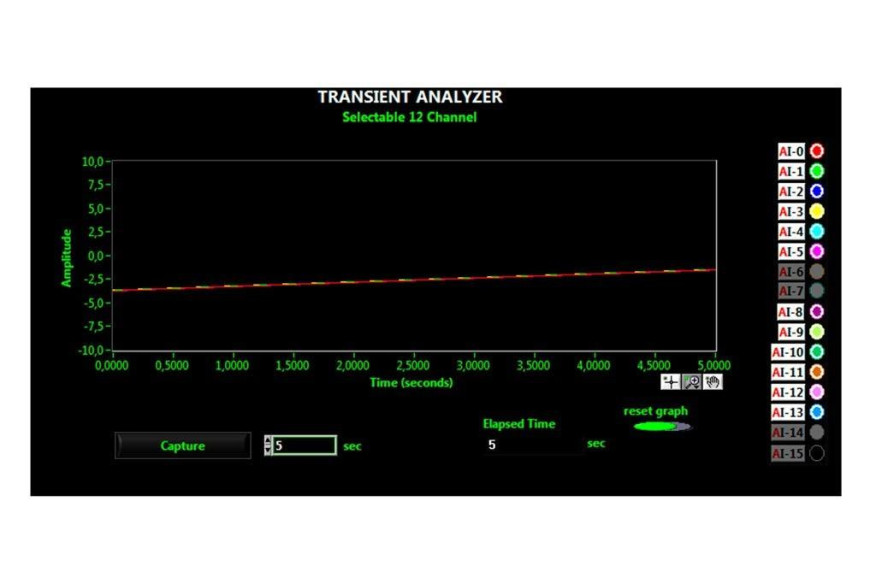

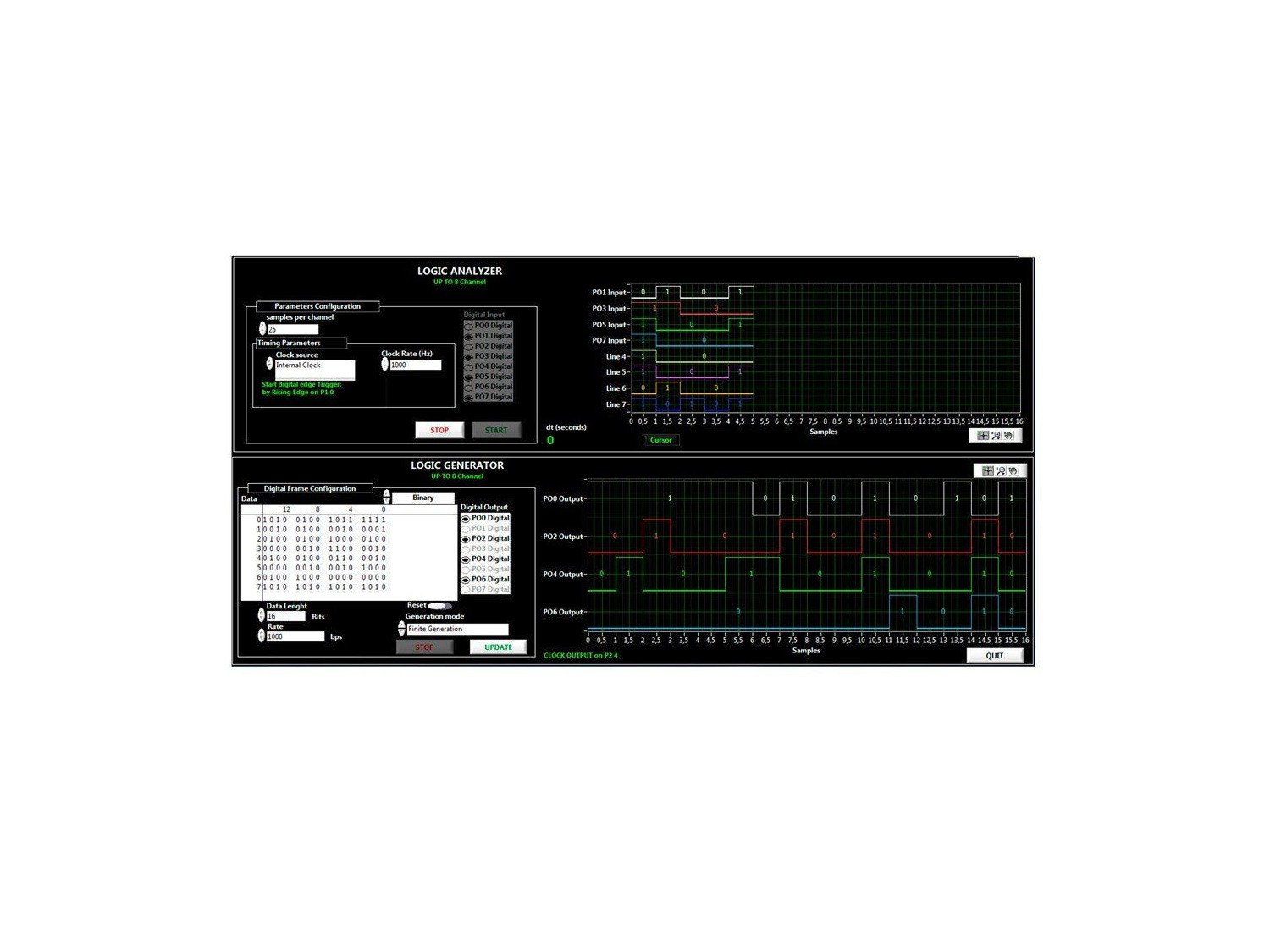

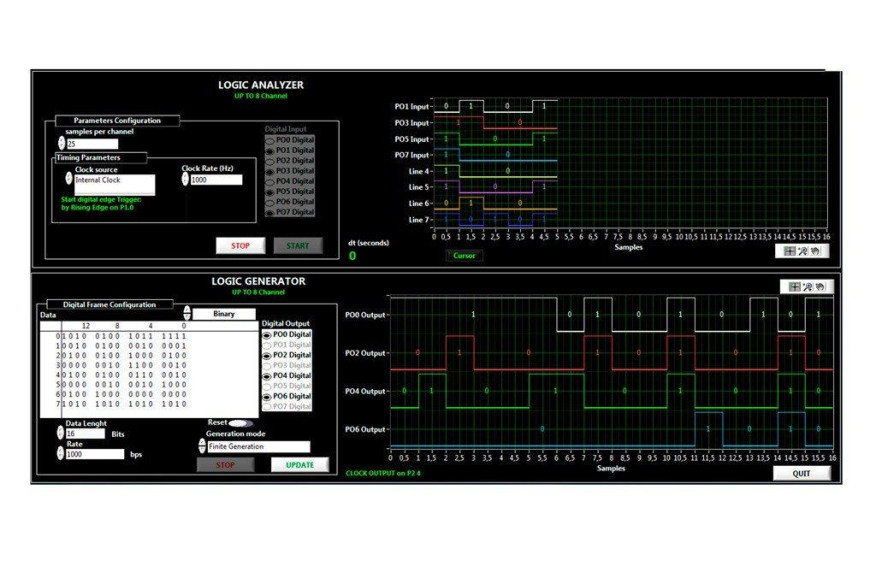

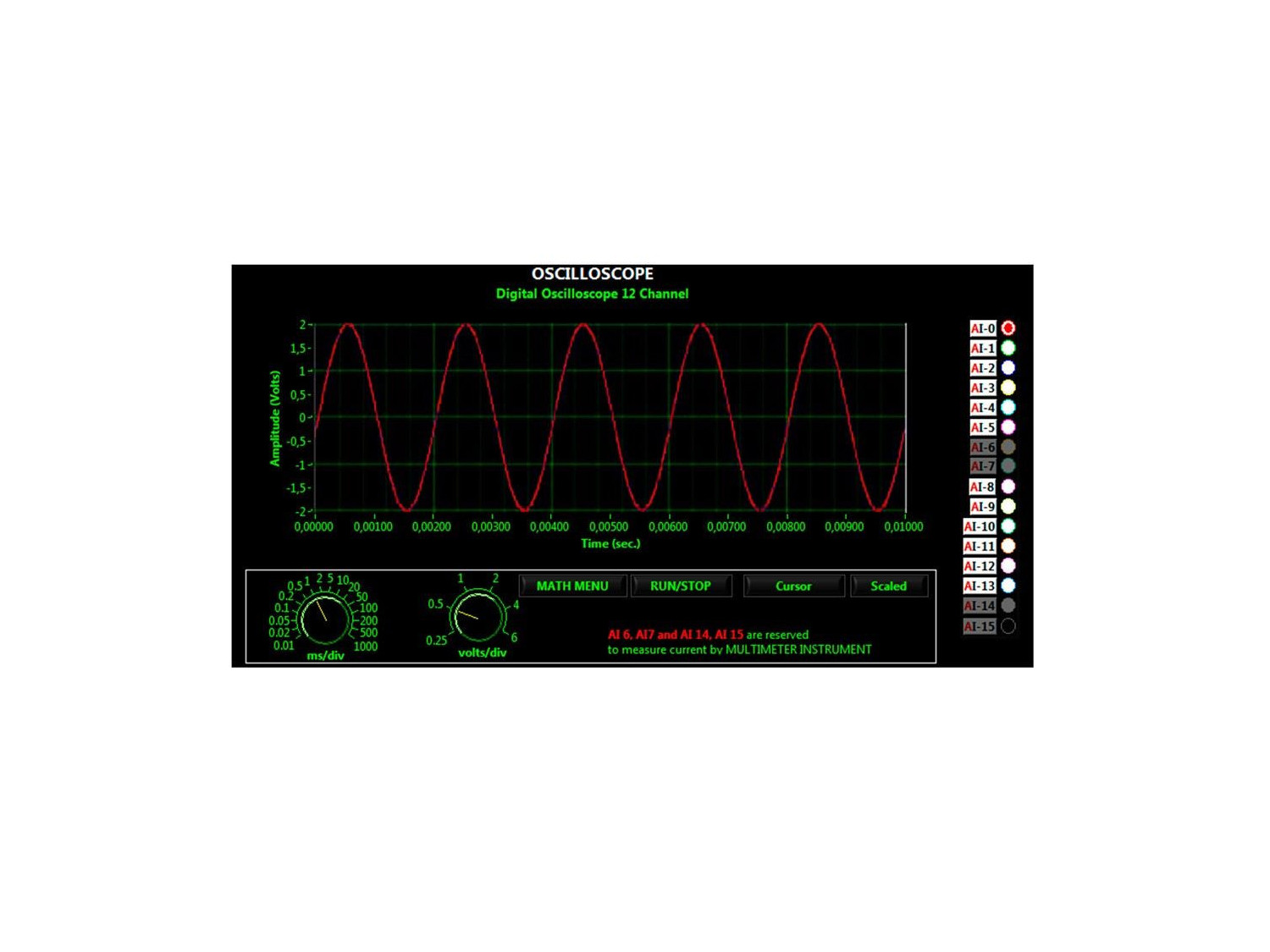

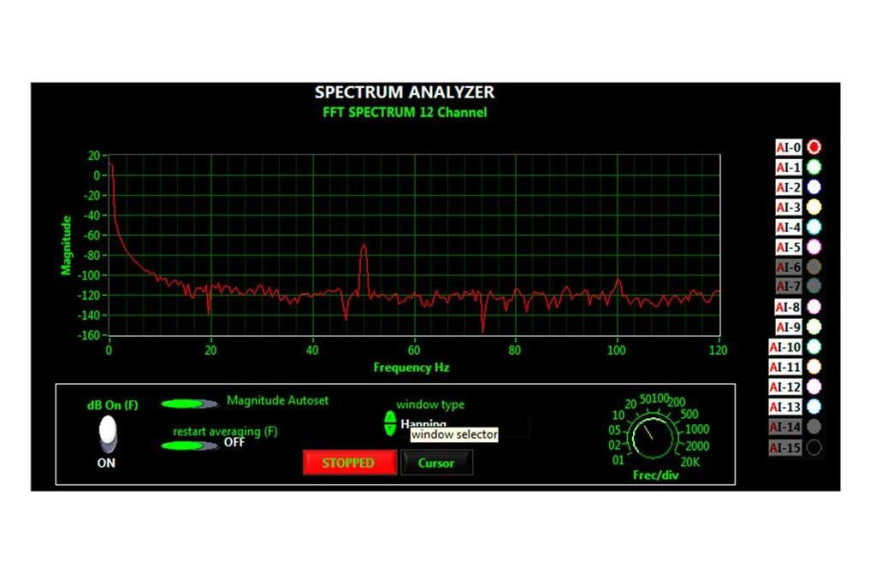

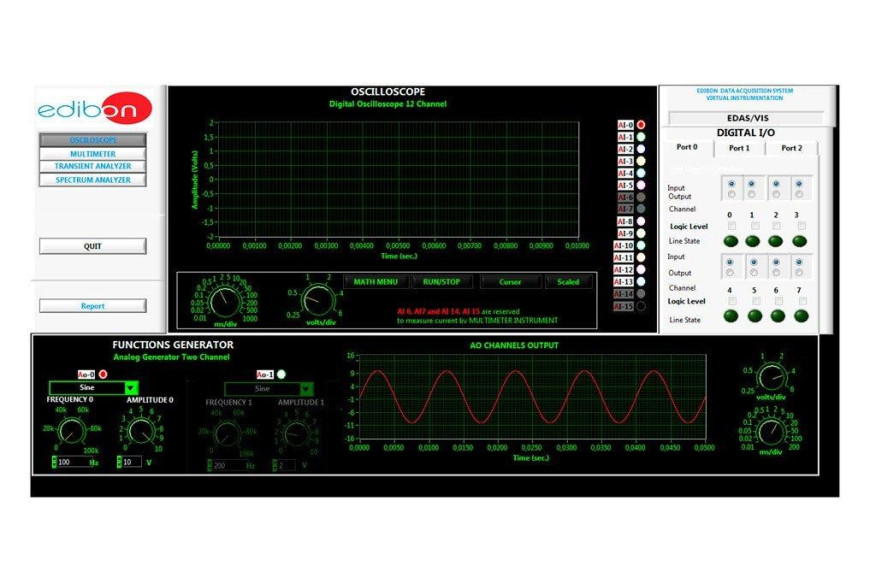

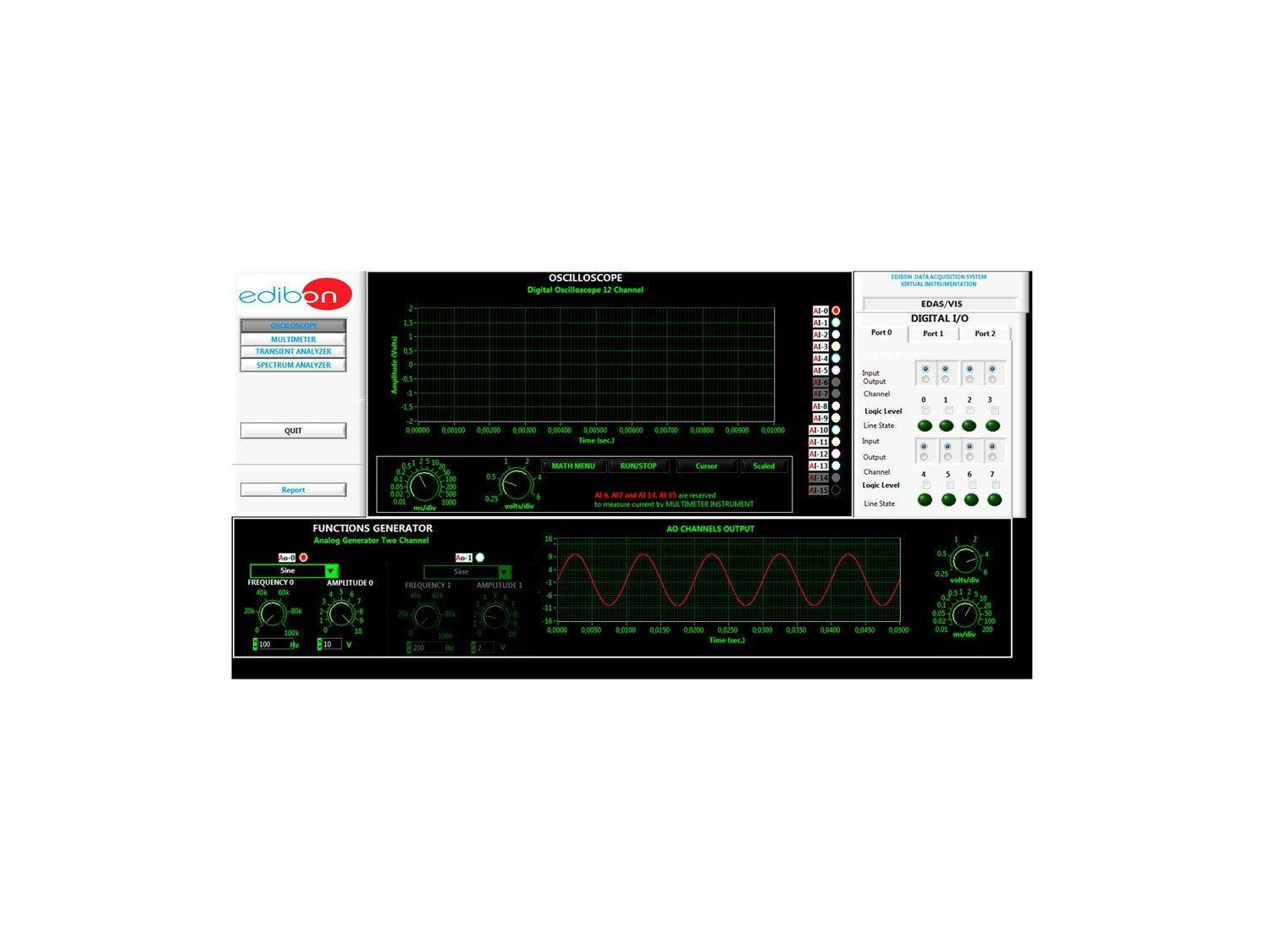

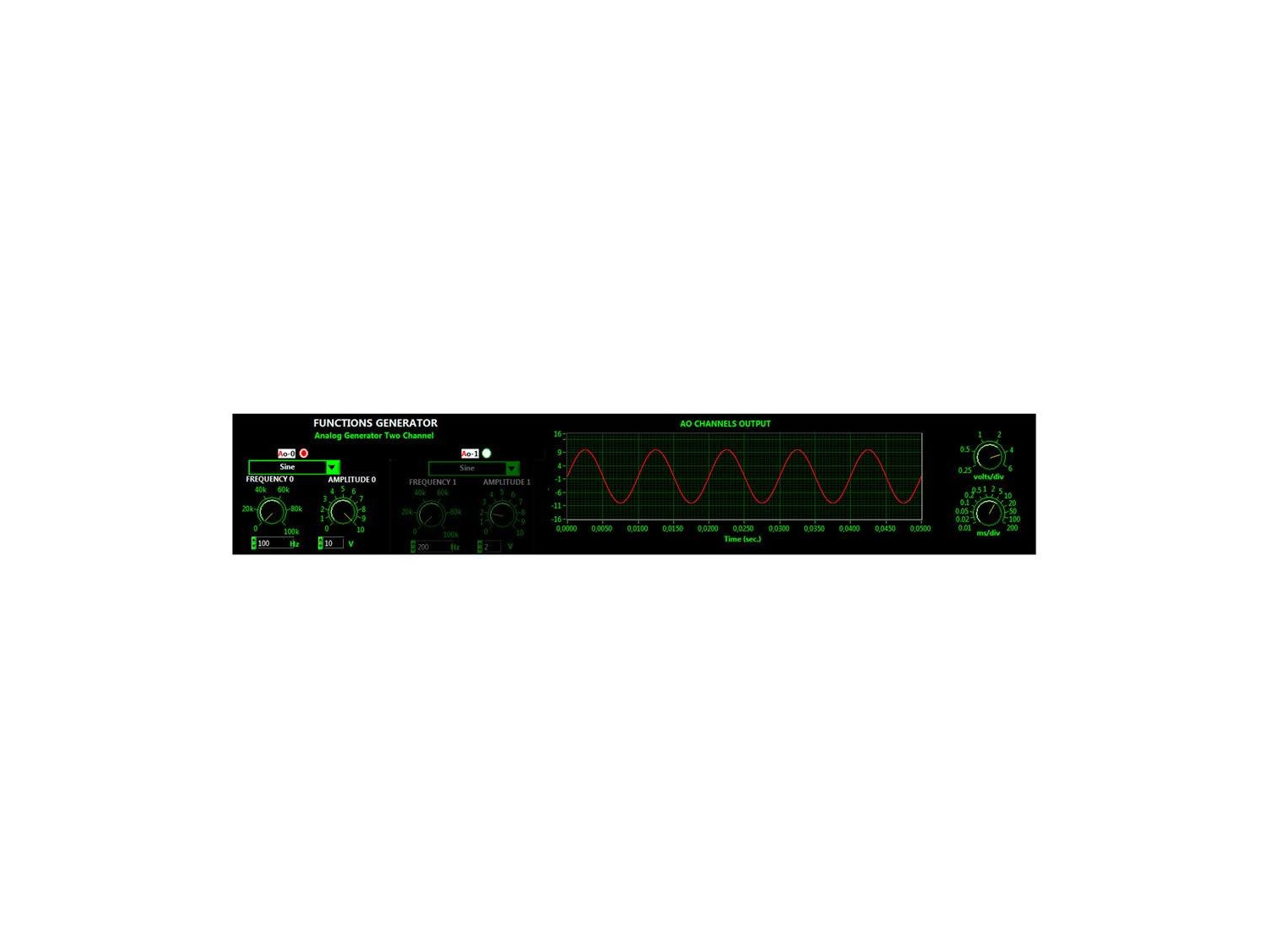

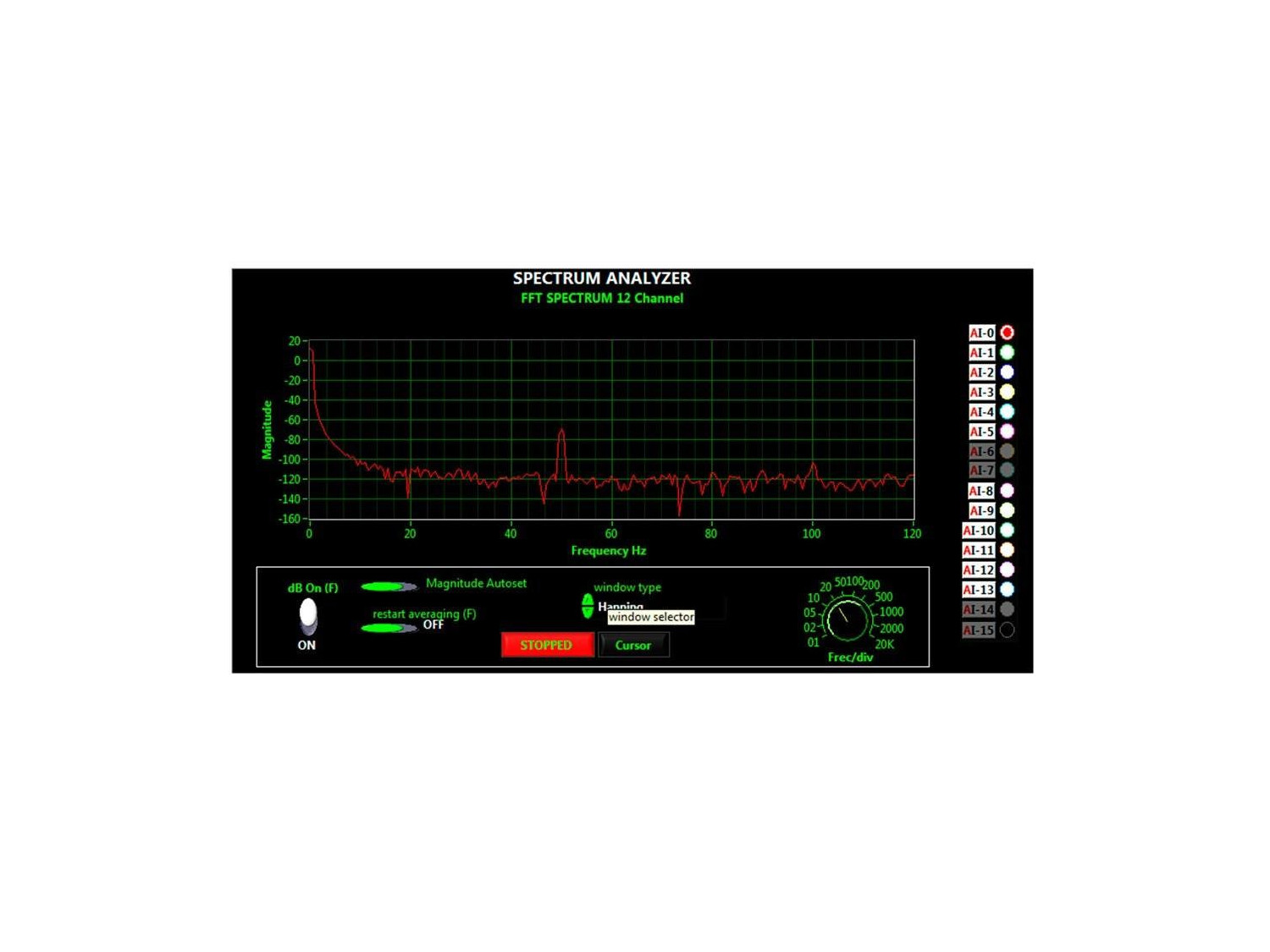

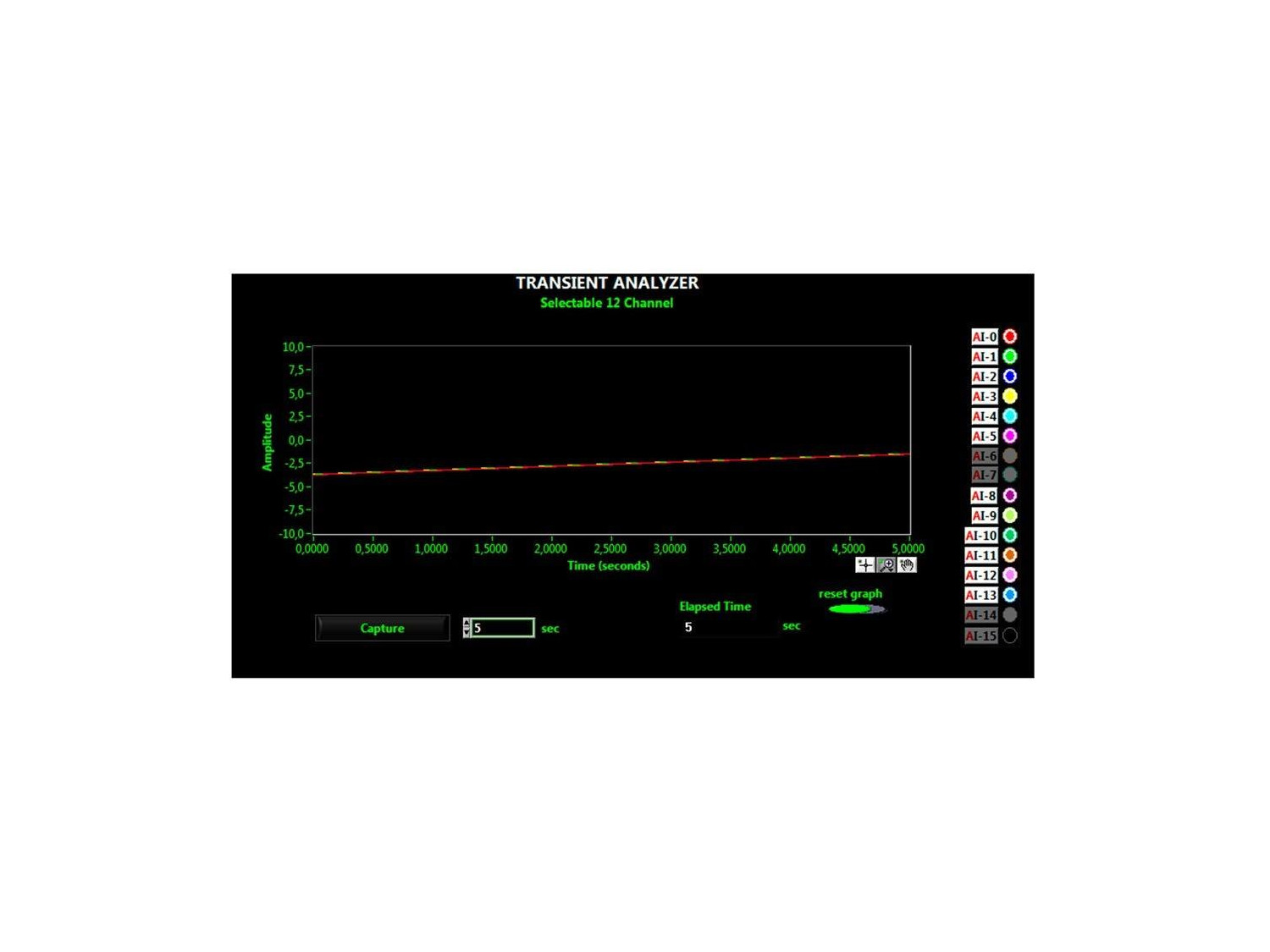

Through the associated virtual instrumentation software, the unit can be configured to operate as an oscilloscope, function generator, spectrum analyzer, multimeter, transient analyzer, and logic generator. These functionalities integrate multiple measurement and analysis techniques into a single system, avoiding the need for separate physical instruments.

The system offers different usage levels to adapt experimental work to training or research objectives. The basic level focuses on data capture and storage for later analysis. The intermediate level includes graphical tools for real-time experiment visualization. The advanced level is designed for the capture and calibration of all system sensors, providing a complete environment for detailed analysis and measurement validation.
