TAS25/100C-3B Сверхзвуковая аэродинамическая труба с компьютерным управлением (три вентилятора)
ИННОВАЦИОННЫЕ СИСТЕМЫ

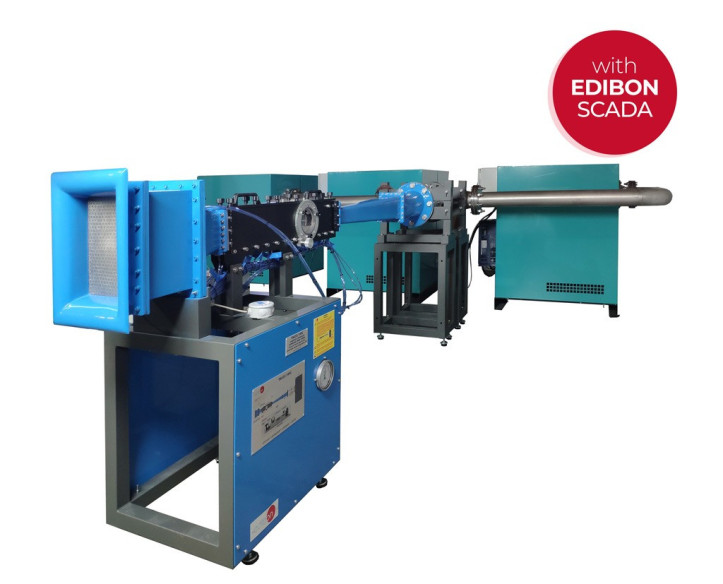

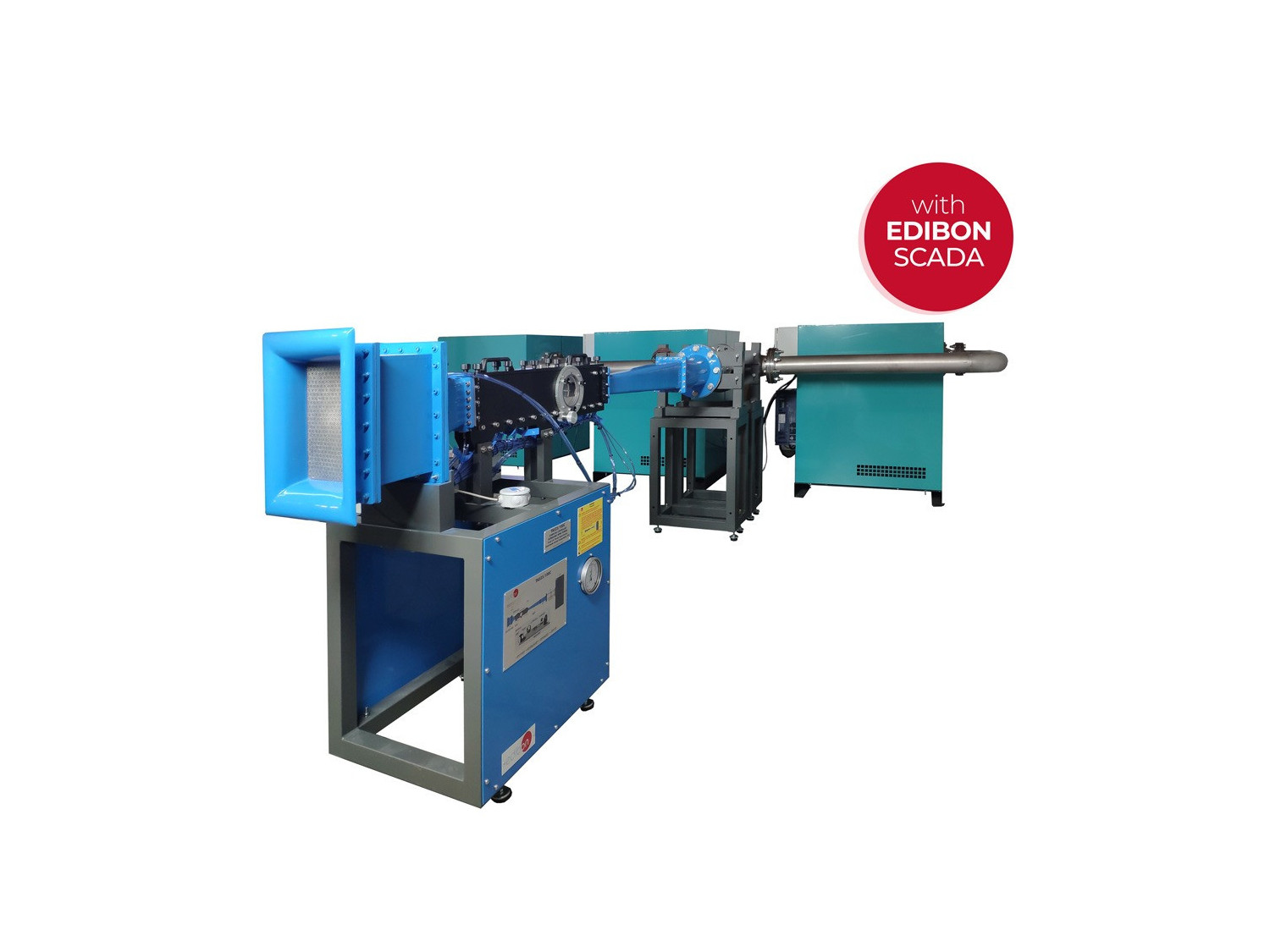

The Computer Controlled Supersonic Wind Tunnel (Three Blowers), "TAS25/100C-3B", is an open wind tunnel for the study of theaerodynamic properties of different drag bodies subject to subsonic and supersonic flows.
НОВОСТИ ПО ТЕМЕ
ОБЩЕЕ ОПИСАНИЕ
The Computer Controlled Supersonic Wind Tunnel (Three Blowers), "TAS25/100C-3B", is an open wind tunnel for the study of theaerodynamic properties of different drag bodies subject to subsonic and supersonic flows.

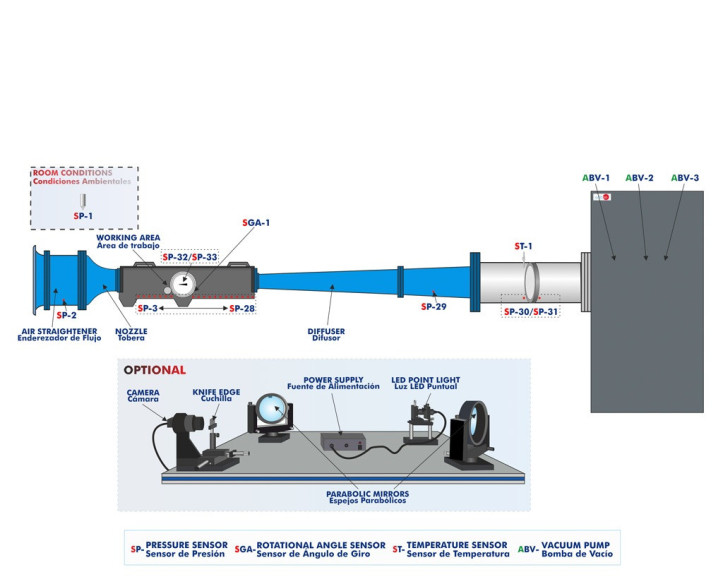

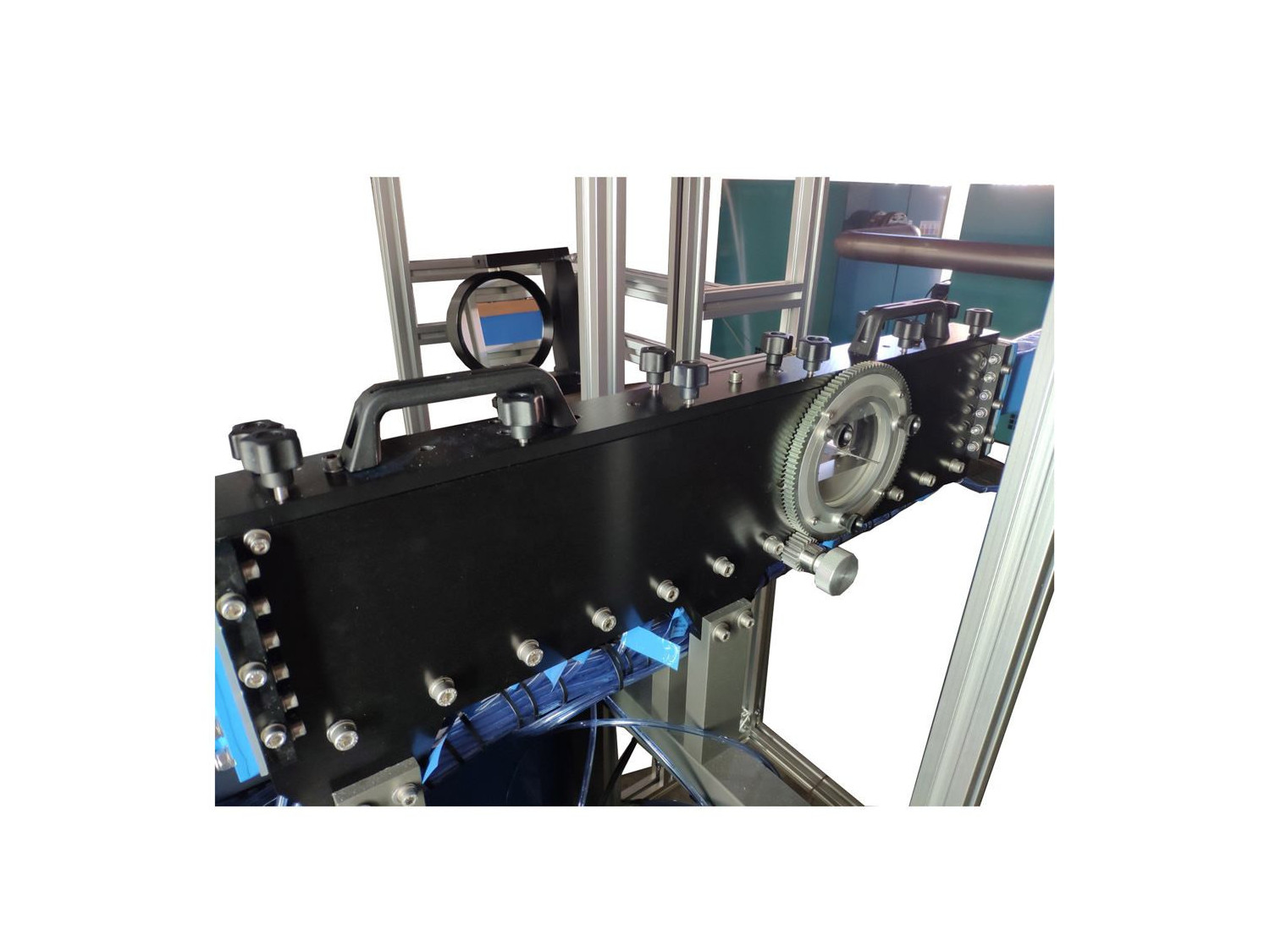

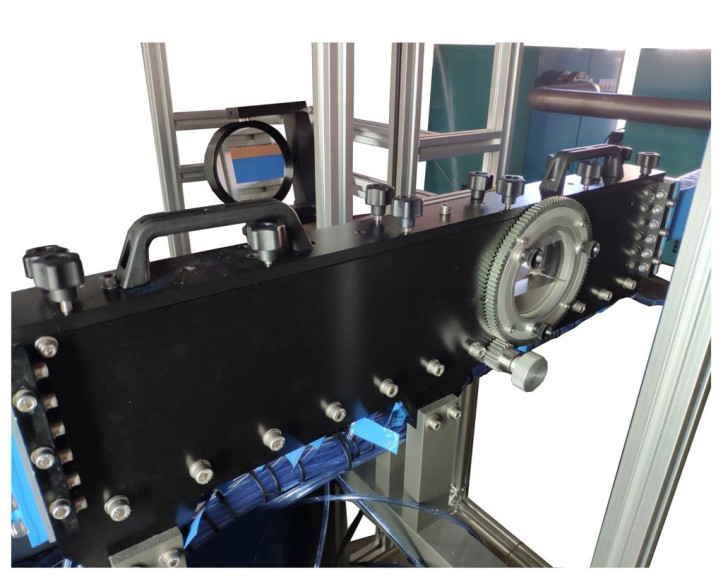

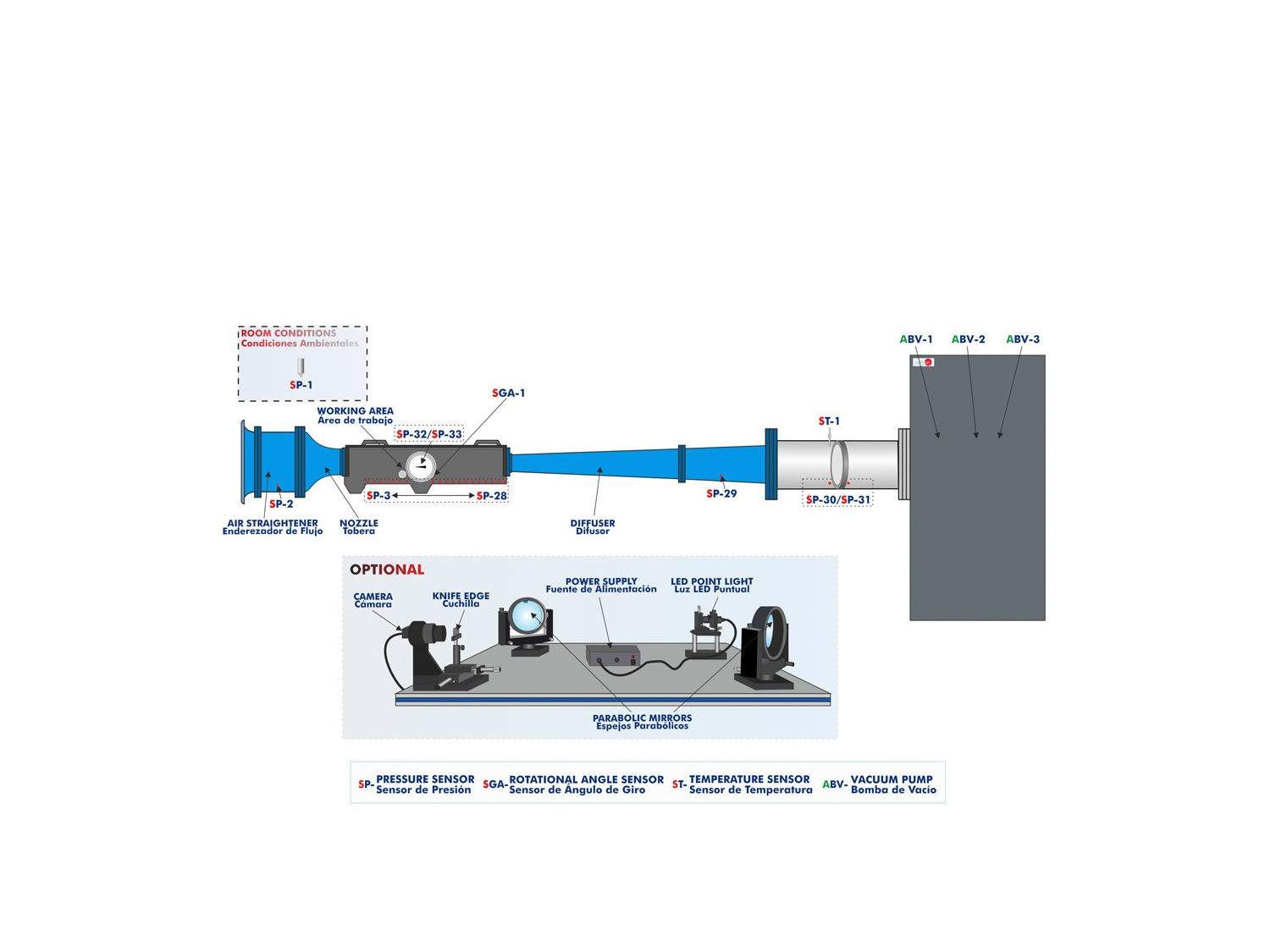

Airflows through three vacuum pumps or blowers incorporating a computer controlled powerregulator, located on the discharge side of the tunnel. The air enters the tunnel through anozzle, which has a flow rectifier where the fluid is accelerated. Then, the transparent workingsection is located, which consists of a section where the resistance models are mounted, and theaccelerated air flows around these models. The models included have different forms: rocket,projectile, wedges of different slops and double wedge with different inclinations.
There are three different upper profiles of the working section to generate different velocities upto two times the speed of sound (2 Mach).
The optional "TAS25/100-SO" accessory, an optical Schlieren system, allows you to directlyobserve and photograph the supersonic flow and shock fronts formed around the aerodynamicmodels, thus enabling a greater number of experiments.

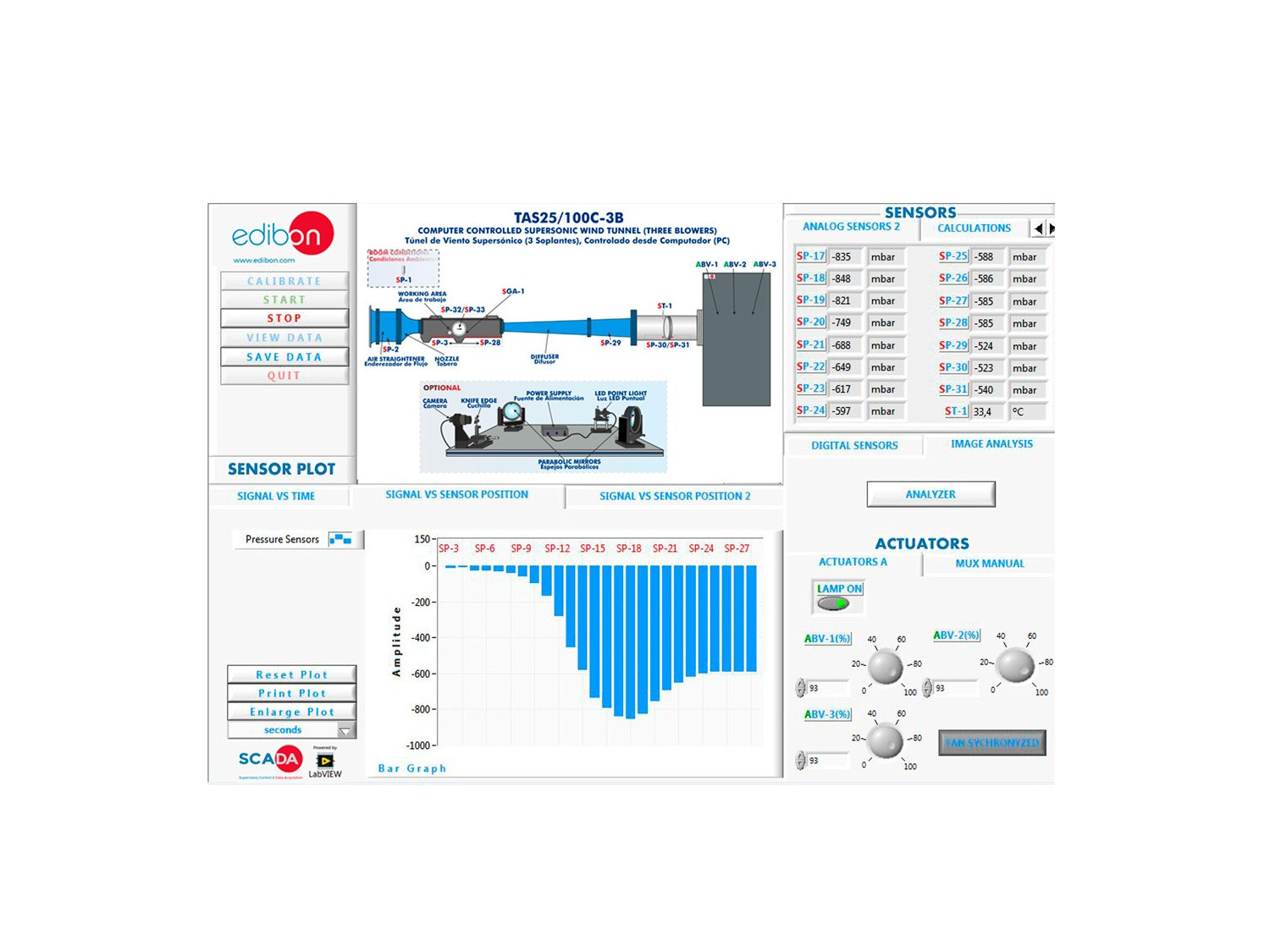

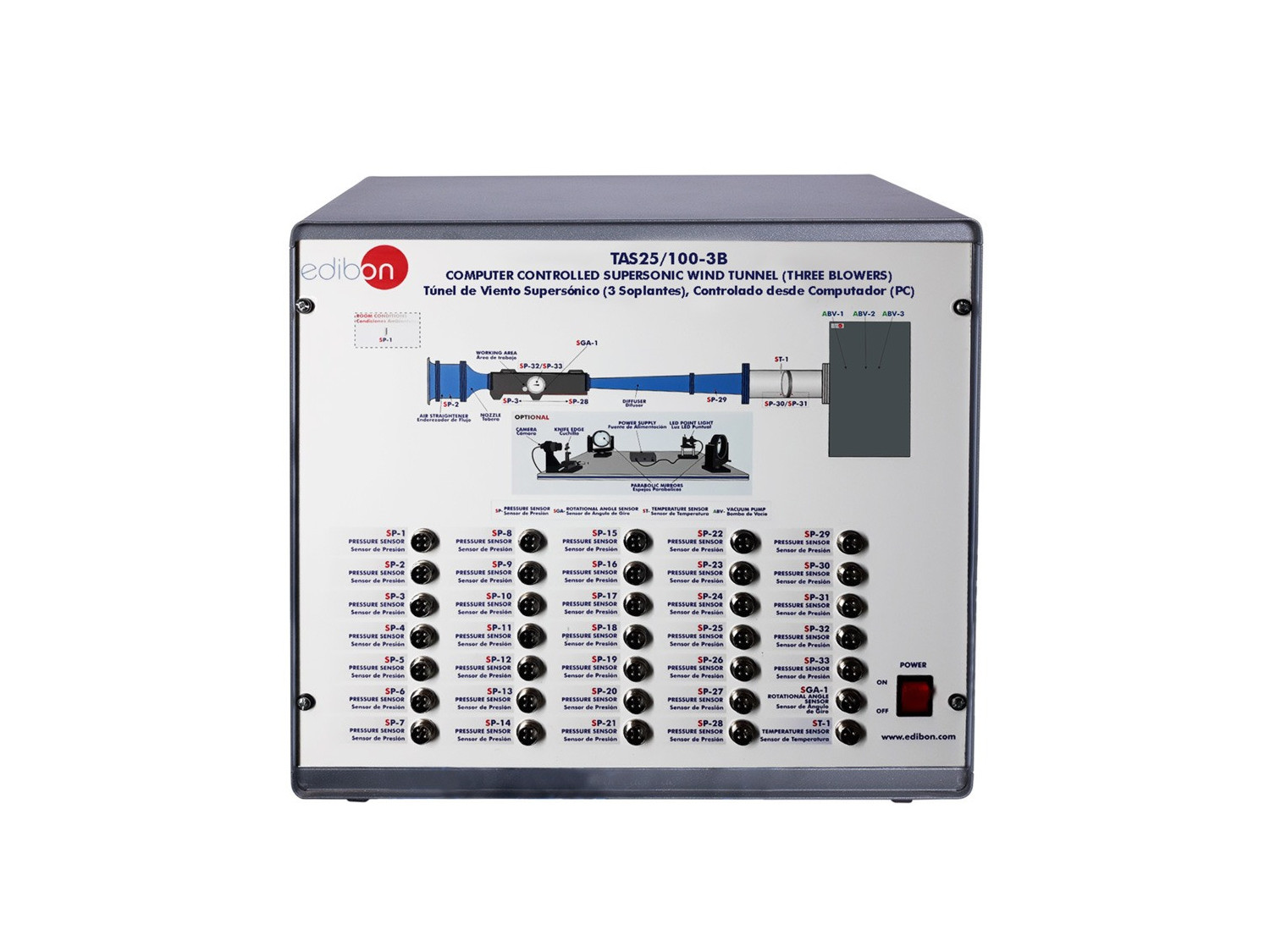

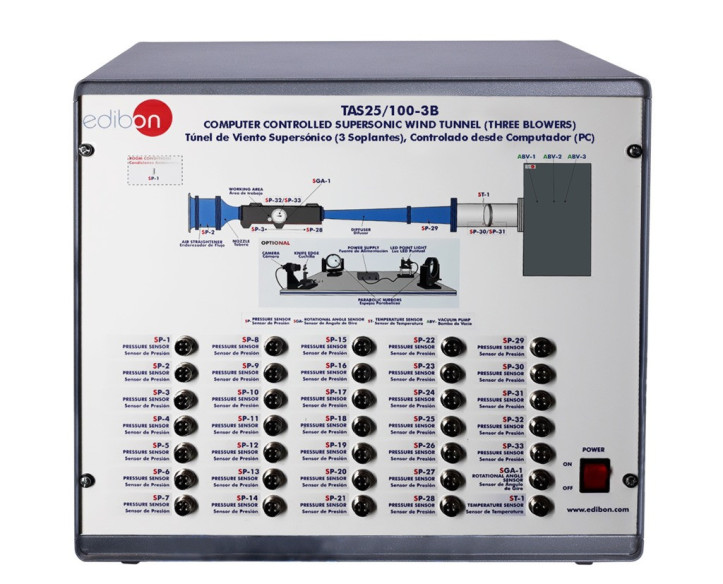

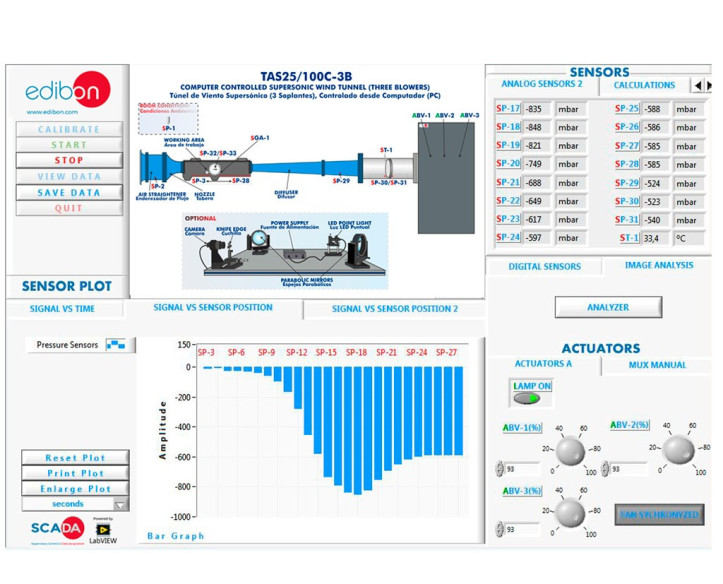

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + aControl Interface Box + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, forcontrolling the process and all parameters involved in the process.
УПРАЖНЕНИЯ И ПРИМЕРЫ С ИНСТРУКЦИЯМИ
РУКОВОДСТВО ПО ПРАКТИЧЕСКИМ УПРАЖНЕНИЯМ ВКЛЮЧЕНО В РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ
- Pressure distribution in subsonic and supersonic flows.
- Calculation of the air velocity inside a supersonic wind tunnel.
- Comparison between experimental and theoretical pressureprofile.
- Pressure distribution in a two-dimensional model under subsonicand supersonic flows.
- Influence of the attack angle on the forces exerted on a doublewedge model.
- Shock wave display (required TAS25/100-SO accessory).
- Determination of Mach number from the shock wave angle(required TAS25/100-SO accessory).
- Experimental testing of the relationship between corner angle,Mach number and shock wave angle (required TAS25/100-SOaccessory).
БОЛЬШЕ ПРАКТИЧЕСКИХ УПРАЖНЕНИЙ ДЛЯ РАБОТЫ С УСТРОЙСТВОМ
- Many students view results simultaneously.To view all results in real time in the classroom by means of aprojector or an electronic whiteboard.
- Open Control, Multicontrol and Real Time Control.This unit allows intrinsically and/or extrinsically to change thespan, gains, proportional, integral, derivative parameters, etc,in real time.
- The Computer Control System with SCADA allows a realindustrial simulation.
- This unit is totally safe as uses mechanical, electrical/electronic,and software safety devices.
- This unit can be used for doing applied research.
- This unit can be used for giving training courses to Industrieseven to other Technical Education Institutions.
- Control of the TAS25/100C-3B unit process through the controlinterface box without the computer.
- Visualization of all the sensors values used in the TAS25/100C-3B unit process.
- Several other exercises can be done and designed by the user.
