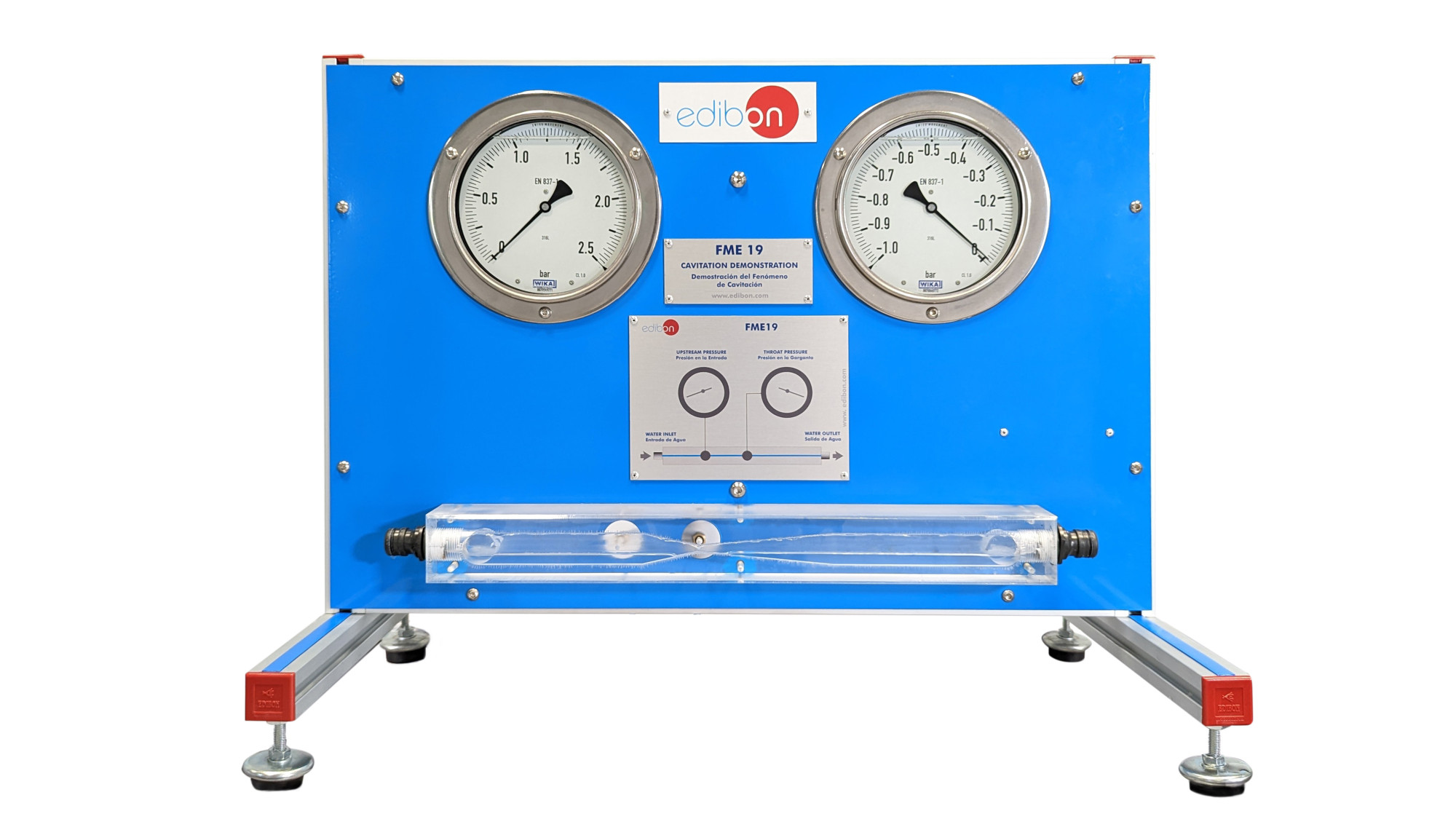

FME19 Демонстрация явления кавитации

8.1.4.- ГИДРОДИНАМИКА

CAVITATION PHENOMENON DEMONSTRATION - FME19

Complete FME19 Unit

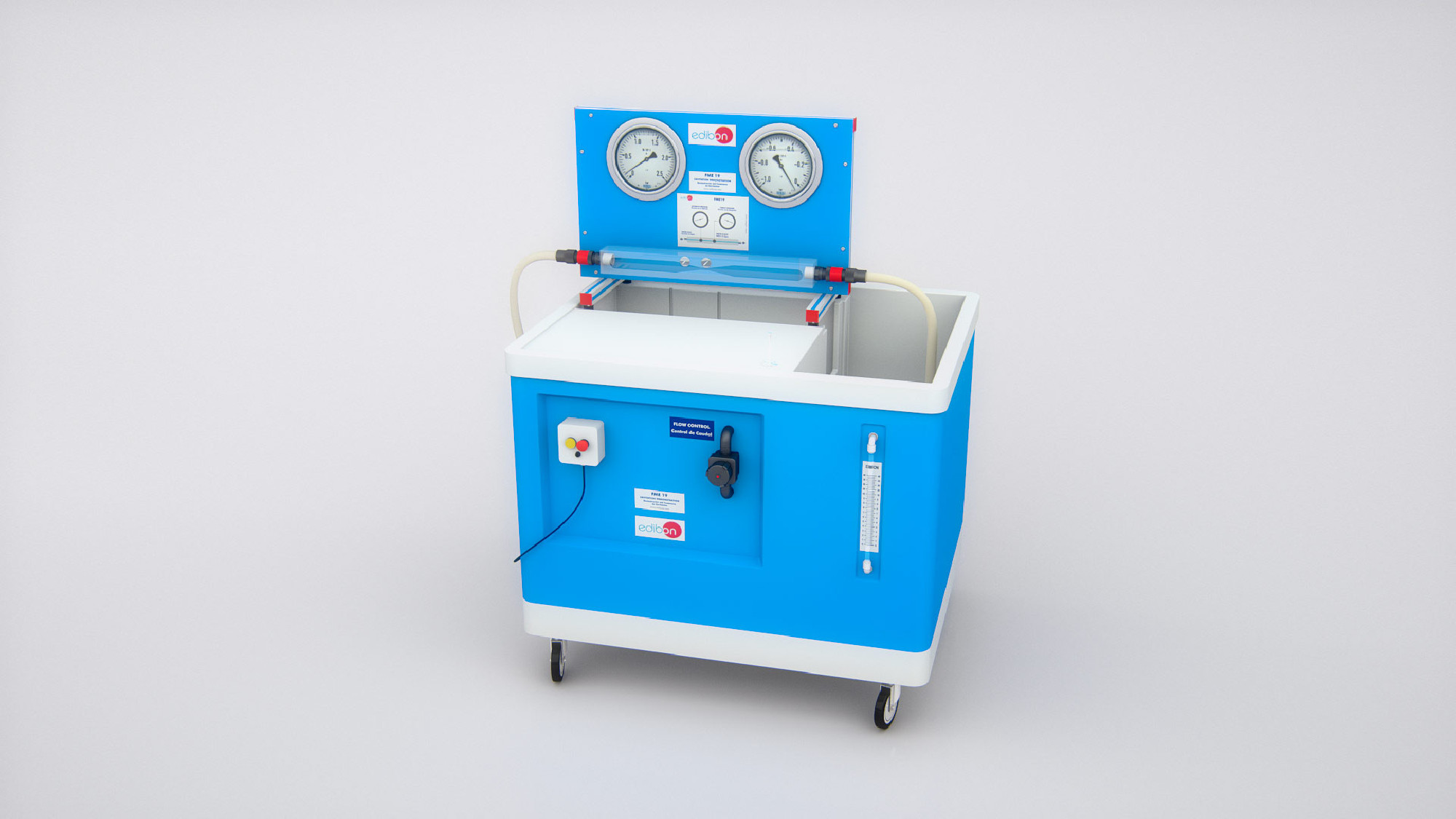

FME19 Unit with service unit FME00

ИННОВАЦИОННЫЕ СИСТЕМЫ

The Cavitation Phenomenon Demonstration unit, "FME19", designed by EDIBON is composed of a Venturi tube with a rectangular cross section, one of its sides being transparent, allowing a better visualization of the cavitation phenomenon.

Посмотреть общее описание

Каталог

Спецификации конкурса

Расширения

ICAI

Программное Обеспечение для Интерактивного Компьютерного Обучения

MSAC

Модульная Система Сбора и Управления

ЛАБОРАТОРИИ

8TV

Лаборатория механики жидкости для технического и профессионального образования

8HE

Лаборатория механики жидкости для высшего образования

НОВОСТИ ПО ТЕМЕ

ОБЩЕЕ ОПИСАНИЕ

It includes a manometer and a vacuum meter that are respectively connected to the inlet section and to the reduction throat section.

The existing pressure in the Venturi sections is transmitted by thin capillary tubes placed at the back of the frame.

УПРАЖНЕНИЯ И ПРИМЕРЫ С ИНСТРУКЦИЯМИ

РУКОВОДСТВО ПО ПРАКТИЧЕСКИМ УПРАЖНЕНИЯМ ВКЛЮЧЕНО В РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ

Study of cavitation.
Visualization of the cavitation phenomenon with forced conduction.
