COMPUTER CONTROLLED THERMAL RADIATION AND LIGHT RADIATION UNIT - TRTC

혁신적인 시스템

The Computer Controlled Thermal Radiation and Light Radiation Unit, "TRTC", has been designed to demonstrate the laws of radiant heat transfer and radiant heat exchange.

일반적인 설명보기

확장

ICAI

Interactive Computer Aided Instruction Software
FSS

Fault Simulation System
PLC

를 위한 PLC에 의한 산업 공정 제어
PLCHMI

IIoT local/remote Control and Monitoring with HMI
ELK

EDIBON Software Development KIT, Powered by NI LabVIEW™
ECR

EDIBON Industrial Modular System with NI CompactRIO
ESN

EDIBON Scada-Net
ECL

EDIBON Cloud Learning

실험실

11PTC
 석유 연수원 연구실
9TV
 기술 및 직업 교육을위한 열역학 및 열공학 실험실
9HE
 고등 교육을위한 열역학 및 열공학 실험실

일반적인 설명

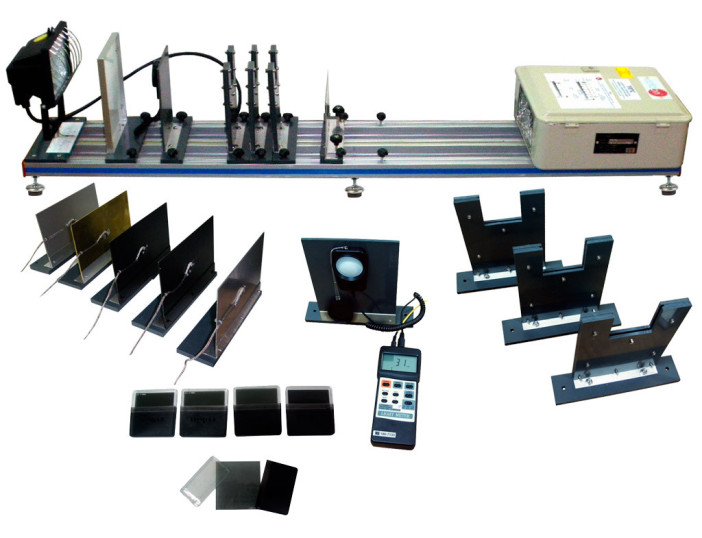

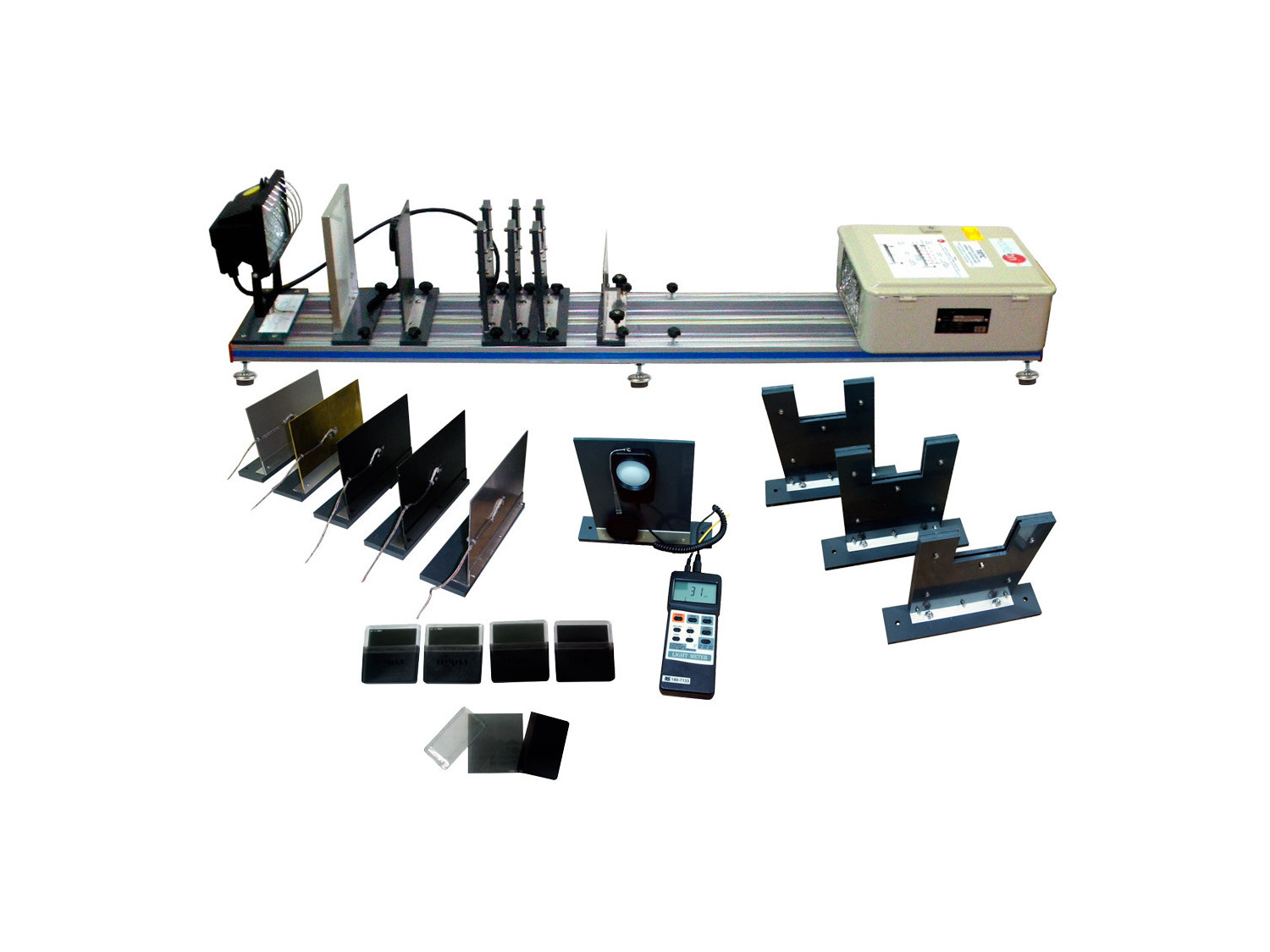

The Computer Controlled Thermal Radiation and Light Radiation Unit, "TRTC", has been designed to demonstrate the laws of radiant heat transfer and radiant heat exchange.

It basically consists in two independent parts. One of the parts is for the light radiation experiments and another part is for the thermal radiation experiments.

The elements provided with the unit allow making the measuring of the temperature, radiation, intensity of light and the power in the heating element or bulb.

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + a Control Interface Box + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.

연습 및 가이드

매뉴얼에 포함 된 가이드 실기 연습

  1. Inverse of the distant square law for the radiation.
  2. Stefan Boltzmann Law.
  3. Emission power I.
  4. Emission power II.
  5. Kirchorff ’s Law.
  6. Area factors.
  7. Inverse of the distant square law for the light.
  8. Lambert’s Cosine Law.
  9. Lambert’s Law of Absorption.
  10. Thickness effect of the absorption phenomena.
  11. Sensors calibration

장비로 수행 할 수있는 더 많은 실용적 연습

  1. Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
  2. Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivative parameters, etc, in real time.
  3. The Computer Control System with SCADA and PID Control allow a real industrial simulation.
  4. This unit is totally safe as uses mechanical, electrical and electronic, and software safety devices.
  5. This unit can be used for doing applied research.
  6. This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
  7. Control of the TRTC unit process through the control interface box without the computer.
  8. Visualization of all the sensors values used in the TRTC unit process.
  9. By using PLC-PI additional 19 more exercises can be done.
  10. Several other exercises can be done and designed by the user.
