TXC/FF 자유 및 강제 대류에 의한 열전달 장비 (TSTCC용)

9.6.- 열전달
FREE AND FORCED CONVECTION HEAT TRANSFER MODULE FOR TSTCC - TXC/FF

혁신적인 시스템

TXC/FF. This unit allows to study the efficiency of different exchangers, analyzing the heat transfer coefficients of each of the exchangers exposed to different airflows.

일반적인 설명보기

확장

ICAI

상호작용형 컴퓨터 지원 교육 소프트웨어
FSS

고장 시뮬레이션 시스템
PLC

PLC에 의한 산업 프로세스 제어
PLCHMI

HMI와 함께하는 로컬/원격 IIoT 제어 및 모니터링
ELK

EDIBON 소프트웨어 개발 키트, NI LabVIEW™에서 제공하는 기능
ECR

NI CompactRIO를 사용한 EDIBON의 산업용 모듈식 시스템
ESN

EDIBON SCADA-Net
ECL

EDIBON 원격 교육

실험실

11PTC
 석유 연수원 연구실
9TV
 기술 및 직업 교육을위한 열역학 및 열공학 실험실
9HE
 고등 교육을위한 열역학 및 열공학 실험실

관련 뉴스

Thermodynamics and Thermotechnology: Key concepts and EDIBON's contribution
Thermodynamics and Thermotechnology: Key concepts and EDIBON's contribution
Thermodynamics and thermotechnology are fundamental fields of engineering that play a critical role across various industries, from energy generation to climate control. Understanding these foundational concepts is essential not only for engineers but also for fostering technological innovations...
더 읽어보기

일반적인 설명

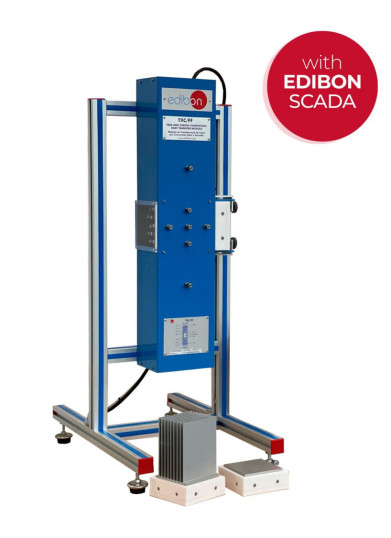

TXC/FF. Free and Forced Convection Heat Transfer Unit for TSTCC: study of the performance of different exchangers, analysing the heat transmission coefficients of each of the exchangers exposed to different air flows.

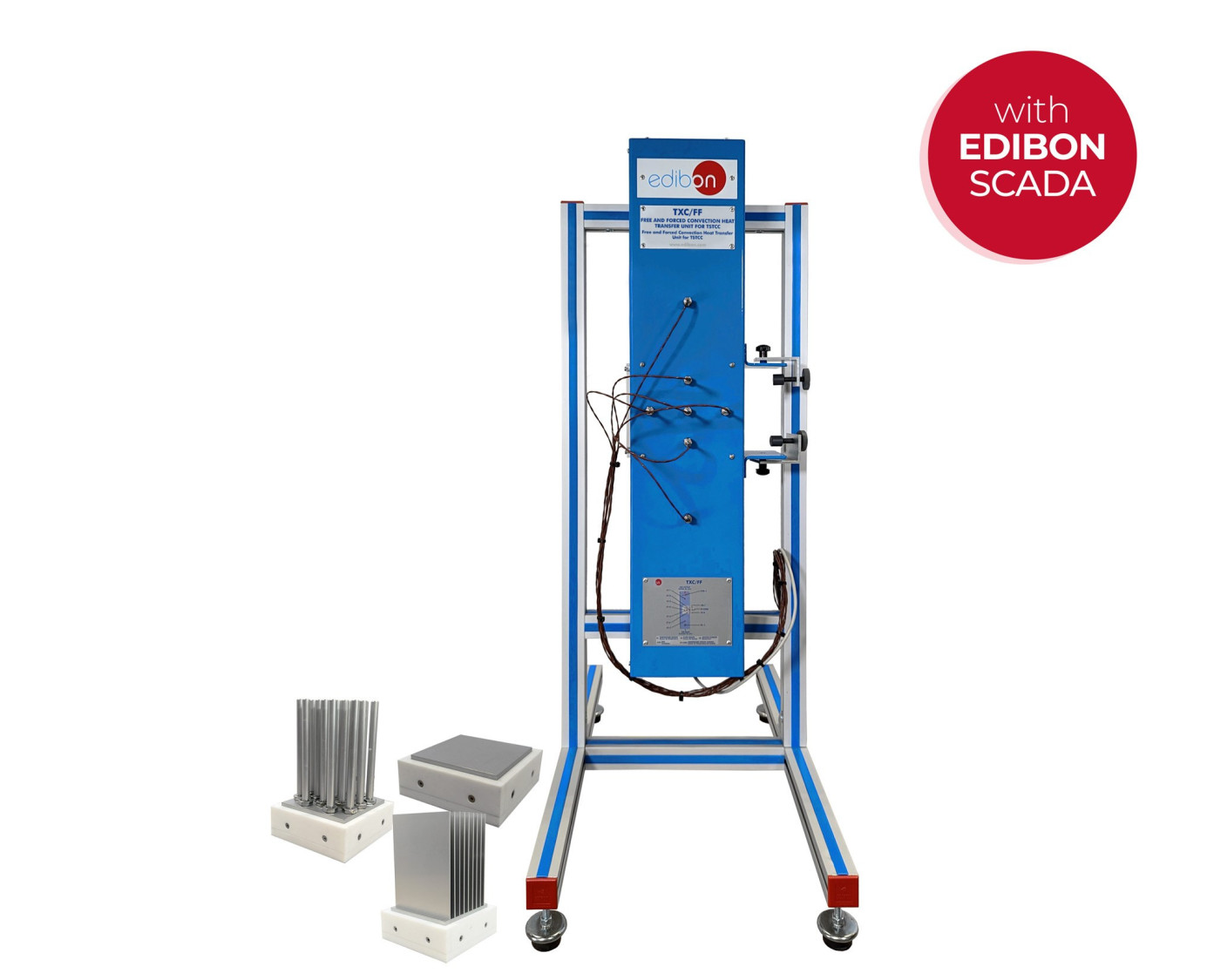

This unit allows to study the efficiency of different exchangers, analyzing the heat transfer coefficients of each of the exchangers exposed to different airflows. A fan placed in the upper part of the tunnel allows controlling the airflow that goes through the tunnel.

연습 및 가이드

매뉴얼에 포함 된 가이드 실기 연습

  1. Free convection in flat surfaces.
  2. Forced convection in flat surfaces.
  3. Efficiency calculation of the forced convection process in flat plate.
  4. Forced convection in a pinned exchanger: efficiency.
  5. Forced convection in a finned exchanger: efficiency.
  6. Temperature distribution in the additional surfaces.

장비로 수행 할 수있는 더 많은 실용적 연습

  1. Demonstration of the basic principles of free and forced convection.
  2. Comparison between free and forced convection.
  3. Dependence of the heat transfer with the temperature.
  4. Dependence of the heat transfer with the speed of the fluid.
  5. Dependence of the heat transfer with the exchanger geometry (finned or pinned surface).
  6. Study of the advantage of using pinned and finned surfaces in heat transfer in free convection.
  7. Study of the advantage of using pinned and finned surfaces in heat transfer in forced convection.
  8. Comparative study between the free convection of a horizontal surface and vertical surface.
  9. Sensors calibration.
