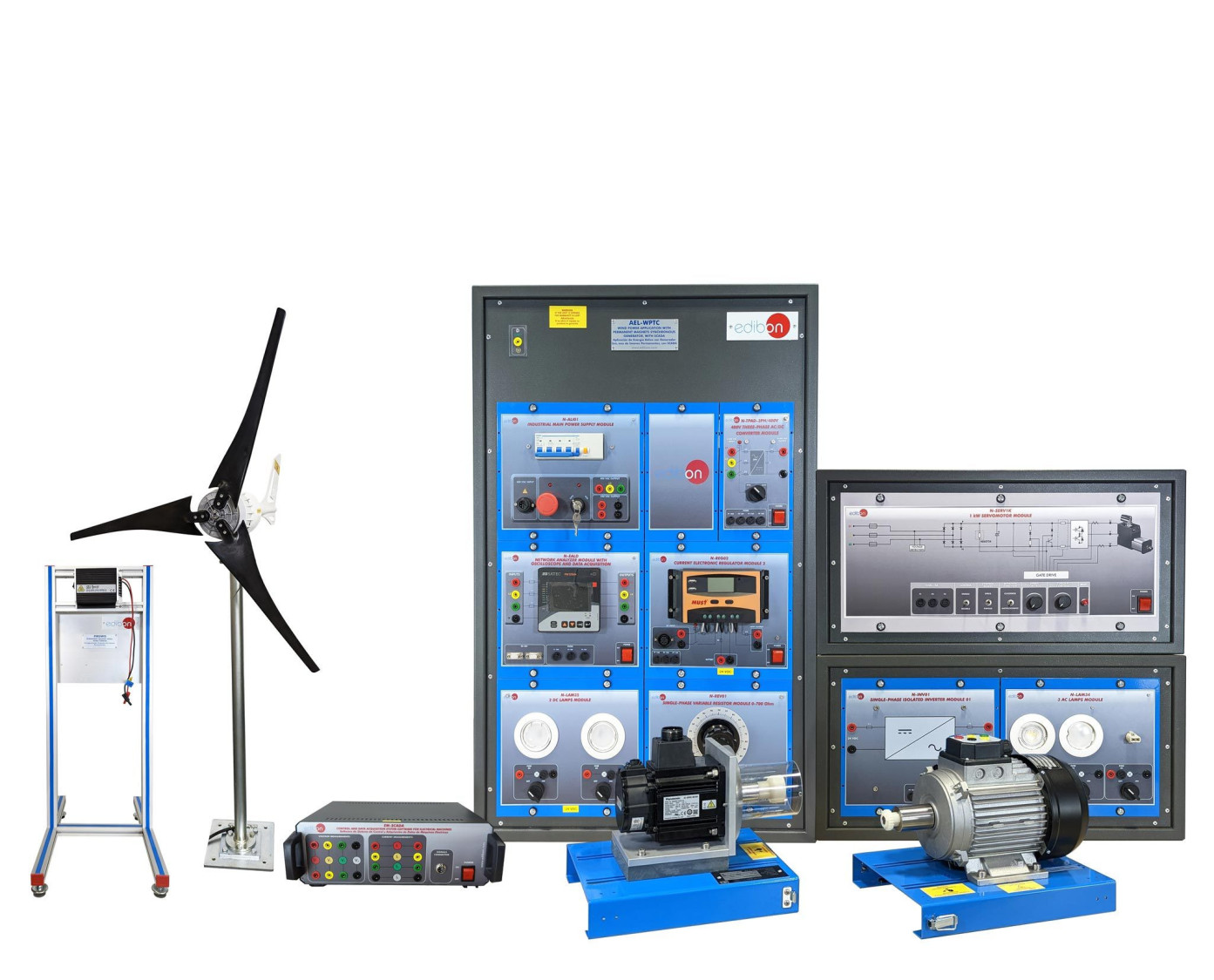

The Wind Power Application with Permanent Magnets Synchronous Generator, with SCADA, "AEL-WPTC", has been designed to study the conversion of wind energy into electricity by means of a permanent magnet synchronous generator.
관련 뉴스
일반적인 설명
The Wind Power Application with Permanent Magnets Synchronous Generator, with SCADA, "AEL-WPTC", has been designed to study the conversion of wind energy into electricity by means of a permanent magnet synchronous generator. This application allows the user to understand the structure and working of the different control, regulation and storage devices used in real wind systems.
The "AEL-WPTC" application includes a three-phase permanent magnet synchronous generator together with a servomotor and its control module, with the goal of studying electrical energy generation through the simulation of a real wind turbine. For that purpose, the application also includes an inverter and a regulator, as control and regulating devices, a battery, as storage device, and a series of AC and DC loads, as consumption elements of the generated power.
In order to carry out advanced tests with the permanent magnet generator, it is recommended to acquire the Control and Data Acquisition System Software for Electrical Machines, "EM-SCADA", which allows monitoring the operation mechanical parameters (torque, rotational speed) and the electrical parameters (voltage, current, powers, power factor...) to obtain the characteristic curves and operation points of the electrical machine under study.
Lastly, it is offered the opportunity to acquire a real small-size permanent magnets wind turbine to gain more experience in the study of the wind turbines and its working.
연습 및 가이드
매뉴얼에 포함 된 가이드 실기 연습
- Start-up and working of the permanent magnets synchronous generator.
- Structure and operation of a wind power plant.
- Study of the energy storage and system optimization.
- Operation and working characteristics with different wind speeds and load.
- Design and operation of a wind power plant in island mode for the generation of AC current.
장비로 수행 할 수있는 더 많은 실용적 연습
Some possible practices with optional Data Acquisition Software, EMSCADA:
- Real time torque monitoring.
- Real time speed monitoring.
- Real time monitoring of current, voltage and power values.
- Real time monitoring of current and voltage waveforms.
- Electrodynamic study of the motor/generator.
- Obtaining characteristic curves (torque-velocity curve, torquecurrent curve, etc.) and working points for operating conditions.
- Real time monitoring of the results.
- Obtaining stored results.
Other possibilities to be done with this Unit:
- Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
- The Computer Control System with SCADA allows a real industrial simulation.
- This unit is totally safe as uses mechanical, electrical/electronic, and software safety devices.
- This unit can be used for doing applied research.
- This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
- Several other exercises can be done and designed by the user.
