FME21 Radial Flow Turbine

RADIAL FLOW TURBINE - FME21

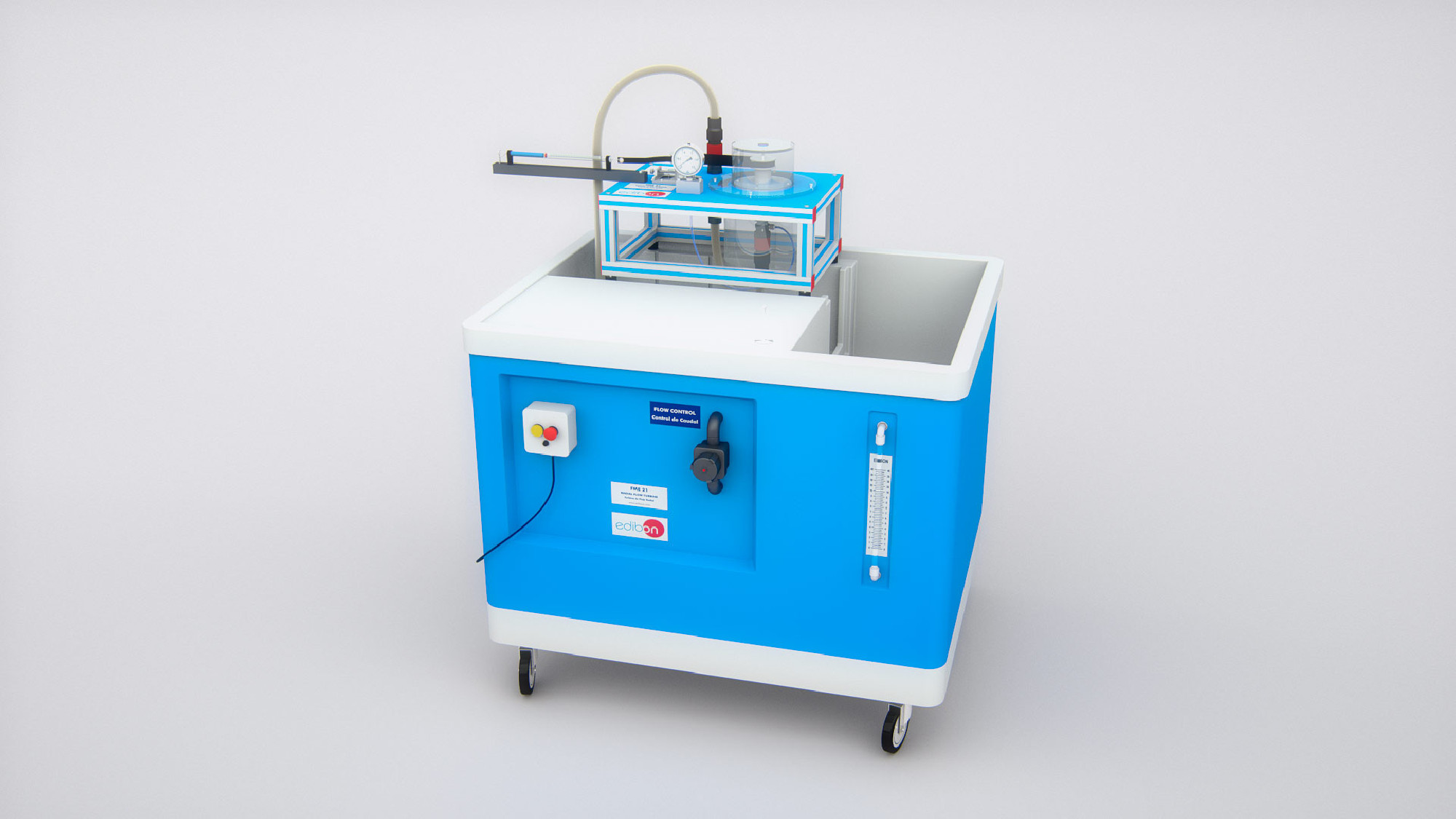

Complete FME21 Unit

RADIAL FLOW TURBINE - FME21

FME21 Unit with service unit FME00

RADIAL FLOW TURBINE - FME21
RADIAL FLOW TURBINE - FME21

혁신적인 시스템

The Radial Flow Turbine unit, "FME21", designed by EDIBON, allows the study of a turbomachine, specifically radial turbines capable of handling slower flow levels than other turbine models.

일반적인 설명보기

관련 뉴스

일반적인 설명

The Radial Flow Turbine unit, "FME21", designed by EDIBON, allows the study of a turbomachine, specifically radial turbines capable of handling slower flow levels than other turbine models.

This unit consist of a miniature Radial Turbine with two nozzles at 180° with respect to the perpendicular direction at the rotating axis. A Bourdon type manometer is placed at the inlet nozzle.

A band brake connected to a dynamometer allows to control the load given to the turbine.

A tachometer determines the velocity measurement.

연습 및 가이드

매뉴얼에 포함 된 가이드 실기 연습

  1. Flow calculation.
  2. Obtaining of the M (n, Ha), N(n, Ha), h (n, Ha) curves.
  3. Obtaining of the M (n, Q), Nm (n, Q), h (n, Q) curves.
  4. Adimensionalization.
