FLOW RATE CONTROL MODULE - RYC-C

혁신적인 시스템

The PID Flow Control and Regulation Unit, "RYC-C", designed by EDIBON, enables the practical study of automatic control systems through the regulation of water flow in a closed-loop circuit.

일반적인 설명보기

확장

ICAI

상호작용형 컴퓨터 지원 교육 소프트웨어
EMAK

Matlab용 EDIBON 키트

실험실

6TV
 기술 및 직업 교육을위한 메카트로닉스 및 자동화 연구실
6HE
 고등 교육을위한 메카트로닉스 및 자동화 실험실
2TV
 기술 및 직업 교육을위한 전자 연구실
2HE
 고등 교육을위한 전자 연구실
11PTC
 석유 연수원 연구실

관련 뉴스

The future of Process Control: Innovation, training, and the industry 4.0 revolution
The future of Process Control: Innovation, training, and the industry 4.0 revolution
Automation and process control have been fundamental pillars in the evolution of both industry and scientific research. With the advent of Industry 4.0, the integration of new technologies has driven an unprecedented transformation in the way industrial and research systems operate, optimize...
더 읽어보기
What is Process Control, and Why is It Essential in Modern Industry?
What is Process Control, and Why is It Essential in Modern Industry?
Today, automation and efficiency are key factors in industrial and scientific development. Process control plays a crucial role in this context by enabling the monitoring, regulation, and optimization of industrial systems and processes, ensuring they operate efficiently, safely, and consistently.
더 읽어보기
EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
더 읽어보기
Completion of the Small Laboratory Equipment Repair Course
Completion of the Small Laboratory Equipment Repair Course
On December 1st, the Repair Course for Small Laboratory Equipment, taught by our engineers at the EDIBON facilities, was completed, lasting 4 days. The attendees, (Laboratory technicians and maintenance of the Rey Juan Carlos University of Madrid) had the opportunity to perform multiple...
더 읽어보기
Completion of the Course of Instrumentation, Regulation and Control in Laboratories
Completion of the Course of Instrumentation, Regulation and Control in Laboratories
On October 19th, the Course on Instrumentation, Regulation and Control in Laboratories, taught by our engineers in these facilities, using EDIBON units, was completed and aimed at learning the control of the conditions of a laboratory process. The attendants, (12 laboratory technicians and...
더 읽어보기

일반적인 설명

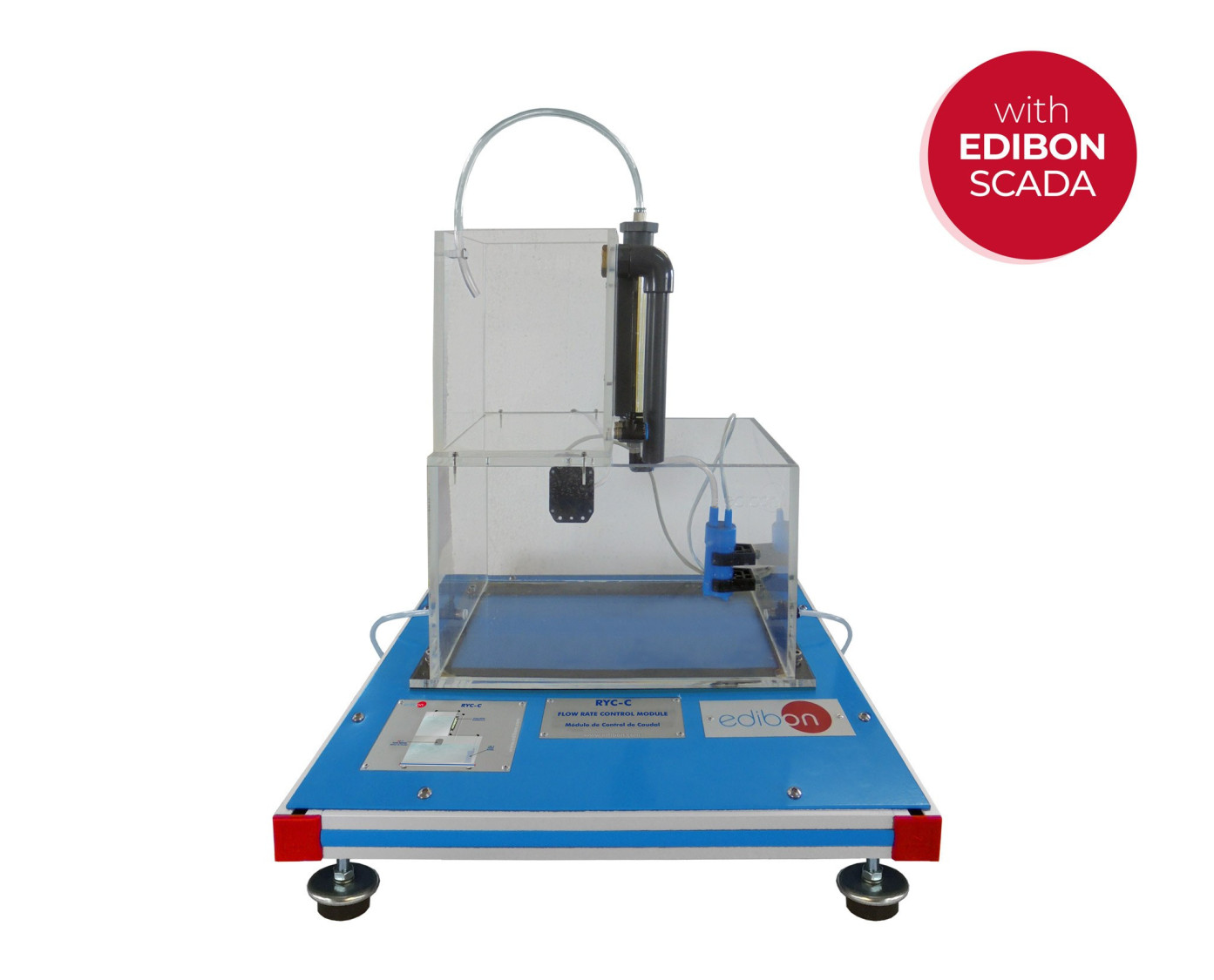

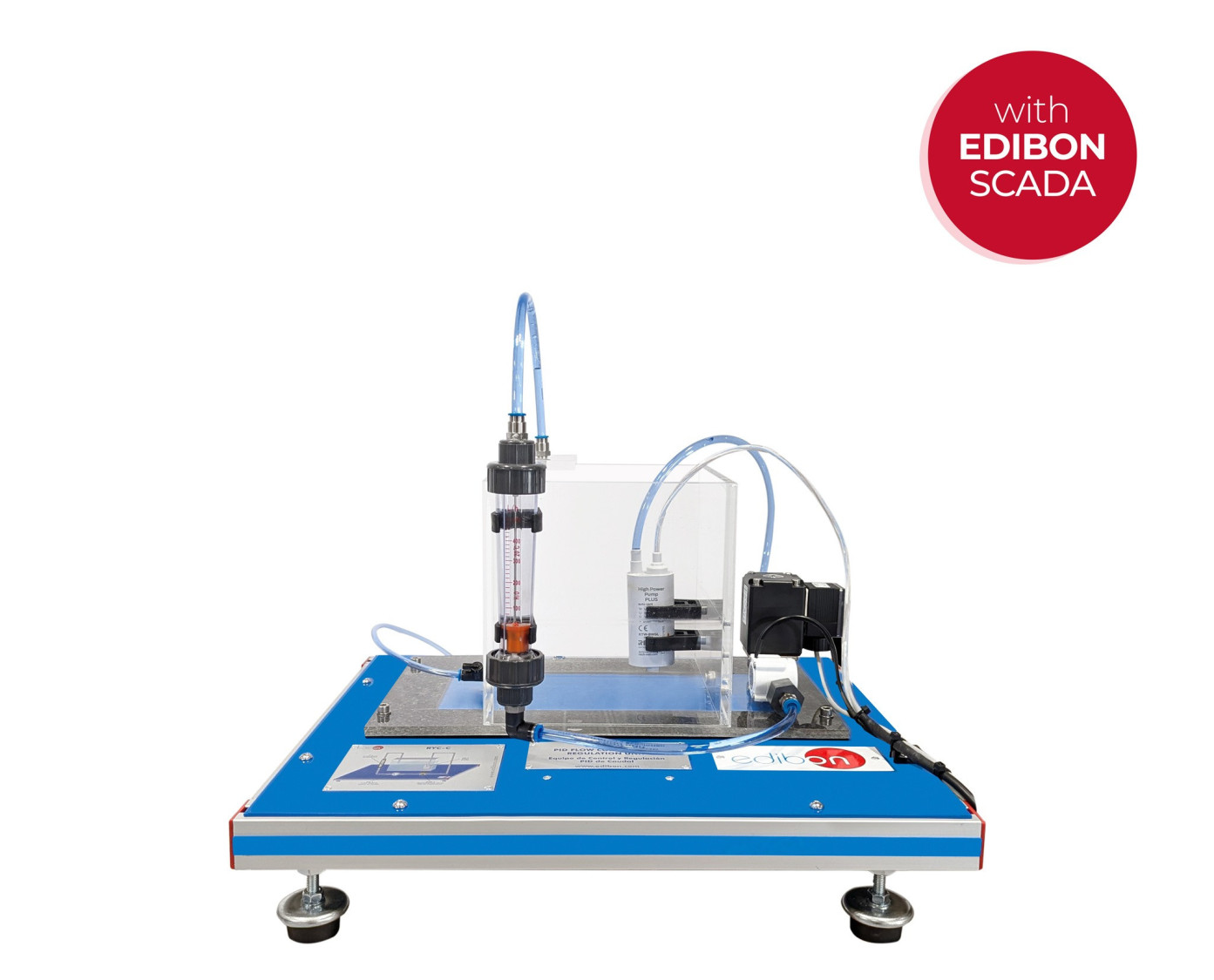

The PID Flow Control and Regulation Unit, "RYC-C", designed by EDIBON, enables the practical study of automatic control systems through the regulation of water flow in a closed-loop circuit.
