PEDI Demonstration Infiltration Unit

DEMONSTRATION INFILTRATION UNIT - PEDI

혁신적인 시스템

The Demonstration Infiltration Unit, "PEDI", is a small scale unit designed to demonstrate infiltration processes and to understand the effects of soil texture and structure on infiltration and the effects of existing moisture conditions of the soil on infiltration.

일반적인 설명보기

관련 뉴스

일반적인 설명

The Demonstration Infiltration Unit, "PEDI", is a small scale unit designed to demonstrate infiltration processes and to understand the effects of soil texture and structure on infiltration and the effects of existing moisture conditions of the soil on infiltration.

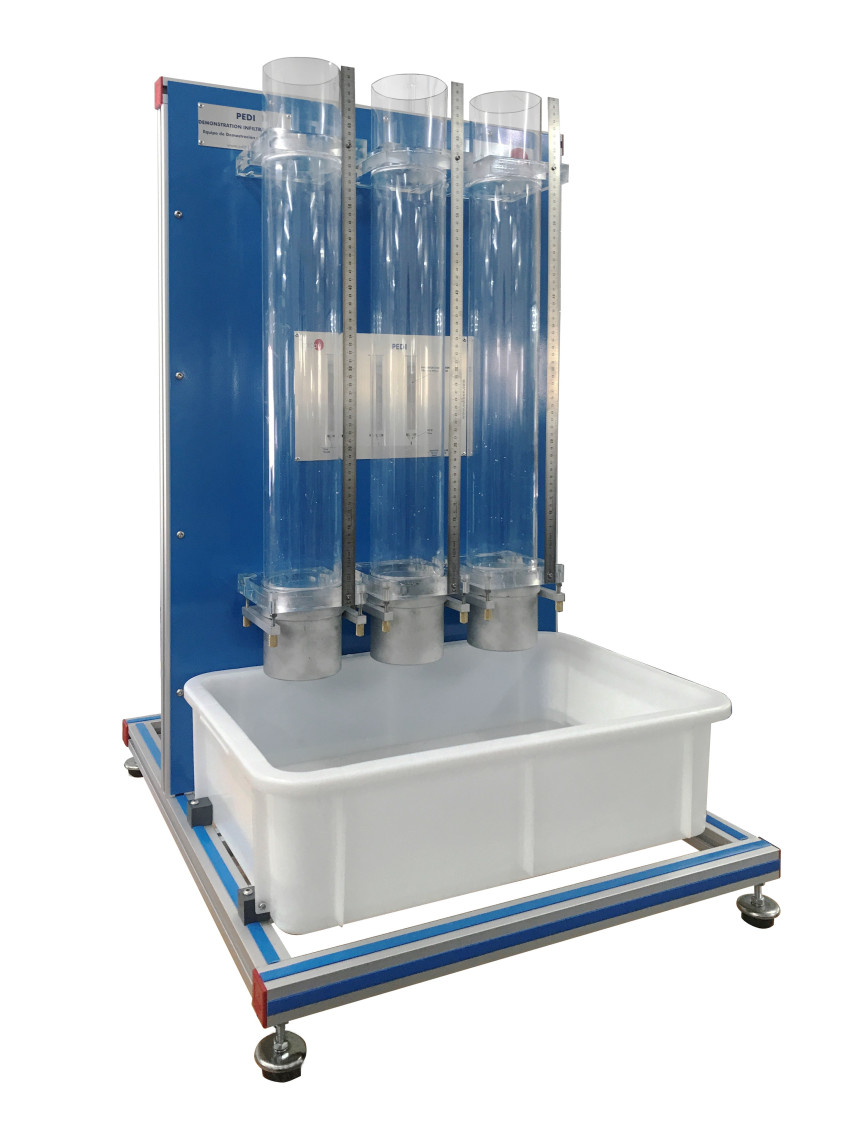

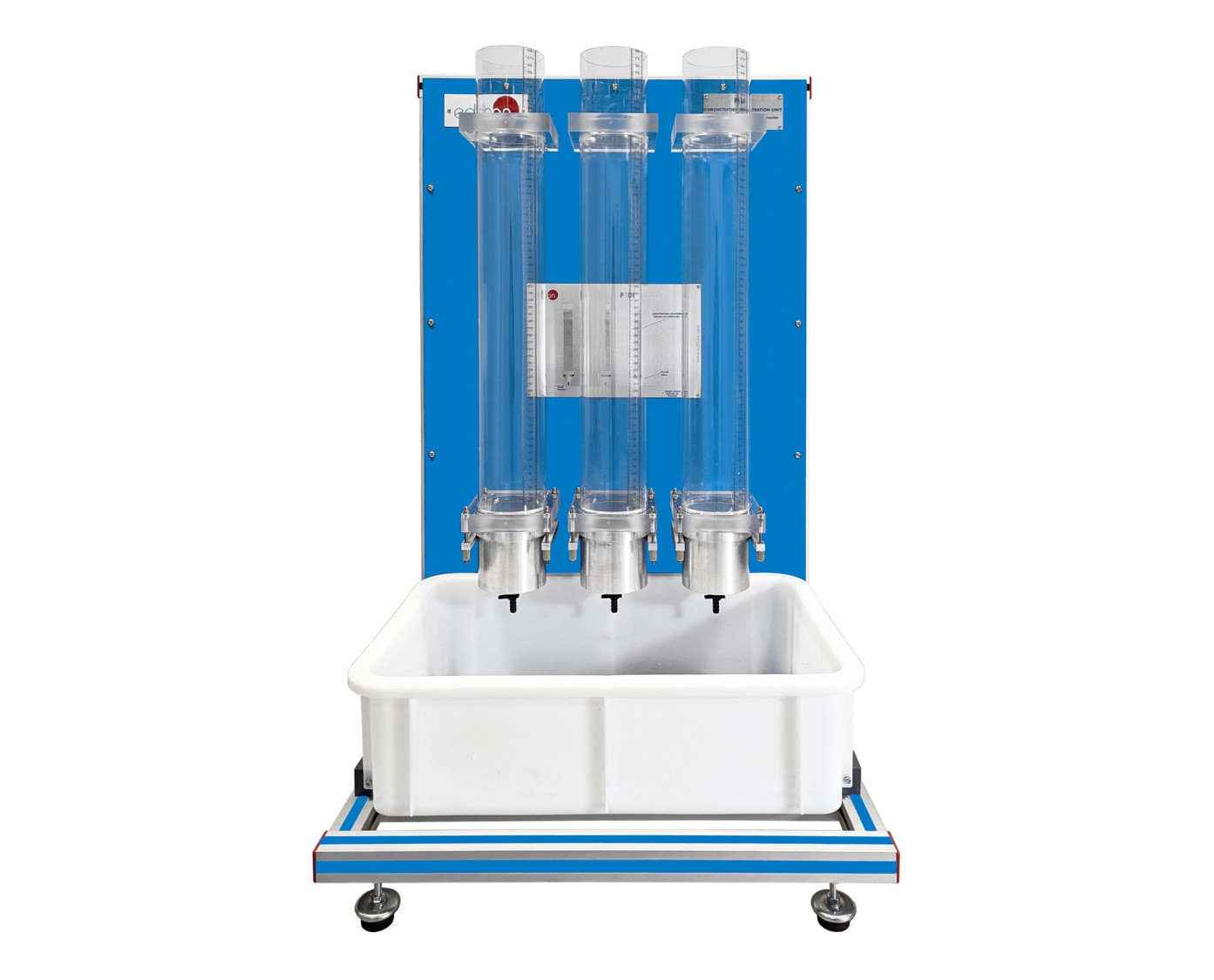

This unit comprises three transparent graduated cylinders in which soil samples are placed. Water poured onto the soil surface can then be observed as it infiltrates the sample. Each cylinder features a graduated scale so that observations may be quantified. The cylinders have a permeable perforated plate at the bottom that retains the soil samples while allowing the water to drain through and facilitates drainage without undue soil loss.

Placed under the cylinders, there is a tank to collect the water and the smaller soil particles under study.

Water is poured onto the soil surface into each cylinder and its progress through the samples can be observed.

연습 및 가이드

매뉴얼에 포함 된 가이드 실기 연습

  1. Determination of the principles of the relationship between the type of soil and infiltration and penetration rates.
  2. Comparison of the cumulative infiltration, infiltration rate and penetration depth as a function of time in different types of soil.
  3. Study of the empirical equations as an approximation of infiltration rate.
  4. Visualization of the effect of crusting on infiltration.
  5. Visualization of the effect of soil particle size on infiltration.

장비로 수행 할 수있는 더 많은 실용적 연습

  1. Study of the effect of organic matter content on the infiltration and penetration rate.
  2. Study of the effect of non-homogeneous soil strata on infiltration and penetration rates.
  3. Study of the effect of moisture content on the infiltration and penetration rate.
  4. Study of the effect of straw mulch on infiltration rate.
  5. Study of the effect of soil texture and structure on infiltration.
  6. Study of the effect of surface on infiltration.
