BASIC UNIT OF MECHANICAL DRIVE SYSTEMS - MDSU

혁신적인 시스템

The Basic Unit of Mechanical Drive Systems, "MDSU", consists of a main frame where a series of accessories and elements are arranged, distributed in modules of different level, thought to introduce the user in the field of mechanical systems and their components.

일반적인 설명보기

확장

ICAI

상호작용형 컴퓨터 지원 교육 소프트웨어
MSAC

모듈식 획득 및 제어 시스템

관련 뉴스

Setting up at Occidental Mukhaizna LLC (OXY) in Oman - Blog EDIBON
Setting up at Occidental Mukhaizna LLC (OXY) in Oman
At EDIBON, we are proud to announce the successful completion of a new installation at Occidental Mukhaizna LLC (OXY) in Oman. This project highlights...
더 읽어보기
EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
더 읽어보기
Setting up at Perenco in Gabon
Setting up at Perenco in Gabon
Today we want to talk to you about the latest installation we have done at Perenco in Gabon. We moved there to install the following units from our Fluid Mechanics area
더 읽어보기

일반적인 설명

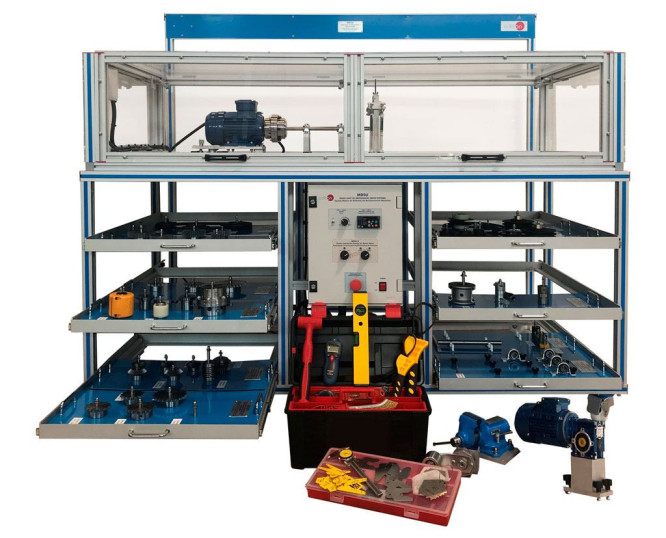

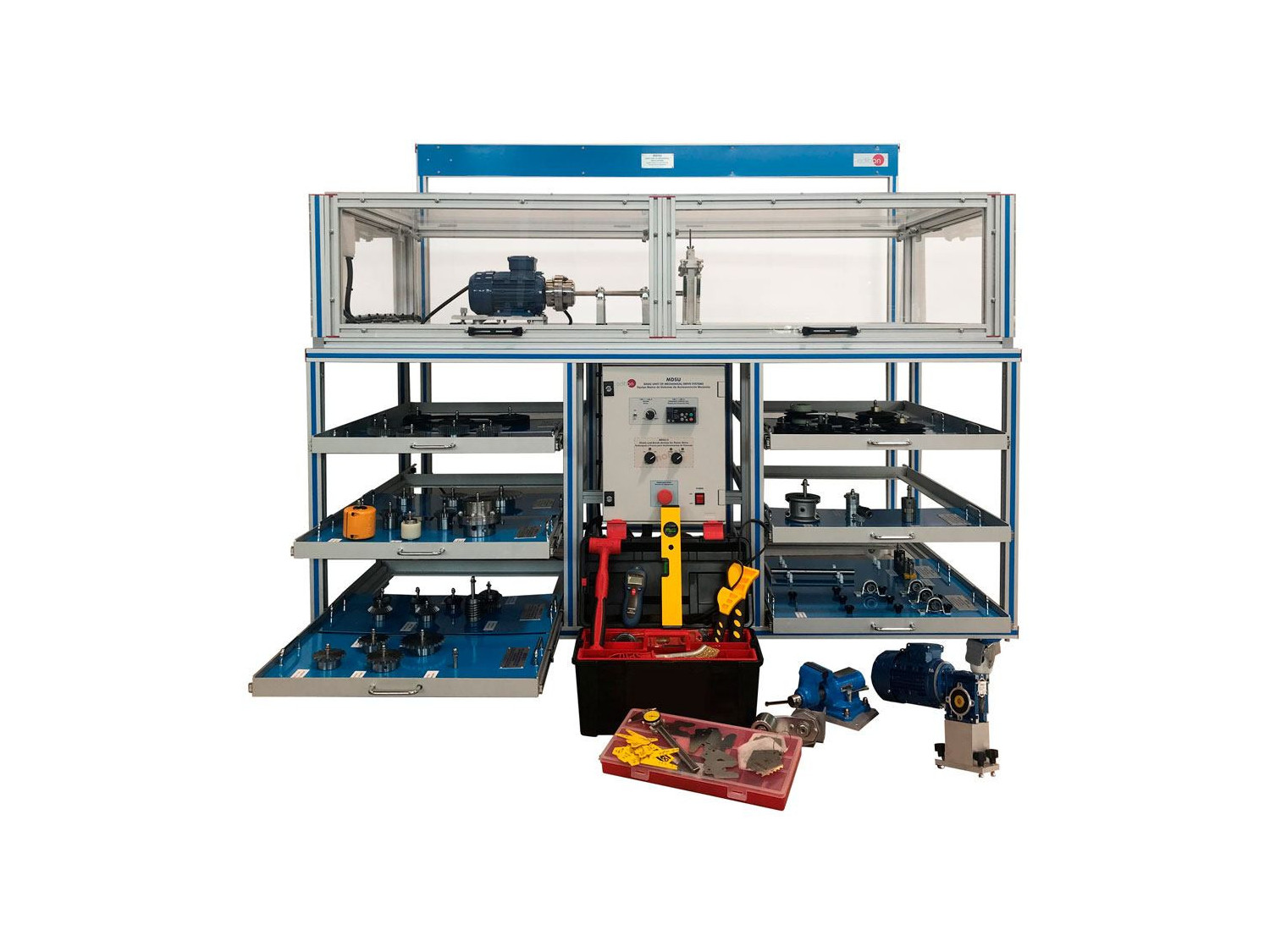

The Basic Unit of Mechanical Drive Systems, "MDSU", consists of a main frame where a series of accessories and elements are arranged, distributed in modules of different level, thought to introduce the user in the field of mechanical systems and their components. The main frame can be divided so that different working groups can work at the same time. The elements are assembled to the main frame by quick release fittings that facilitate the assembly of elements in the configuration required by the user for the study. Apart from the main frame, a variable speed rotary motor is included. It will generate the initial motion along a shaft that will drive the rest of mechanical elements of the system, such as belts, gears, chains, etc.
