BFPT Backflow Prevention Training Unit

BACKFLOW PREVENTION TRAINING UNIT - BFPT

혁신적인 시스템

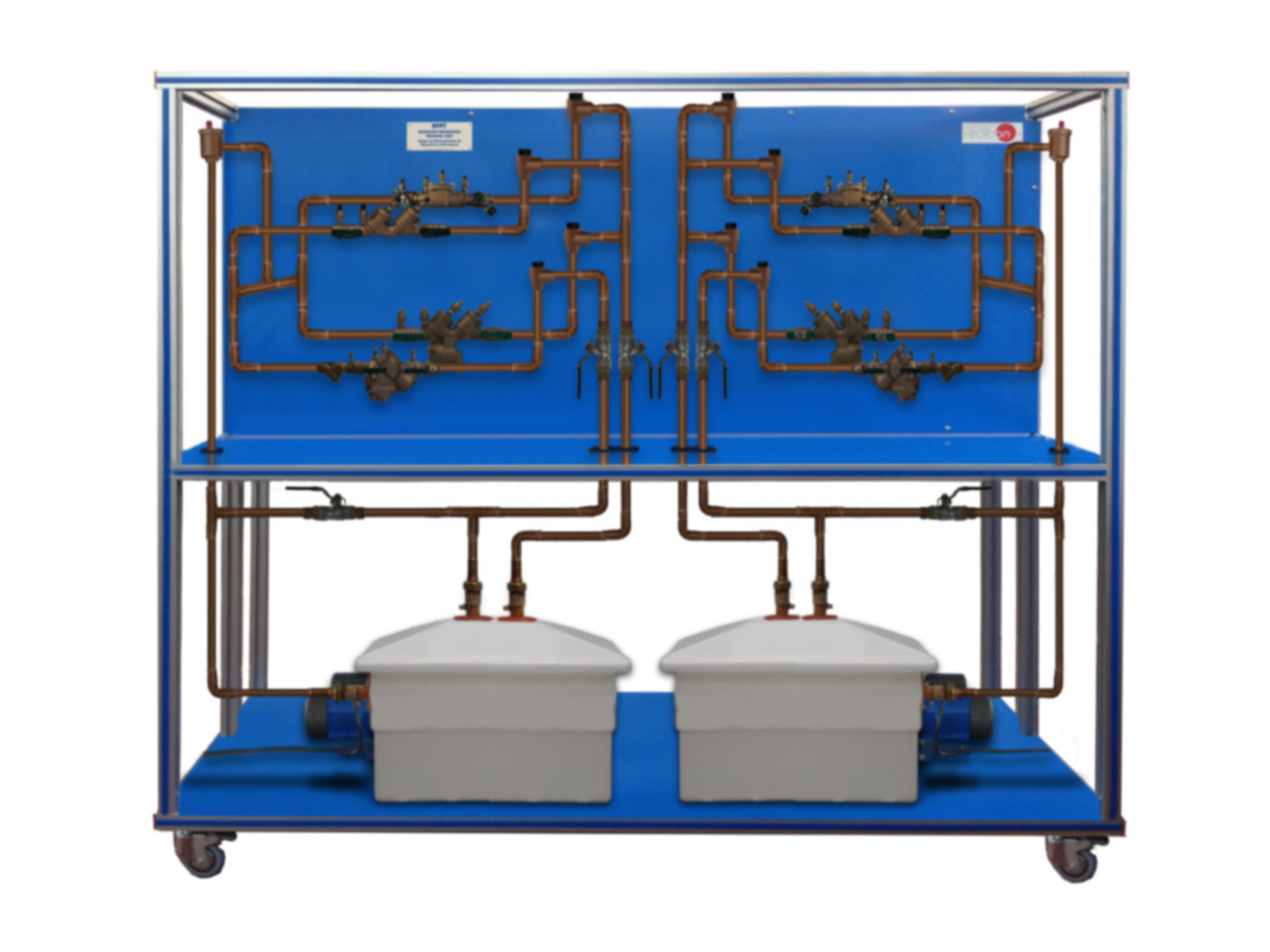

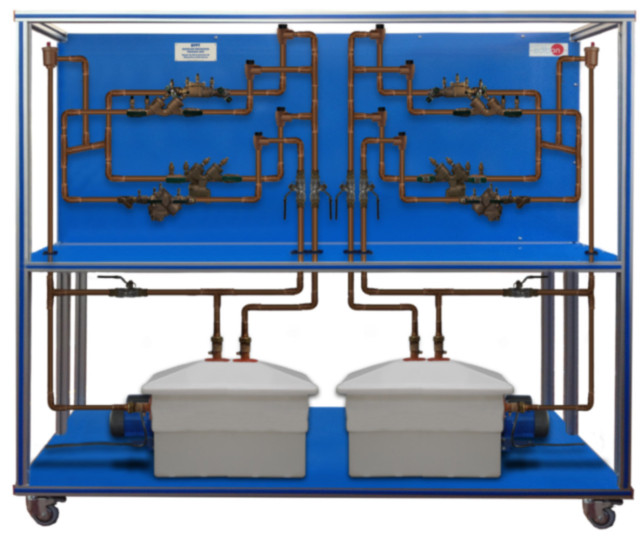

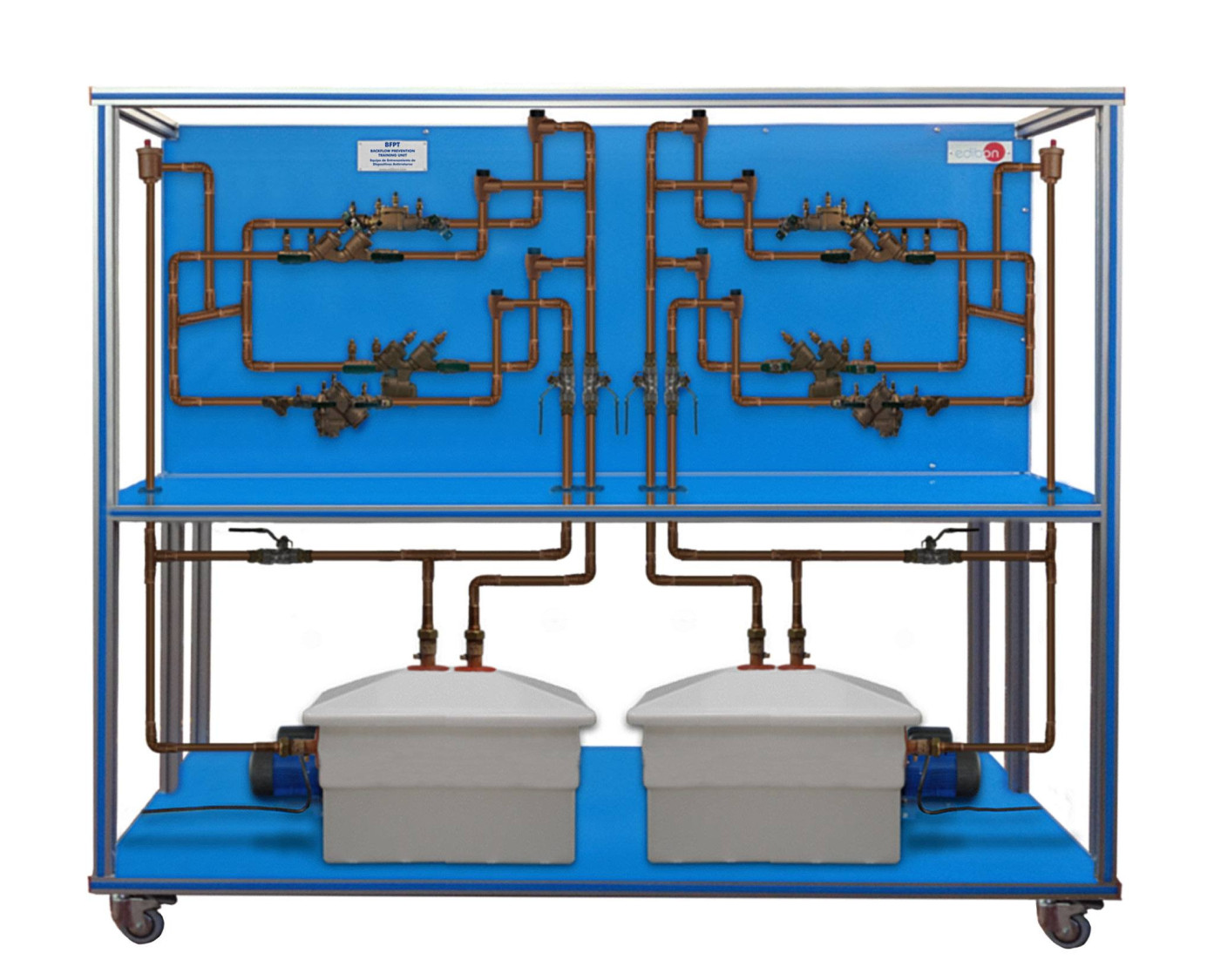

The Backflow Prevention Training Unit, "BFPT", allows verifying the operation of multiple non-return devices.

일반적인 설명보기

관련 뉴스

일반적인 설명

The Backflow Prevention Training Unit, "BFPT", allows verifying the operation of multiple non-return devices.

The system contains the most common backflow prevention devices used in the industry. The main objective is to recognize each element and study its function.

It is a unit designed to allow both a group of students and two to work, since it has a circuit on each side of the structure. Both circuits contain the same elements and their operation is the same.

Each circuit is composed of a water storage tank and a circulatory water pump that allows the flow of fluid through the circuit, driving from the tank and returning the water to it.

The water flows through the pipes crossing different backflow preventers such as standard check valves, two types of double check valve assemblies, two types of reduced pressure assembly, pressure vacuum breakers and gate valves.

In addition, it has ball valves to regulate the passage of fluid through the different pipes.

There is the possibility of forcing the change of flow direction to check the proper operation of each element included in the circuit.

연습 및 가이드

매뉴얼에 포함 된 가이드 실기 연습

  1. Test the water circuit with backflow prevention devices.
  2. Study of the circuit changing the direction of the flow.
  3. Show flow indicator and drain return.
  4. Study of the operation of a gate valve.
  5. Study of the differences between a standard and double check valve.
  6. Study of the differences between a double check valve assembly and a reduced pressure assembly.
  7. Demonstration of the operation of ball valves to change the flow.
