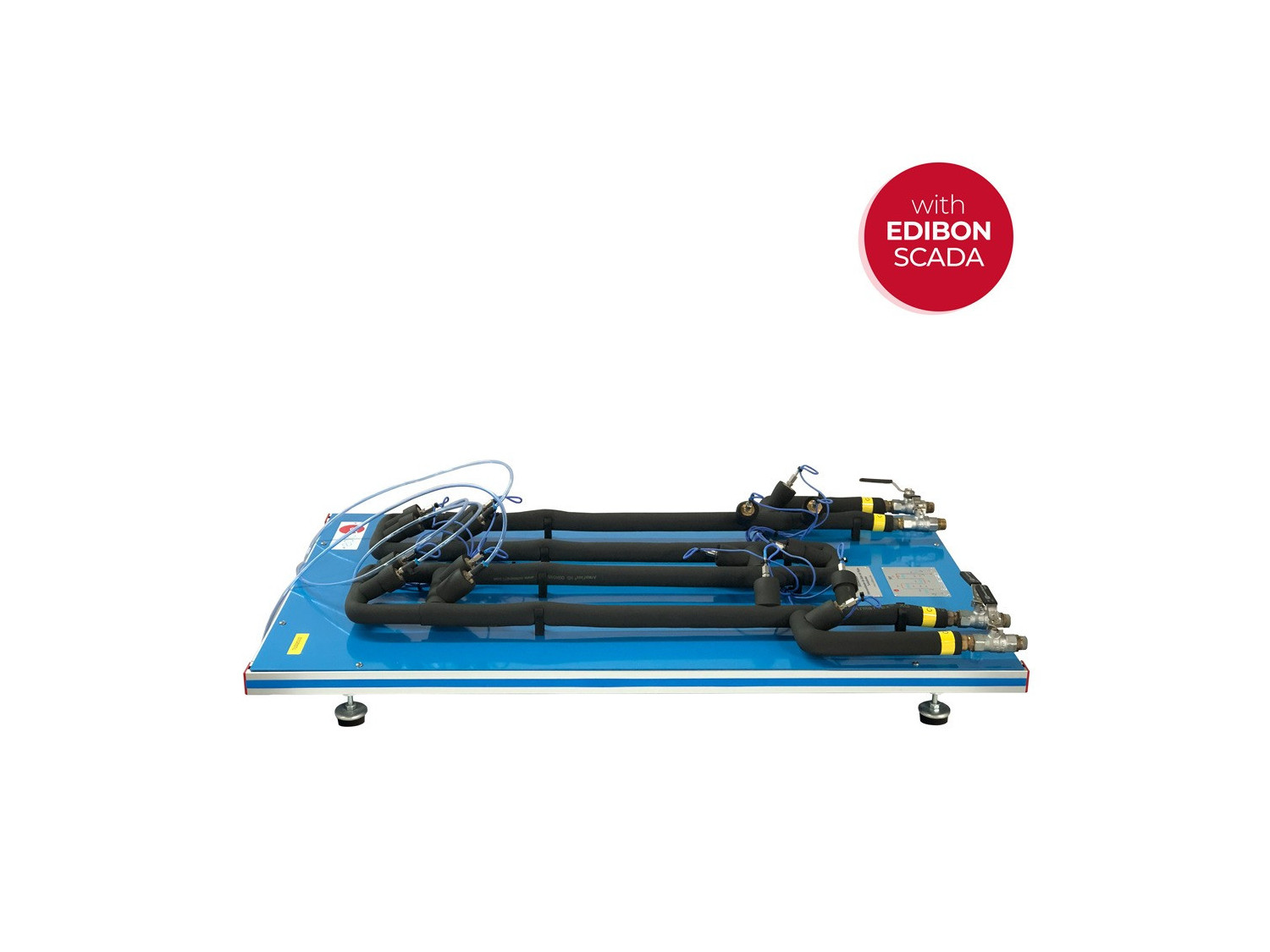

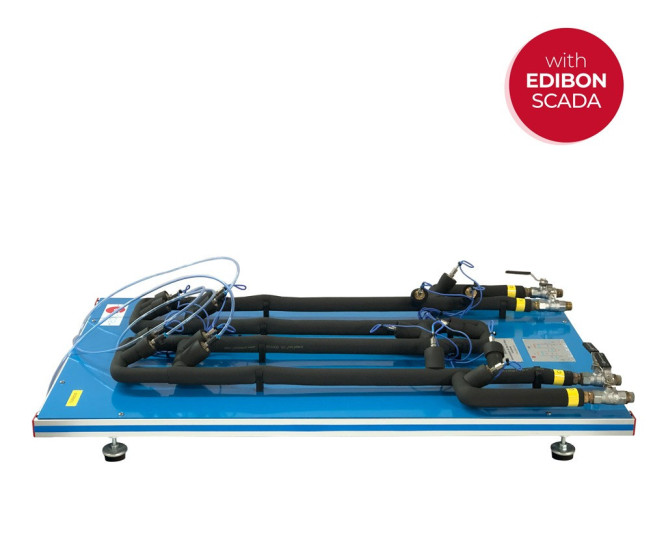

TURBULENT FLOW HEAT EXCHANGER FOR TICC - TIFT

혁신적인 시스템

Turbulent Flow Heat Exchanger for TICC: Let us study the heat transfer between hot water that circulates through an internal tube and cold water that flows through the annular zone between the internal and the external tube.

일반적인 설명보기

확장

ICAI

Interactive Computer Aided Instruction Software
FSS

Fault Simulation System
PLC

를 위한 PLC에 의한 산업 공정 제어
PLCHMI

IIoT local/remote Control and Monitoring with HMI
ELK

EDIBON Software Development KIT, Powered by NI LabVIEW™
ECR

EDIBON Industrial Modular System with NI CompactRIO
ESN

EDIBON Scada-Net
ECL

EDIBON Cloud Learning

실험실

11PTC
 석유 연수원 연구실
9TV
 기술 및 직업 교육을위한 열역학 및 열공학 실험실
9HE
 고등 교육을위한 열역학 및 열공학 실험실

일반적인 설명

Turbulent Flow Heat Exchanger for TICC: Let us study the heat transfer between hot water that circulates through an internal tube and cold water that flows through the annular zone between the internal and the external tube.

연습 및 가이드

매뉴얼에 포함 된 가이드 실기 연습

  1. Global energy balance in the heat exchanger and loss study.
  2. Determination of the exchanger effectiveness. NTU Method.
  3. Study of the heat transfer in counter-current and co-current flow conditions.
  4. Flow influence on heat transfer. Reynolds number calculation.
  5. Obtaining of the correlation that relates Nusselt number with Reynolds number and Prandtl number.
  6. Obtaining of the heat transfer coefficients by convection.
  7. Control system: Temperature sensors calibration.
  8. Control system: Flow sensors calibration.

장비로 수행 할 수있는 더 많은 실용적 연습

  1. Study of the hysteresis in the flow sensors.
