FLOW TEST MODULE - BS4

혁신적인 시스템

Flow Test Module, "BS4", has been designed by EDIBON show techniques to measure changeable fluids.

일반적인 설명보기

확장

ICAI

상호작용형 컴퓨터 지원 교육 소프트웨어
EMSK

NI LabVIEW™을 활용한 EDIBON 회로 시뮬레이션 개발 키트

실험실

2TV
 기술 및 직업 교육을위한 전자 연구실
2HE
 고등 교육을위한 전자 연구실
11PTC
 석유 연수원 연구실

관련 뉴스

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
더 읽어보기
Completion of the Small Laboratory Equipment Repair Course
Completion of the Small Laboratory Equipment Repair Course
On December 1st, the Repair Course for Small Laboratory Equipment, taught by our engineers at the EDIBON facilities, was completed, lasting 4 days. The attendees, (Laboratory technicians and maintenance of the Rey Juan Carlos University of Madrid) had the opportunity to perform multiple...
더 읽어보기

일반적인 설명

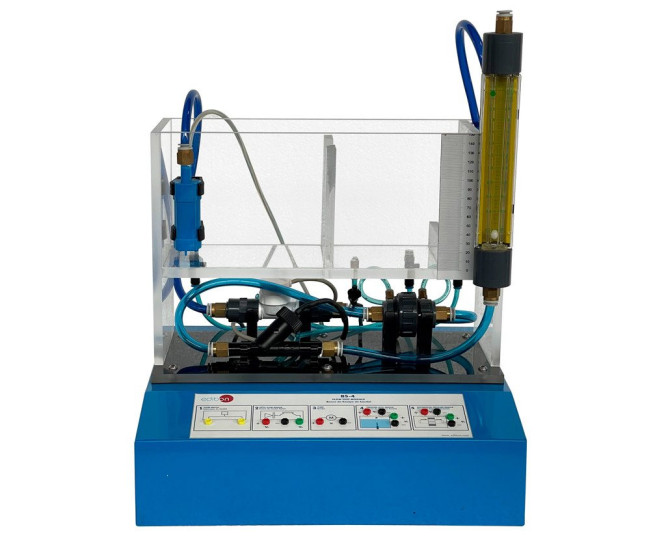

Flow Test Module, "BS4", has been designed by EDIBON show techniques to measure changeable fluids.

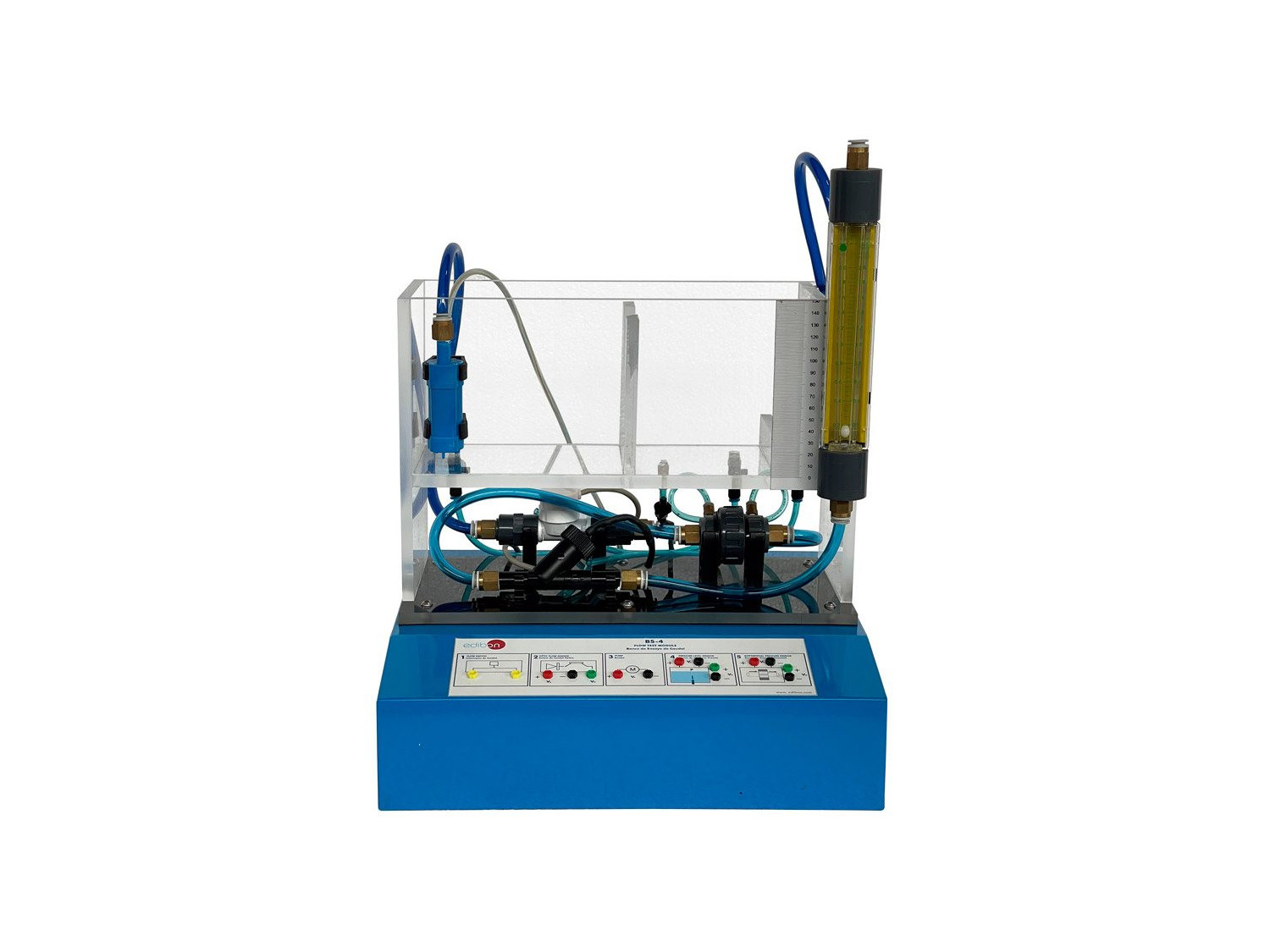

The module is made up of two tanks assembled on a structure. In one of them there is a pumping system that allows to pump the water from the reserve tank, using a measurement transducer system, and to return it to the main tank.The pump enables that a big amount of water from the tank flows between the reserve tank and the main one. It is possible to change the flow volume by changing the pump power supply voltage using the terminals placed on the "BS4" front panel.

Included elements:

  • Flow switch.
  • Optical flow sensor.
  • Underwater pump.
  • Pressure level sensor.
  • Differential pressure sensor.
  • Changeable flow meter.
  • V narrowing.

All the connections from the different transducers and from the pumping system are made using a group of 2 mm. Terminals placed on the front panel of the test module with drawings describing their functions.

연습 및 가이드

매뉴얼에 포함 된 가이드 실기 연습

  1. Use of a variable area flowmeter.
  2. Study of the operation of a flow switch.
  3. Use of the high-resolution optical flow sensor to measure low flow rates.
  4. The pressure level sensor. Use of a differential pressure sensor to measure the liquid level in one of the tanks.
  5. The differential pressure sensor. Measuring the pressure drop in the orifice plate system as a required parameter to determine the flow rate.
  6. Obtaining the flow rate value in the secondary tank using the V-notch plate.

장비로 수행 할 수있는 더 많은 실용적 연습

  1. Measurement of the water flow produced by the submersible pump using an optical flow sensor.
  2. Measurement of the flow generated by the submersible pump using a variable area flow meter.
