AEL-DMG-KIT 모터-발전기 조립 응용

DISSECTIBLE MOTORS-GENERATORS APPLICATION - AEL-DMG-KIT

혁신적인 시스템

The Disassembly Motors-Generators Application, ,AEL-DMG-KIT,, has been designed by EDIBON for the training at theoretical-practical level about the assembly of the following electric motors: DC Compound with Shunt-Series Motor-Generator, Asynchronous Three-Phase Motor-Alternator, Asynchronous Three-Phase Motor of Squirrel Cage, Asynchronous Three-Phase Motor of Wound Rotor, Dahlander Three-Phase Motor, Asynchronous Three-Phase Motor of Two Independent Speeds, Asynchronous Single-Phase Motor with Starting Capacitor, Universal Motor, DC Permanent Magnet Motor, Asynchronous Single-Phase Motor with Starting and Running Capacitor, Asynchronous Three-Phase Motor of Squirrel Cage with "Y" Connection, DC Brushless Motor, Asynchronous Single-Phase Motor with Split Phase, Three-Phase Reluctance Motor, Three-Phase Shaded Pole Motor.

일반적인 설명보기

관련 뉴스

일반적인 설명

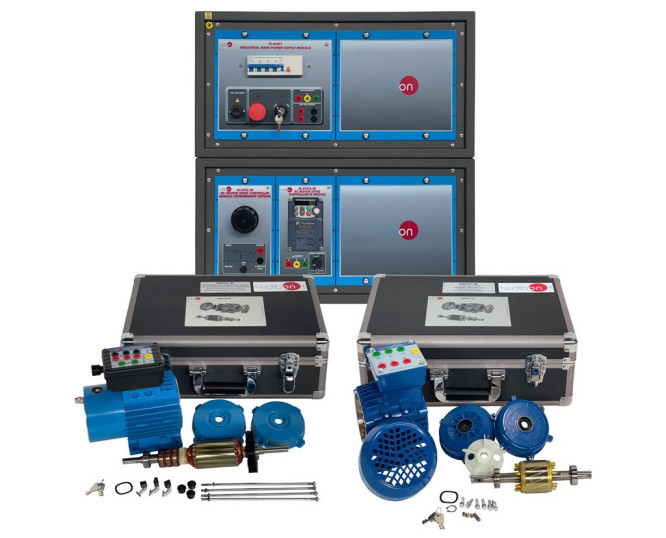

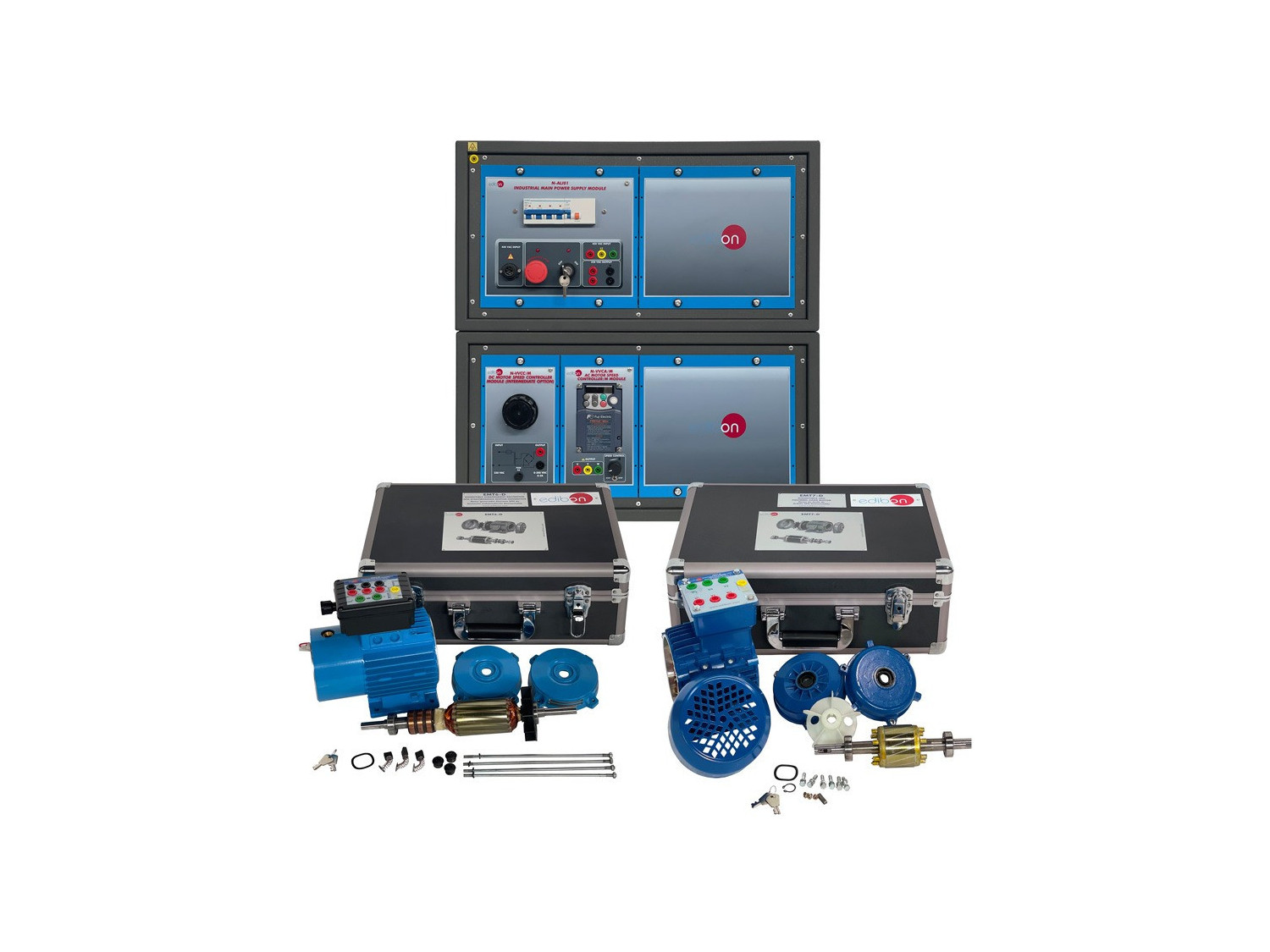

The Dissectible Motors-Generators Application, "AEL-DMG-KIT", has been designed by EDIBON for the training at theoretical-practical level about the assembly of the following electric motors: DC Compound with Shunt-Series Motor-Generator, Asynchronous Three-Phase Motor-Alternator, Asynchronous Three-Phase Motor of Squirrel Cage, Asynchronous Three-Phase Motor of Wound Rotor, Dahlander ThreePhase Motor, Asynchronous Three-Phase Motor of Two Independent Speeds, Asynchronous Single-Phase Motor with Starting Capacitor, Universal Motor, DC Permanent Magnet Motor, Asynchronous Single-Phase Motor with Starting and Running Capacitor, Asynchronous Three-Phase Motor of Squirrel Cage with "Y" Connection, DC Brushless Motor, Asynchronous Single-Phase Motor with Split Phase, ThreePhase Reluctance Motor, Three-Phase Shaded Pole Motor.

This Dissectible Motors-Generators Application offers several levels of training, which will provide the user of the knowledge and the essential skills about the assembly of electric motors and generators. For this purpose, the application includes a specific manual explaining, at theoretical level, the relative aspects to the electric machines. The theme covers from the construction process of each motor to the functional principles of the same. Furthermore, a set of included and optional modules are provided in order to put into practice all the theoretical concepts previously studied in the manual, as the construction from scratch of an electric machine, step by step, until its whole assembly.

One of the advantages of "AEL-DMG-KIT" is the large variety of electric machines available to be assembled. This allows to obtain a wide and practical formation about assembly procedures of the electric motors most used in the industry. In addition, once the electric motor is assembled, it can be put into operation with the optional modules offered in each option.

연습 및 가이드

매뉴얼에 포함 된 가이드 실기 연습

  1. Complete step by step assembly of DC Independent Shunt/Series/Compound Excitation Motor/Generator.
  2. Put into operation the DC Independent Shunt/Series/Compound Excitation Motor-Generator.
  3. Complete step by step assembly of AC Synchronous Three-Phase Motor-Alternator.
  4. Put into operation the AC Synchronous Three-Phase Motor Alternator.
  5. Complete step by step assembly of Asynchronous Three-Phase Motor of Squirrel Cage.
  6. Put into operation the Asynchronous Three-Phase Motor of Squirrel Cage.
  7. Complete step by step assembly of Asynchronous Three-Phase Motor with Wound Rotor.
  8. Put into operation the Asynchronous Three-Phase Motor with Wound Rotor.
  9. Complete step by step assembly of Dahlander Three-Phase Motor.
  10. Put into operation the Dahlander Three-Phase Motor.
  11. Complete step by step assembly of Asynchronous Three-Phase Motor of Two Independent Speeds.
  12. Put into operation the Asynchronous Three-Phase Motor of Two Independent Speeds.
  13. Complete step by step assembly of Asynchronous Single-Phase Motor with Starting Capacitor.
  14. Put into operation the Asynchronous Single-Phase Motor with Starting Capacitor.
  15. Complete step by step assembly of Universal Motor.
  16. Put into operation the Universal Motor.
  17. Complete step by step assembly of Asynchronous Single-Phase Motor with Starting and Running Capacitor.
  18. Put into operation the Asynchronous Single-Phase Motor with Starting and Running Capacitor.
  19. Complete step by step assembly of DC Brushless Motor.
  20. Put into operation the DC Brushless Motor.
  21. Complete step by step assembly of Asynchronous Single-Phase Motor with split phase.
  22. Put into operation the Asynchronous Single-Phase Motor with split phase.
  23. Complete step by step assembly of Three-Phase Reluctance Motor.
  24. Put into operation the Three-Phase Reluctance Motor.
  25. Complete step by step assembly of Single-Phase Shaded Pole Motor.
  26. Put into operation the Single-Phase Shaded Pole Motor.

장비로 수행 할 수있는 더 많은 실용적 연습

  1. Several other exercises can be done and designed by the user.
