The Deflection of Curved Bars Unit, "MDB", is designed to enable the student to determine experimentally the horizontal and vertical displacements at the free end of various curved bars when subject to single concentrated load.

일반적인 설명보기

컨테스트 사양

확장

ICAI

Interactive Computer Aided Instruction Software

MSAC

Modular System for Acquisition and Control

실험실

7TV

기술 및 직업 교육을위한 기계, 자동차 및 재료 연구실

7HE

고등 교육을위한 기계, 자동차 및 재료 연구실

일반적인 설명

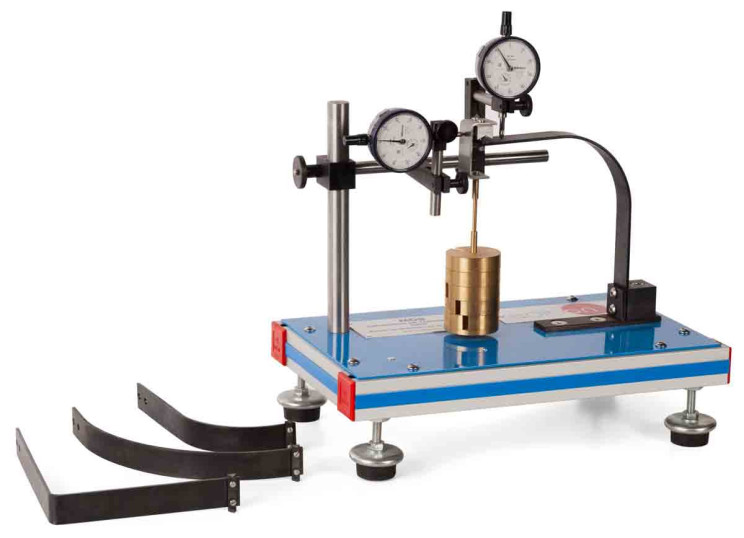

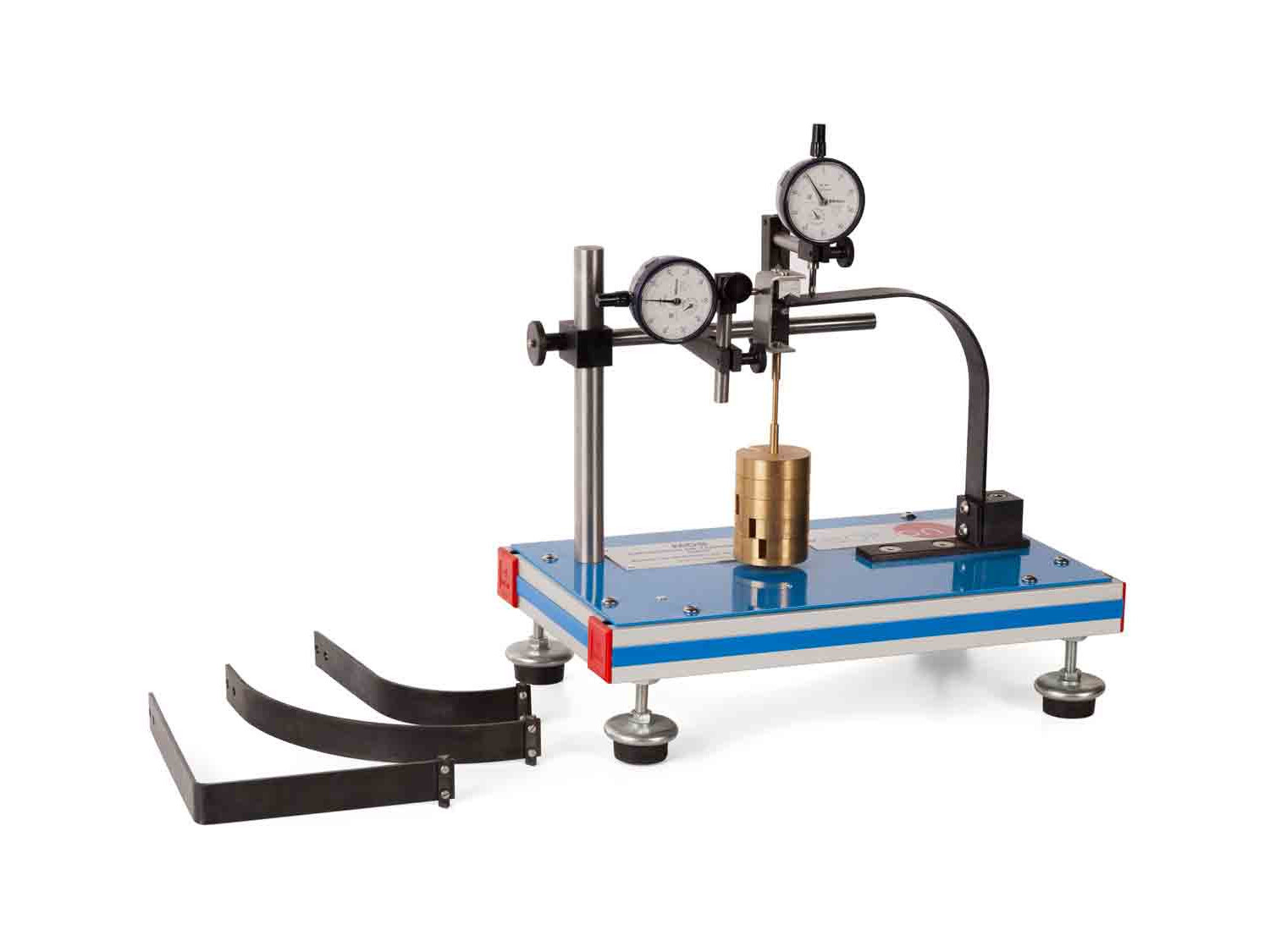

The Deflection of Curved Bars Unit "MDB" consists of a structure of aluminum and steel that allows the incorporation of different curved bars to be studied. It allows tests with curved bars of different shape.
