The Computer Controlled Process Control System (with electronic control valve + pneumatic control valve + speed controller), "UCPCNCV", consists of a hydraulic circuit with a bottom main tank and an upper process tank, both duals.

일반적인 설명보기

관련 뉴스

일반적인 설명

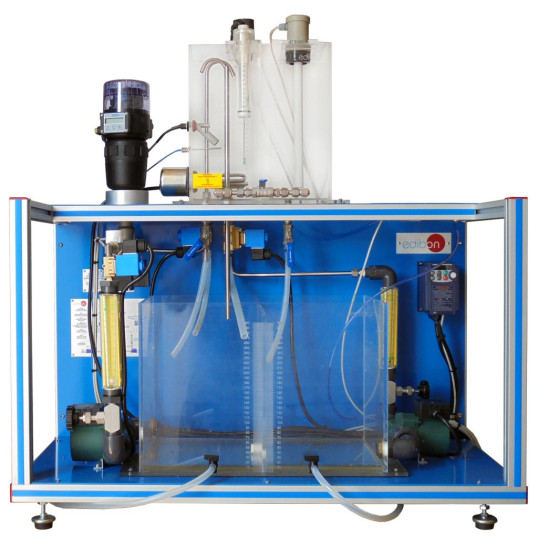

The Computer Controlled Process Control System (with electronic control valve + pneumatic control valve + speed controller), "UCPCNCV", consists of a hydraulic circuit with a bottom main tank and an upper process tank, both duals. Two centrifugal pumps allow to impeller water in both tanks. Each pump includes a flowmeter with manual control valve.

The unit includes a line of on/off regulation valves. This line incorporates a solenoid valve normally opened, two solenoid valves normally closed with different Cv, and several manual valves to drain the process tank.

The "UCPCNCV" unit incorporates three controls:

Through a proportional valve (electronic control valve), situated in the outlet of one of the pumps.

Through a pneumatic control valve, situated in the outlet of one of the pumps.

Through a speed controller, situated in one of the pumps.

There are several additional fixed elements included:

A temperature sensor located in the process tank together with a heating element and a level switch.

A flow sensor that is installed in one of the upward lines of flow.

A pressure sensor situated in the process tank.

The interchangeable additional elements in the unit are a stirrer, a capacitive level sensor located in the process tank and a pH, conductivity and TDS sensor which can be placed in the process tank or in the main tank to study the effect of the time out.

연습 및 가이드

매뉴얼에 포함 된 가이드 실기 연습

  1. Temperature Process Control:
    1. Temperature control loops (Manual).
    2. Temperature control loops (On/Off).
    3. Temperature control loops (Proportional).
    4. Temperature control loops (Proportional + Integral).
    5. Temperature control loops (Proportional + Derivative).
    6. Temperature control loops (Proportional + Derivative + Integral).
    7. Adjustment of the constant of a controller of temperature (Ziegler-Nichols).
    8. Adjustment of the constant of a controller of temperature (Reaction Curves).
    9. Temperature sensor calibration.
  2. Flow Process Control:
    1. Flow control loops (Manual).
    2. Flow control loops (On/Off).
    3. Flow control loops (Proportional).
    4. Flow control loops (Proportional + Integral).
    5. Flow control loops (Proportional + Derivative).
    6. Flow control loops (Proportional + Derivative + Integral).
    7. Adjustment of the flow controller constants (Ziegler-Nichols).
    8. Adjustment of the flow controller constants (Reaction Curves).
    9. Flow sensor calibration.
  3. Level Process Control:
    1. Level control loops (Manual).
    2. Level control loops (On/Off).
    3. Level control loops (Proportional).
    4. Level control loops (Proportional + Integral).
    5. Level control loops (Proportional + Derivative).
    6. Level control loops (Proportional + Derivative + Integral).
    7. Adjustment of the constants of a flow controller (Ziegler-Nichols).
    8. Adjustment of the constants of a flow controller (Reaction Curves).
    9. Level sensor calibration.
  4. Pressure Process Control:
    1. Pressure control loops (Manual).
    2. Pressure control loops (On/Off).
    3. Pressure control loops (Proportional).
    4. Pressure control loops (Proportional + Integral).
    5. Pressure control loops (Proportional + Derivative).
    6. Pressure control loops (Proportional + Derivative + Integral).
    7. Pressure sensor calibration
  5. pH Process Control:
    1. pH control loops (Manual).
    2. pH control loops (On/Off).
    3. pH control loops (Proportional).
    4. pH control loops (Proportional + Integral).
    5. pH control loops (Proportional + Derivative).
    6. pH control loops (Proportional + Derivative + Integral).
    7. Adjustment of the constant of a pH controller (Ziegler-Nichols).
    8. Adjustment of the constant of a pH controller (Reaction Curves).
    9. pH sensor calibration.
    10. Conductivity and TDS (Total Dissolved Solids)
  6. Process Control:
    1. Conductivity control loops (Manual).
    2. Conductivity control loops (On/Off).
    3. Conductivity control loops (Proportional).
    4. Conductivity control loops (Proportional + Integral).
    5. Conductivity control loops (Proportional + Derivative).
    6. Conductivity control loops (Proportional + Derivative + Integral).
    7. TDS control loops (Manual).
    8. TDS control loops (On/Off).
    9. TDS control loops (Proportional).
    10. TDS control loops (Proportional + Integral).
    11. TDS control loops (Proportional + Derivative).
    12. TDS control loops (Proportional + Derivative + Integral).
    13. Conductivity and TDS sensor calibration.
