N-M49 Applications of Temperature and Pressure Module

APPLICATIONS OF TEMPERATURE AND PRESSURE MODULE - N-M49

혁신적인 시스템

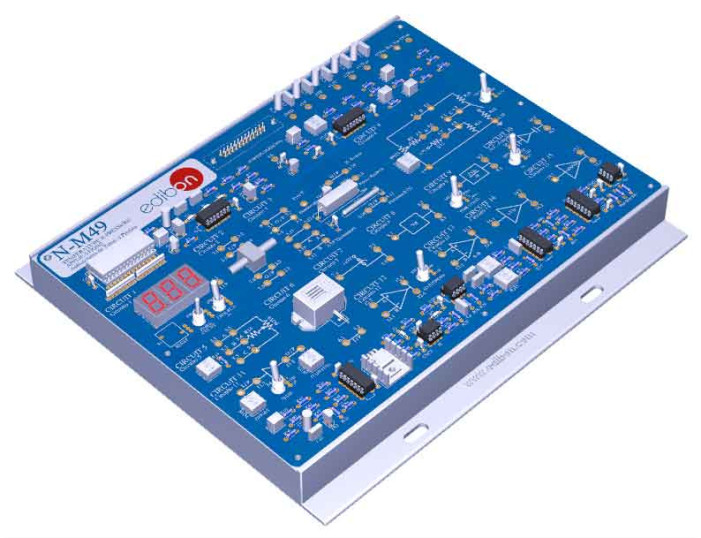

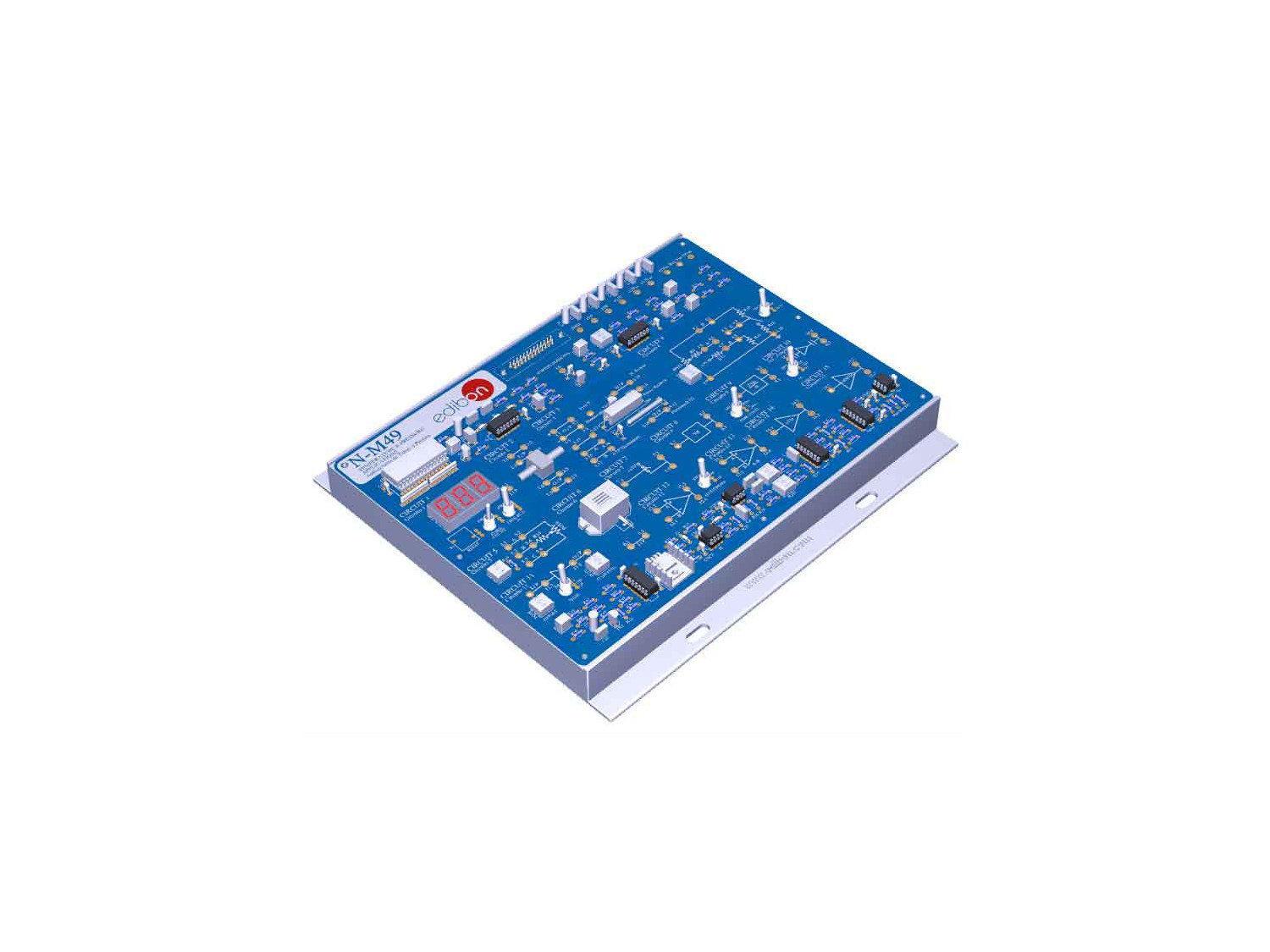

Applications of Temperature and Pressure module, "N-M49", designed by EDIBON, allows the study of these temperature and pressure transducers: operation, characteristics, etc.

일반적인 설명보기

관련 뉴스

일반적인 설명

A transducer is a device that is capable of transforming or converting a certain type of input energy into a different one at the output. Depending on the application they have, the name itself will indicate the type of conversion it performs, for example, an electromechanical transducer transforms a certain electrical signal into a mechanical one and vice versa, a mechanical one into an electrical one, etc.

Transducers have diverse applications and we can find them in industry, agriculture, internal medicine, robotics, railway industry, etc. They are used to transform information and data in chemical and/or physical contexts, and from these to obtain electrical impulses or signals or viceversa.

Temperature transducers can be: thermocouples, thermistors, IC sensors and resistance thermometers.

Applications of Temperature and Pressure module, "N-M49", designed by EDIBON, allows the study of these temperature and pressure transducers: operation, characteristics, etc.

연습 및 가이드

매뉴얼에 포함 된 가이드 실기 연습

The integrated circuit temperature transducer:

  1. Characteristics of an integrated temperature circuit.
  2. Assembly of a digital thermometer.

The platinum transducer, RTD (Resistance Temperature Detector):

  1. Characteristics of a resistance temperature transducer (RTD).

The NTC (Negative Temperature Coefficient) thermistor:

  1. Characteristics of a NTC thermistor.
  2. NTC Characteristics. Thermistor used in an alarm circuit (double thermistor).

The "K" type thermocouple temperature thermistor:

  1. Characteristics of a ‘K’ type thermocouple.

The Pressure transducer:

  1. Characteristic of a pressure transducer.
