The Wind Power Plants with Induction Generator Application, "AEL-WPPI", has been developed by EDIBON to study the wind turbines electrical performance with three-phase induction generators of squirrel cage that inject power in the network.
RELATED NEWS
General Description
The Wind Power Plants with Induction Generator Application, "AEL-WPPI", has been developed by EDIBON to study the wind turbines electrical performance with three-phase induction generators of squirrel cage that inject power in the network.
Wind turbines with induction generator have some characteristics, of great interest to the students, which will be studied working with the machine in different regimes: sub-synchronous, synchronous and super-synchronous. Depending on the working regime of the induction generator, different electrical parameters can be analyzed. To analyze these electrical parameters, the Wind Power Plants with Induction Generator Trainer has an advanced network analyzer to will show the student, among others, the following parameters: positive and negative active, reactive and apparent powers (P, Q and S), line and total power factors, line currents, phase and line voltages, current and voltage harmonics, etc.
The wind turbine induction generator is coupled to the three-phase induction motor of squirrel cage in order to simulate different wind speeds. The three-phase induction motor is controlled by mean a frequency variator to vary the wind speed. On this way, the user can simulate different wind speeds and observes the response of the electrical generator coupled to the grid.
The Wind Power Plants Induction Generator Application has a series of sensors which allow the student to measure the wind turbine speed and the applied torque for it in order to calculate electrical and mechanical parameters, through which the student will go in depth about knowledge of wind turbines with induction generator.
This application has a power factor compensation module in order to analyze the effects of the reactive energy in the induction generator and the grid.
This application has all necessary electrical and mechanical safety elements.
Exercises and guided practices
GUIDED PRACTICAL EXERCISES INCLUDED IN THE MANUAL
- Commissioning of the induction generator.
- Wiring procedure of the induction generator to the grid.
- Study of operation regimes of the wind turbines with threephase induction generator of squirrel cage.
- Analysis of the induction generators coupled to the grid in sub-synchronous state.
- Analysis of the induction generators coupled to the grid in synchronous state.
- Analysis of the induction generators coupled to the grid in super-synchronous state.
- Study of electrical parameters of the induction generator coupled to the grid in sub-synchronous state.
- Study of electrical parameters of the induction generator coupled to the grid in synchronous state.
- Study of electrical parameters of the induction generator coupled to the grid in super-synchronous state.
- Efficiency study of the induction generator comparing the injected power in the grid with the mechanical power shaft of the turbine.
- Power factor influence with the speed variations and analysis of the possible solutions to automate the regulation of the power factor.
- Active power compensation by mean capacitor banks and electrical measurement of the electrical machine response.
MORE PRACTICAL EXERCISES TO BE DONE WITH THE UNIT
- Several other exercises can be done and designed by the user.
SIMILAR UNITS AVAILABLE
5.3.3.- WIND ENERGY
EEE
The Wind Energy Unit, "EEE", contains an aerogenerator, in laboratory-scale, and is used to study the conversion of kinetic wind energy into electrical energy and to study the influence of some factors on this generation.The unit consists of a...
5.3.3.- WIND ENERGY
EEEC
Computer Controlled Wind Energy Unit
The Computer Controlled Wind Energy Unit, "EEEC", contains an aerogenerator, in laboratory-scale, and is used to study the conversion of kinetic wind energy into electrical energy and to study the influence of some factors on this generation.The...
5.3.3.- WIND ENERGY
MINI-EEEC
Computer Controlled Wind Energy Basic Unit
The Computer Controlled Wind Energy Basic Unit, "MINI-EEEC", is a small-scale unit designed to study wind energy and the influence of some factors on its generation.This unit consists of a transparent tunnel, a wind turbine with rotor to place up...
5.3.3.- WIND ENERGY
MINI-EEE
Wind Energy Basic Unit
The Wind Energy Basic Unit, "MINI-EEE", is a small-scale unit designed to study wind energy and the influence of some factors on its generation.This unit consists of a transparent tunnel, a wind turbine with rotor to place up to six blades and a...
5.3.3.- WIND ENERGY
AEL-WPT
Wind Power Application with Permanent Magnets Synchronous Generator
Considering the above, this application allows experimental investigation on the conversion of wind energy into electricity by means of a wind power generator. The system configuration is stand-alone (isolated from the grid). The equipment is...
5.1.3.1.- POWER GENERATION
AEL-EPP
Energy Power Plants Application
The Energy Power Plants Application, "AEL-EPP", has been designed by EDIBON for the study of the basic principles of operation of power plants as well as of the substations in charge of receiving the energy produced by them.The "AEL-EPP"...
5.3.3.- WIND ENERGY
AEL-SWT

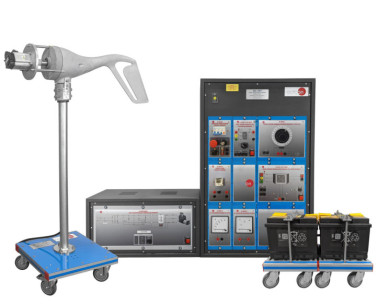

Stand-Alone Wind Turbine Application
