KNX SECURITY CONTROL TRAINING APPLICATION: FIRE, ANTI-INTRUSION, FLOODS, ETC. - AEL-KNX-SFC

INNOVATIVE SYSTEMS

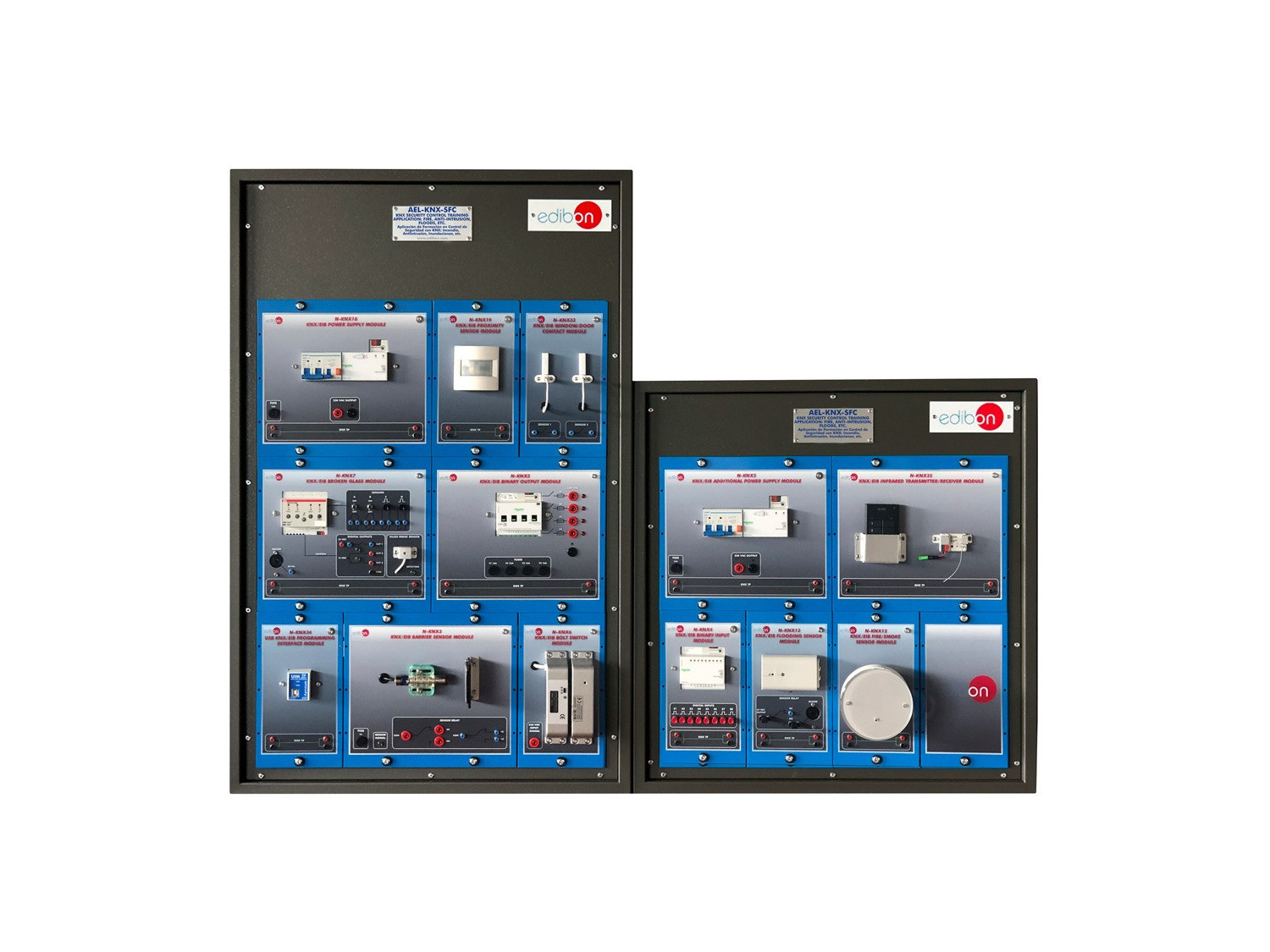

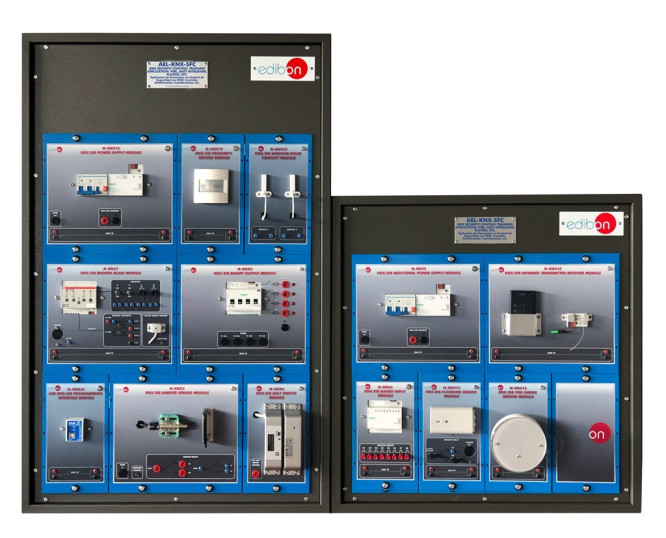

The AEL-KNX-SFC is a device designed to provide hands-on experience and knowledge of KNX wiring practices specific to security systems. This unit is designed for educational and professional purposes, allowing users to study and understand the wiring, programming and commissioning techniques associated with the integration of KNX technology in security related applications.

See general description
